Automatic Paper Box Making Machine Box Erecting Forming Machine 200 Pieces/min

200pcs/min Automatic Paper Box Making Machine

Introduction

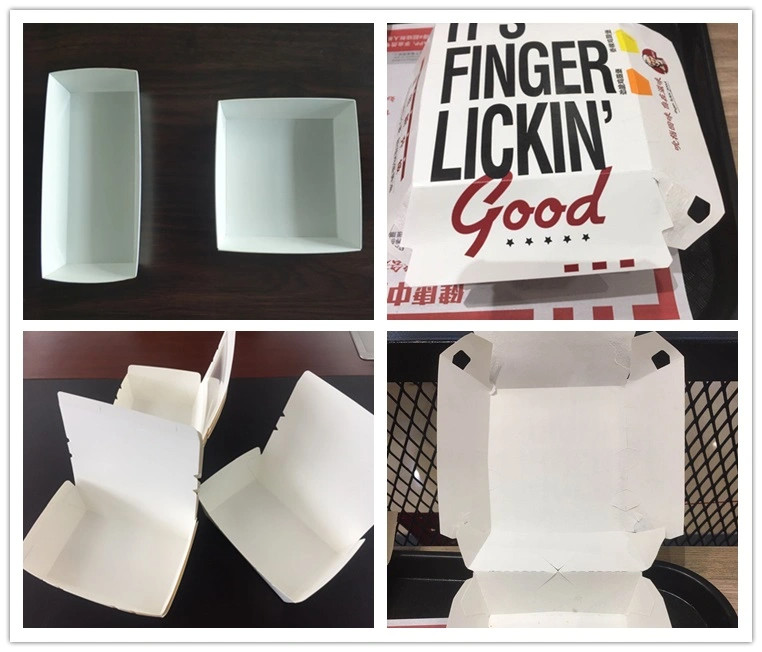

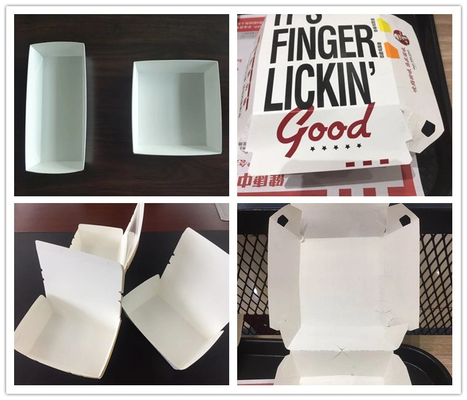

Ecoo lunch box forming machine is designed according to European industrial standard. Initially developed in China, the products developed in China, the products have achieved the CE certification and have been sold to many countries in the world. With high quality and efficiency, it is an ideal choice for you to produce single PE coated or double PE coated paper lunch box. Adopting mechanical device to control the forming structure.

Specification

Machine type

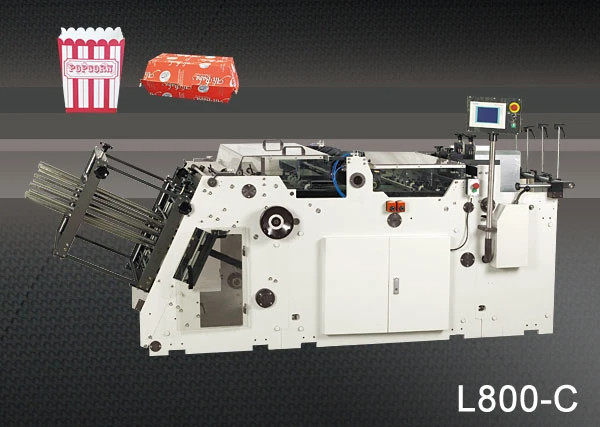

L800-C

Blank length (L)

100mm-450mm

Blank width (B)

100mm-630mm

Height of side flaps (H)

15mm-250mm

Height of side flaps+lid (HI)

50mm-250mm

Conicity

5°-40°

Volage

380V/50HZ

Covering Area

4.0M*1.2M

The total Power

L800-A: 8KW, L800-C: 5KW

Maximum Production Speed

200 pieces/min

Air Pressure

0.6Mpa(Dry and clean compressed air)


Packing
2980mm*1560mm* 1320mm, N.W.: 1500KG, G.W.: 1600KG
1310mm*1170mm*900mm, N.W.: 250KG, GAN.: 290KG

Materials Paper Board 200-600gsm;

Corrugated board paper with thickness not exceed 1.5MM

The differences between L800-A and L800-C:
1. L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A is easier to change different box than L800-C.
2. L800-A is better to make eight corners boxes than L800-C.
