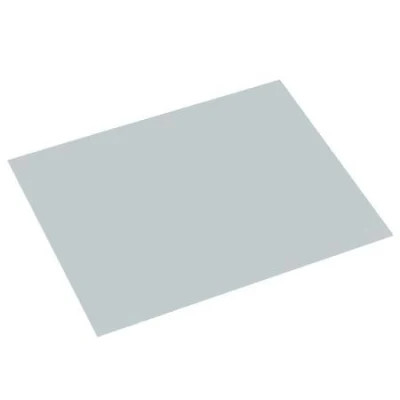

Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly

1000 Square Meters
MOQ
Negotiable
Price
Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Processless Thermal Aluminum CTP Plate
Application: High Grade Commercial And Newspaper Printing
Substrate: Electrolyte Graining And Anodized AL Substrate
Spectrum Scope: 800-850nm
Low-energy Imaging: 130~150mJ/sqm
Thickness: 0.15mm / 0.30mm
Processing: Without Processing,directly On Press
Run Length: 100,000 Impressions
The Paper Number Of Start Up: <50 Sheets
High Light:

0.30mm CTP Printing Plates

,

Processless Offset Printing CTP Plate

,

Thermal Aluminum CTP Offset Printing Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 45-60Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000, 000sqm/Year
Product Description

Processless Thermal CTP Plate Model: ECOO-G


ECOO-G thermal plate (develop on press) environmental-friendly processless printing plate.
It's chemistry free, environment-friendly, as same as Sonora XP and Agfa Azura!
-Run on press machine directly after CTP exposing, no need chemistry processing
-Saves cost of labor, water treatment and developer tank



Product Description



1. INTRODUCTION OF ECOO-G

-Run length: 100,000 impressions
-Suitable for sheet-fed offset press or high speed rotary offset press
-Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions
-Unsuitable to improve run length by baking plates

2. CHCARACTERISTIC OF ECOO-G
-Negative non-ablation photosensitive system
-Compatible with the dominant devices in the market
-Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter
-Good dot reproduction, stable performance, wide processing latitude
-Long stability of latent image, can be stored at least a week after plate-making
-High quality aluminum substrate, professional coating formulation

3. RECOMMENDES APPLICATION TO PRESS PROCEDURES OF ECOO-G

1. Clean all the inks on the blanket;
2. Start the press machine, apply the water roller, run 30-40 seconds;
3. Apply the ink rollers 20-30 seconds;
4. Apply the paper and start print.

Remark: If operate step 2 and 3 longer, paper will be wasted less.


Specification


Model ECOO-G

Plate Type Thermal-negative type

Application High grade commercial and newspaper printing

Substrate Electrolyte graining and Anodized AL substrate

Thickness 0.15mm / 0.30mm

Maximum short grain width Maximum width 1280 mm

Spectrum scope 800-850 nm

Photosensitive wave length 830 nm

Platesetter Various dominant thermal platesetters in the market

Coating color Grey

Low-energy imaging 130-150 mj/ cm²

The period of latent image stabilization ≤7 days

Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture

The paper number of start-up <50 sheets

Safety light 4 hours under yellow light; 1 hour under fluorescent lamp;
Direct exposure under natural light is safe but not recommended.

Processing Without processing, directly on press

Run Length 100,000 impressions Actual run length depends on printing conditions

Shelf life 12 months under recommended condition

Transportation Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity

Storage Recommended condition: 18ºC-24ºC, 40%-50% RH.



Model Processless plate
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Spectrum scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy imaging 130-150 mj/ m²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <50 sheets
Safety light

4 hours under yellow light; 1 hour under fluorescent lamp;

Direct exposure under natural light is safe but not recommended.

Processing Without processing, directly on press
Run Length 100,000 impressions, actual run length depends on printing conditions
Baking No recommended
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 830 nm
Coating color Grey
Shelf life 12 months under recommended condition
Transportation

Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity

Storage Recommended condition: 18ºC-24ºC, 40%-50% RH.


   Comparing With The Plate Of Kodak Sonora XP



Features ECOO-G Kodak
Sonora XP
Sensitive wavelength(nm) 800-850 800-850
Coating color Light green Light green
Sensitivity (mj/cm2 ) 150 150
Exposure in safe light White light 1 hour; yellow light 24 hours White light 1 hour; yellow light 24 hours
After image contrast Can be spotted by eyes,
but auto punching machine cannot recognize it
Can be spotted by eyes, but
auto punching machine cannot recognize it
Imaging device Normal thermal CTP device 1-99% @ 200lpi Normal thermal CTP device 1-99% @ 200lpi
Resolution 1-99% @ 200lpi
(dependent on CTP capability)
1-99% @ 200lpi
(dependent on CTP capability)
Run-length 100,000 100,000
Storage 12 month (under recommend environment) 12 month (under recommend environment)



Applied parameters In Imaging Device



Data Kodak
trendsetters
LOTTEM
400(TH1.7)
MAGNUS 400 Screen 8600S
Laser power 15- 17W 300-320mw 19.5-21.5W 80-90 %
Drum speed 250-300rpm 850-900rpm 400-450rpm 800-900rpm
Resolution Customized Customized Customized Customized
Parameter that Focus/ Focus/ Focus/ Focus/
need set up Zoom Zoom Zoom Zoom

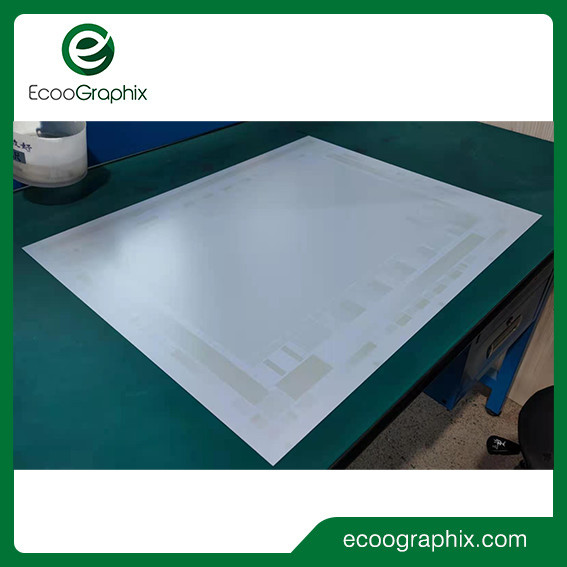

Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly 0

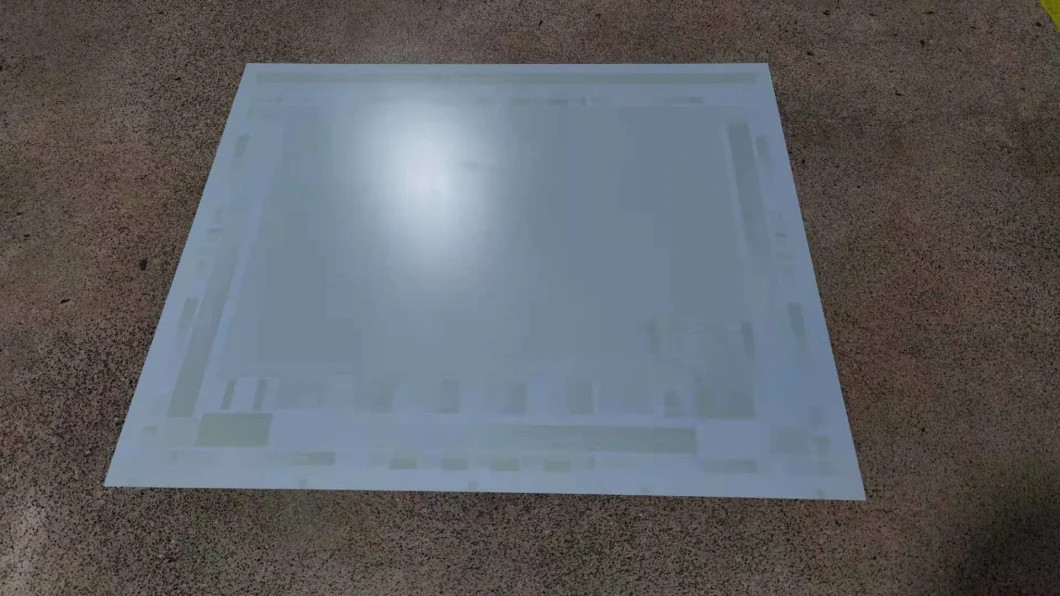

Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly 1



Producing and Packing



Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly 2

Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly 3



Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly 4



Workflow




 Processless Thermal Aluminum CTP Plate For Offset Printing Ecology Friendly 5





FAQ




Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.



Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
