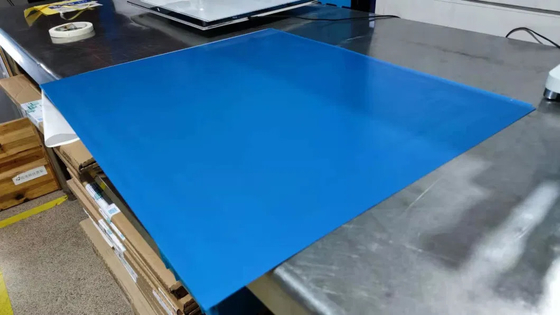

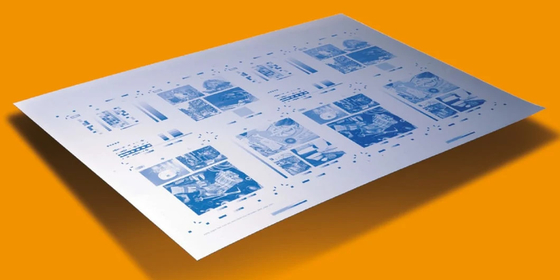

Double Layer UV/Ctcp Aluminum CTP Plate
- Positive writing CTCP (conventional) plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening
- Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions.
- Very Quick turn around time on press
- Robust coating and consistent reliablity
- Compatible with most developers
- Premium quality of dot reproduction and long run length
No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing
Newspaper printing, commercial printing, and package printing
Electrochemically Grained and Anodized Aluminum
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1350 mm
Any positive plate developer or our own developer
Length of Run
200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked.
Plate setters Capability
All the main brands violet CTP in market, laser power no less than 30 mw
Standard 1050 Alloy
50-65uj/cm²(based on plate setter and developing condition)

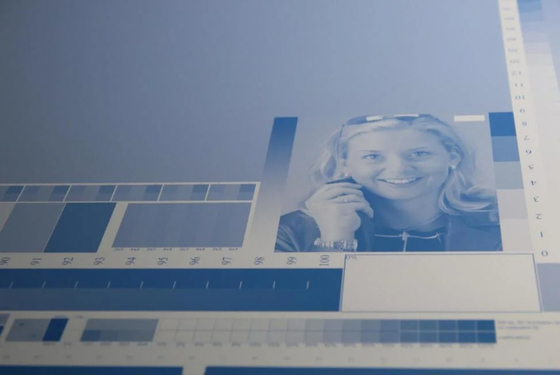

1-99% @ 200 LPI & 20 uFM
12 months under recommended storage conditions
Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat.
High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate
|Positive CTCP Plate(Double Layer)
|High quality commercial and newspaper printing
|Electro chemically Grained and Anodized lithographic Aluminum
|0.15,0.20, 0.25,0.30, 0.40 (mm)
|Maximum short grain width
|Maximum width 1280 mm
|Length of Press Runs
|Unbaked: 80000 to 100,000 impressions UV INK: About 50,000 impressions
|Luscher , Basysprint, Cron or EcooGraphix UV series CTCP machine
|50 - 70 mJ/cm²
|400 - 410 nm - UV Laser
|2 - 99% LPI 200
|Any Positive plate developer or our own developer
|23°C +/- 2°C
|25 - 30 sec
|0.80 - 1.20 m/min
|Storage and handling
|Handle under yellow safelight (UV free)
|12 months under recommended storage conditions
|Storage and handling
|Stored in a cool and dry environment, away from excessive cold, heat and humidity.
Producing and Packing
Normally 50 pcs are packed together in a carton with wood surroundings.
Cartons in same size are packed in a carton with binding and protective layers.
EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.
We offer top quality and competitive products and service on following categories:
1) Thermal CTP and CTCP equipments (all formats)
2) Thermal CTP and CTCP plates (single layer, double layer, and non process plates)
4) Other graphics arts supply
Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
