Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum

500SQM
MOQ
Negotiable
Price
Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum
Features Gallery Product Description Request A Quote
Features
Specifications
Product Nanme: Double Layer Ctcp/UV Plate
Plate Type: Positive CTCP Plate (Double Layer)
Application: High Quality Commercial And Newspaper Printing
Substrate: Electro Chemically Grained And Anodized Lithographic Aluminum
Gauge: 0.15, 0.20, 0.25, 0.30, 0.40 (mm)
Maximum Short Grain Width: Maximum Width 1280 Mm
Length Of Run: Unbaked: 80000 To 100,000 Impressions
Exposure Energy: 50 - 70 MJ/cm²
Spectral Sensitivity: 400 - 410 Nm – UV Laser
Resolution: 2 - 99% LPI 200
Photosensitive Wave Length: 405nm
Shelf Life: 12 Months Under Recommended Storage Conditions
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE/ISO
Model Number: ECOO-CTCP-D
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 2000, 000sqm/Year
Product Description

Double Layer Ctcp/UV Plate



Product Description



1. Application

EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink.
It is alsocompatible with an ordinary ink.
It is use for long run length high grade offset commercial and newspaper printing.





2. Features

- Positive writing CTCP (conventional) plate
- Double layers system
- Made with high grade aluminum from Europe
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 80,000 impressions
- UV Ink up to 50,000 impressions
- Ability to print both AM and FM screening


3. Advantages

- Resist UV-ink; workable with both normal ink and UV ink
- Mature product, good stability and wide processing latitude
- Long run length with non-ablative coating
- Being adaptive to most of platesetters, processors and solutions





4. Benefits

-Very Quick turn around time on press
-Robust coating and consistent reliablity
-compatible with most developers
-premium quality of dot reproduction and long run length

Specification



Model ECOO-CTCP-D

Plate Type No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing

Application Newspaper Printing, commercial printing, and package printing

Substrate Electrochemically Grained and Anodized Aluminum

Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width Maximum width 1350 mm

Developer Any positive plate developer or our own developer

Length of Run
200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked.

Plate setters Capability All the main brands violet CTP in market, laser power no less than 30 mw

Aluminum Standard 1050 Alloy

Exposure energy 50-65uj/ cm²(based on plate setter and developing condition)

Developing time 20±3 sec

Developing Temperature 28±2ºC

Spectral Sensitivity 405 nm

Resolution 1-99% @ 200 LPI & 20 uFM

Shelf life 12 months under recommended storage conditions

Storage and handing Stored in a cool and dry environment, away from excessive cold, heat.

Product highlight High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate



General Information
Plate Model ECOO-CTCP-D
Plate Type Positive CTCP Plate(Double Layer)
Application High quality commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Plate Thickness 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Length of Press Runs Unbaked: 80000 to 100,000 impressions UV INK: About 50,000 impressions
Exposing
Plate setters Luscher , Basysprint, Cron or EcooGraphix UV series CTCP machine
Exposure energy 50 - 70 mJ/cm²
Spectral Sensitivity 400 - 410 nm - UV Laser
Resolution 2 - 99% LPI 200
Image color Blue
Developing
Developer Any Positive plate developer or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handling
Safelight Handle under yellow safelight (UV free)
Shelf Life 12 months under recommended storage conditions
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat and humidity.

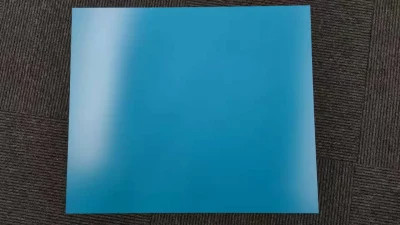

Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum 0

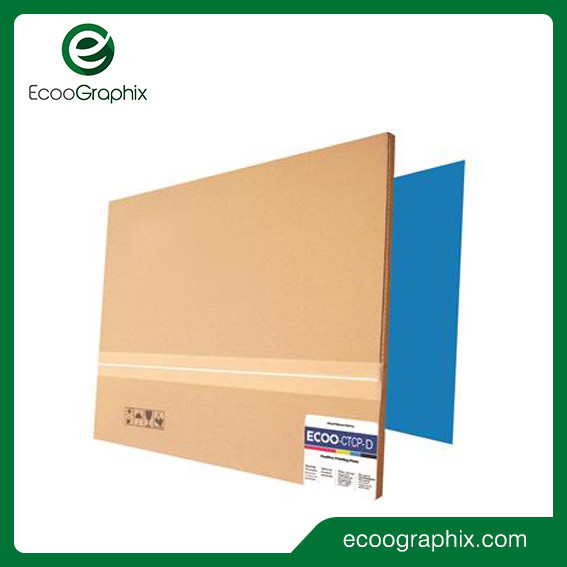

Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum 1

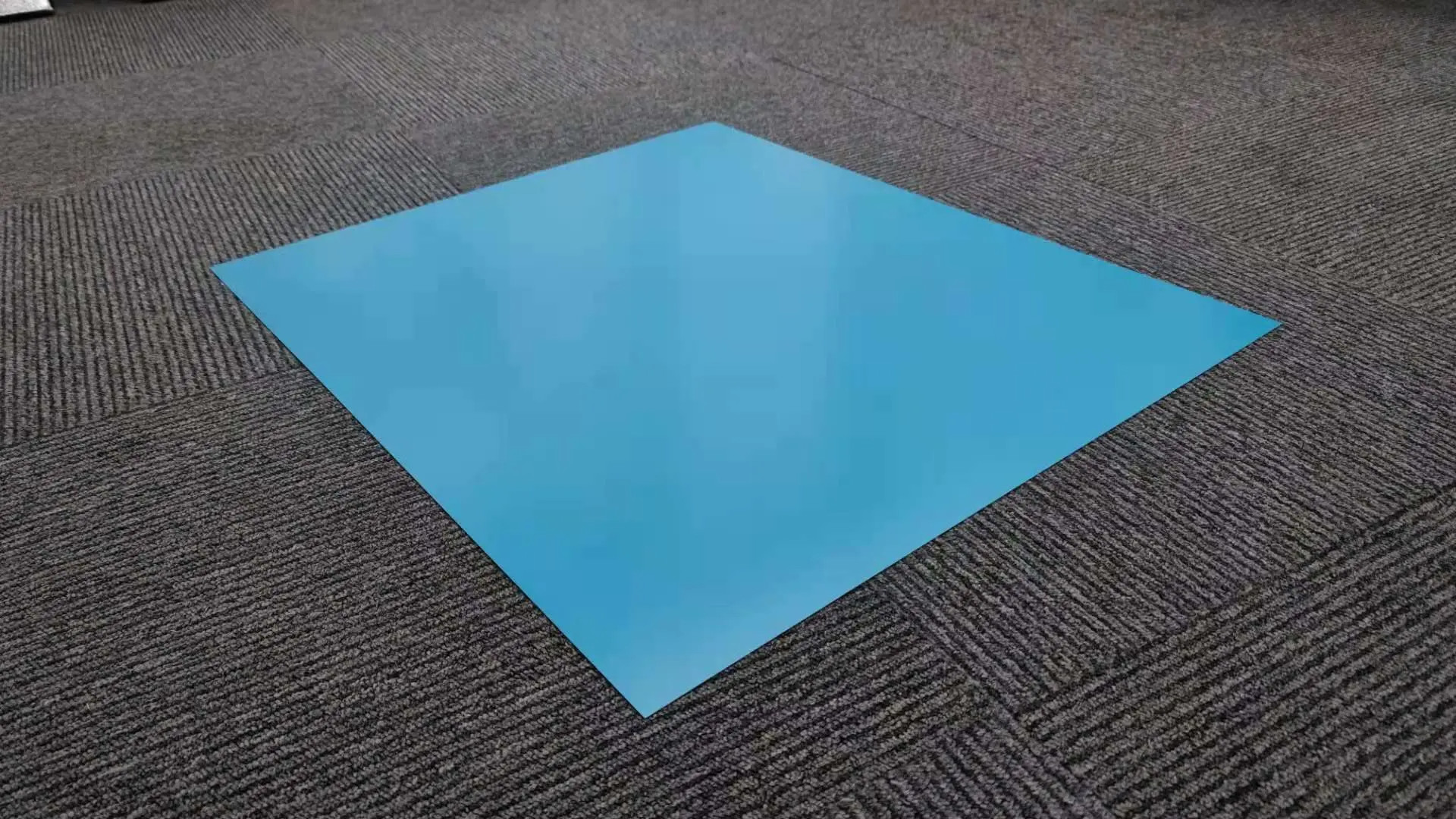

Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum 2

Producing and Packing


Normally 50 pcs are packed together in a carton with wood surroundings.
Cartons in same size are packed in a carton with binding and protective layers.

Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum 3

Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum 4

Double Layer Ctcp/UV Plate UV-Resistant Offset Printing Aluminum 5


About US


EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.

We offer top quality and competitive products and service on following categories:

1) Thermal CTP and CTCP equipments (all formats)


2) Thermal CTP and CTCP plates (single layer, double layer, and non process plates)

3) Processors

4) Other graphics arts supply


FAQ



Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.



Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
