Name: Negative Violet Photopolymer Digital Offset Printing Plate
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-V
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Plate Type: Low Chemistry Violet Plate, Negative Printing

Length Of Run (Unbaked): 200,000 Impressions

Length Of Run (Baked): 500,000 Impressions

Exposure Energy: 50-60 μj/ Square Centimeter

Resolution: 150lpi (2-98%), Under1800dpi, 25μm Line Can Be Produced.

Application: Newspaper Printing

Developer: Developing Gum

Developing Time: 20 +/-3 Sec

Highlight:

Photopolymer Digital Offset Printing Plate

Negative Digital Offset Printing Plate

Violet Digital Offset Printing Plate

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-V

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 1,500,000 Sqm Per Year

Gallery

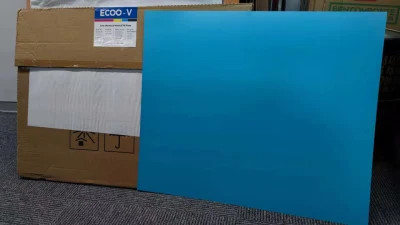

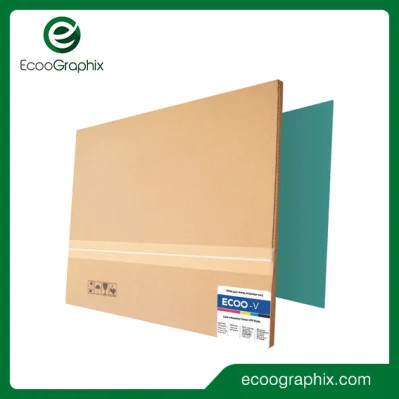

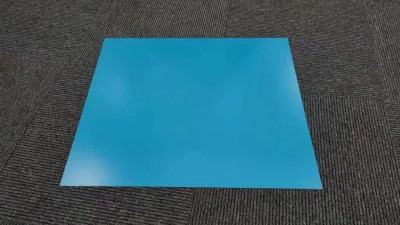

Negative Violet Photopolymer Digital Offset Printing Plate

Product Description

EcooGraphix Low-Chemistry Violet Offset CTP Plate Aluminum Plate

EcooGraphix Low-chemical Violet CTP Plate Ecoo-V can be used for newspaper printing.

It is an environmental friendly product. Compared with normal Violet CTP plate, Ecoo-V keeps original photosensitive features and printing compatibility.

Negative Violet Photopolymer Digital Offset Printing Plate 0

Model	ECOO-V
Plate Type	Low chemistry violet plate, negative printing
Application	Newspaper Printing
Substrate	Electro chemically grained and Anodized aluminum
Gauge	0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1320 mm
Developer	Developing gum
Length of Run	Unbaked: 200,000 impressions; Baked: 500,000 impressions(dependent upon image resolution, press, press chemical, ink and paper conditions)
Plate setters Capability	All the main brands violet CTP in market, laser power no less than 30 mw
Aluminum	Standard 1050 Alloy
Exposure energy	50-60 μj/ cm²(based on plate setter and developing condition)
Developing time	20±3 sec
Developing Temperature	28±2 ºC
Spectral Sensitivity	405 nm
Resolution	150lpi (2-98%), under 1800dpi, 25μm line can be produced.
Preheat	95-121 ºC
Brush Speed	100 rpm
Shelf life	12 months under recommended storage conditions
Storage and handing	Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 15_28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m' Open the box under yellow light. Sealed the box with remained plate to avoid moisture.

Features

Simplifying the processing, only 3 steps including preheating, developing, and drying.

Redusing chemical consuption, saving water.

Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer.

It makes print wuality more stable.

Structure And Making

Negative Violet Photopolymer Digital Offset Printing Plate 1

Plate Structure

Plate Making

Customer's Feedback

Producing and Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Negative Violet Photopolymer Digital Offset Printing Plate 4

Negative Violet Photopolymer Digital Offset Printing Plate 5

Negative Violet Photopolymer Digital Offset Printing Plate 6

Negative Violet Photopolymer Digital Offset Printing Plate 7

Negative Violet Photopolymer Digital Offset Printing Plate 8

Negative Violet Photopolymer Digital Offset Printing Plate 9

Negative Violet Photopolymer Digital Offset Printing Plate 10

Certificates

Negative Violet Photopolymer Digital Offset Printing Plate 11

Negative Violet Photopolymer Digital Offset Printing Plate 12

FAQ

Q1: Can I get the sample ?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight ?

A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready ?

A: It usually takes about 3 days to prepare the sample.

Q4: Can I visit your factory ?

A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
