Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity

1000 Square Meters
MOQ
Negotiable
Price
Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity
Features Gallery Product Description Request A Quote
Features
Specifications
Run Length: 200,000 Impressions Unbaked; 70,000 Impressions With UV Ink Unbaked; 1,000,000 Impression Baked
Exposure Energy: 50-65uj/cm² (based On Plate Setter And Developing Condition)
Spectral Sensitivity: 405 Nm
Resolution: 1-99% @ 200 LPI & 20 UFM
Developing Time: 20±3 Sec
Gauge: 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Shelf Life: 12 Months Under Recommended Storage Conditions
Developer: Any Positive Plate Developer Or Our Own Developer
Highlight:

Double Layer CTCP printing plates

,

Aluminium offset printing plates

,

Positive CTCP plates with warranty
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-CTCP-D
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description

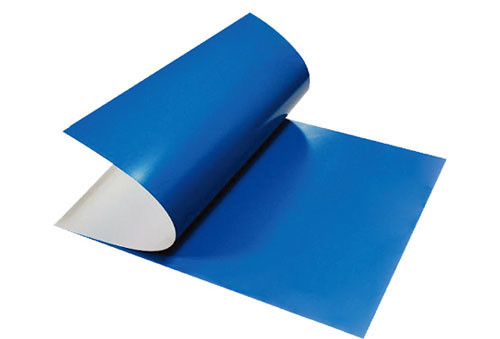

Double Layer Positive CTCP Aluminium Offset Printing Plates
High Sensitivity Positive CTCP Aluminium Offset Printing Plates
EcooGraphix Positive CTCP Plate (Double Layer) are made for UV based ink. It is also compatible with ordinary ink. It is used for long run length high grade offset commercial and newspaper printing.
Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 0
Product Characteristics
Features
  • Positive writing CTCP (conventional) plate
  • Double layers system
  • Made with high grade aluminum from Europe
  • Wide adaptability for different plate setter brands
  • Non-ablative coating
  • Ability to print both AM and FM screening
Advantages
  • Resist UV-ink; Workable with both normal ink and UV ink
  • Mature product, good stability and wide processing latitude
  • Long run length with non-ablative coating
  • Being adaptive to most of platesetters, processors and solutions
Benefits
  • Very Quick turn around time on press
  • Robust coating and consistent reliability
  • Compatible with most developers
  • Premium quality of dot reproduction and long run length
Technical Specifications
Model ECOO-CTCP-D
Plate Type No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing
Application Newspaper printing, Commercial printing, and Package printing
Substrate Electrochemically Grained and Anodized Aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40 (mm)
Maximum shortgrain width Maximum width 1350 mm
Developer Any positive plate developer or our own developer
Length of Run 200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked
Plate setters Capability All the main brands violet CTP in market, laser power no less than 30 mw
Aluminum Standard 1050 Alloy
Exposure energy 50-65uj/cm² (based on plate setter and developing condition)
Developing time 20±3 sec
Developing Temperature 28±2 ℃
Spectral Sensitivity 405 nm
Resolution 1-99% @ 200 LPI & 20 uFM
Shelf life 12 months under recommended storage conditions
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat
Product highlight High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate

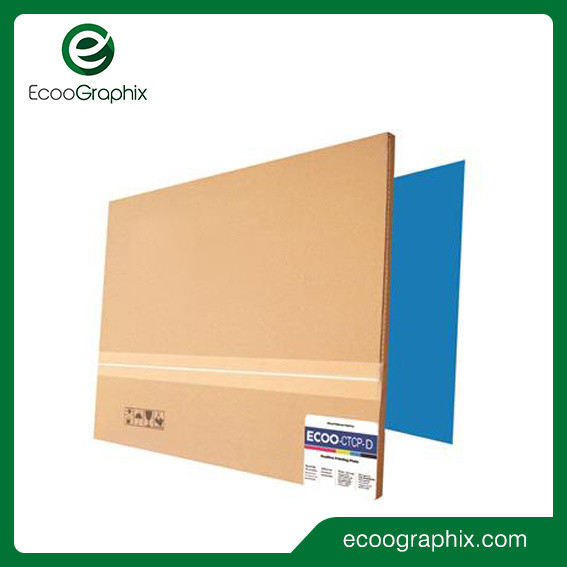

Production and Packaging
From producing to delivery, we make every detail very carefully to guarantee the good product quality and service to customers.
Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 1 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 2 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 3 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 4 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 5 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 6 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 7 Double Layer Positive CTP Offset Printing Plates with 200K Impressions Unbaked and 405nm Spectral Sensitivity 8
Frequently Asked Questions
Q1: Can I get the sample?
We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory?
You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
