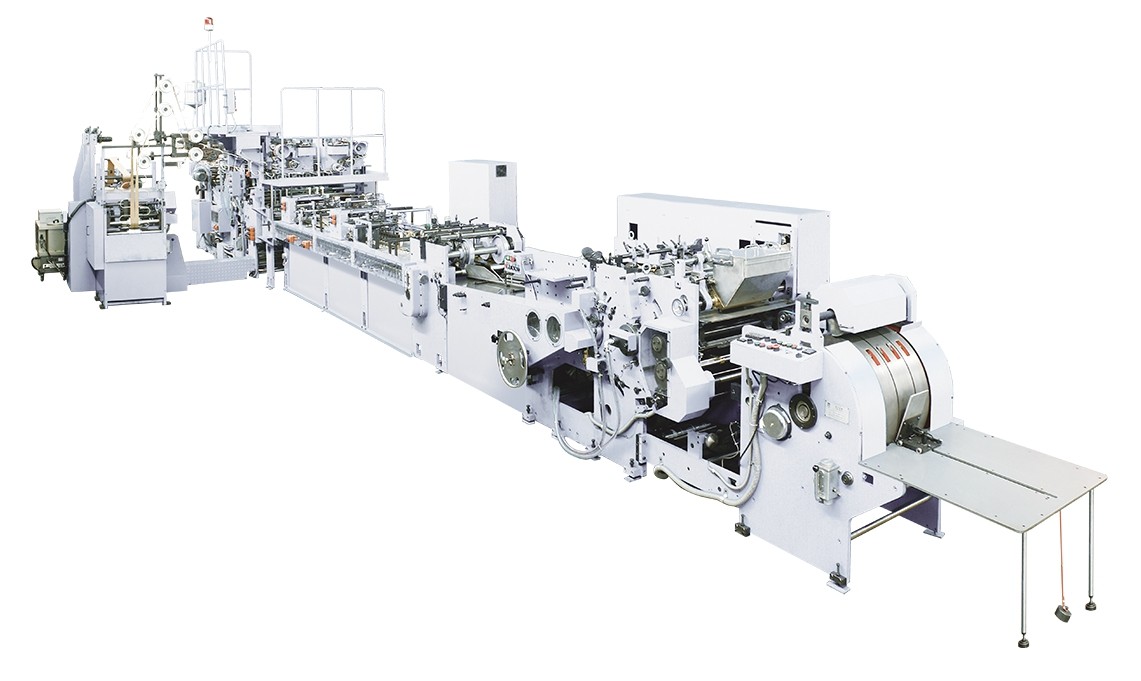

High Speed Automatic Square Bottom Paper Bag Forming Machine
| Bag Making Machine | ||||
| Model | Ecoo-22KH | Ecoo-35KH | Ecoo-45KH | Ecoo-50KH |
| Bag Width(mm) | 150 ~ 260 | 180 ~ 350 | 220 ~ 450 | 280 ~ 500 |
| Bottom Width(mm) | 60 ~ 130 | 70 ~ 160 | 70 ~ 170 | 80 ~ 230 |
| Tube Length(mm) | 215 ~ 395 | 280 ~ 540 | 320 ~ 560 | 400 ~ 740 |
| Sheet Width(mm) | 490 ~ 770 | 530 ~ 1050 | 610 ~ 1260 | 750 ~ 1260 |
| Sheet Length(mm) | 265 ~ 445 | 340 ~ 600 | 380 ~ 620 | 460 ~ 800 |
| Cardboard Length(mm) | 133.4 | 152.4 | 188.4 | 228.6 |
| Cardboard Width(mm) | 80 ~ 90 | 90 ~ 100 | 90 ~ 100 | 90 ~ 100 |
| Rope Spacing(mm) | 66.7 | 76.2 | 94.2 | 114.3 |
| Rope Height(mm) | 160 ~ 180 | 170 ~ 185 | 170 ~ 185 | 170 ~ 190 |
| Flip Width(mm) | 40 ~ 50 | 40 ~ 60 | 40 ~ 60 | 40 ~ 60 |
| Power Consumption (kw) | 20 | 27 | 30 | 34 |
| External Size(mm) | 2050W | 2050W | 2320W | 2320W |
| 14120L | 14680L | 14680L | 17870L | |
| 2700H | 2710H | 2710H | 3160H | |
| Machine Size(mm) | 1340W | 1340W | 1340W | 1340W |
| 5410L | 5410L | 5410L | 5410L | |
| 2690H | 2690H | 2690H | 2690H | |
| Max. Speed (Bags/min) | 70 | 70 | 70 | 60 |
Bag types and its making machine
Machine Sections And Function
|
HANDLE MAKING MACHINE
This machine puts a handle rope between two pieces of paper and fixes it together with hot melt glue as a hand grip. The handle material can be twisted paper rope,twisted p.p.rope,acrylic resin rope,etc. The handle making machine is installed parallel
|
HANDLE(CARDBOARD) PASTING UNIT |
PUNCHING UNIT |
||
|
||||
|

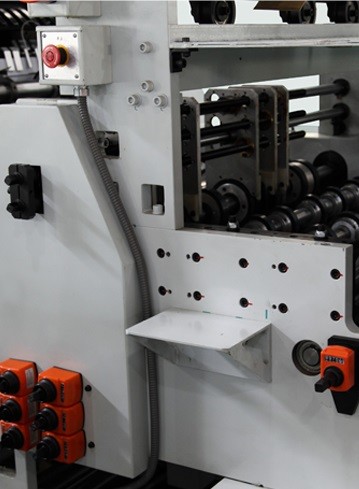

Quick Adjustment Device
Organ line adjustment and pressure adjustment are controlled by a digital display, greatly reducing the time for adjusting and improved production efficiency.
|

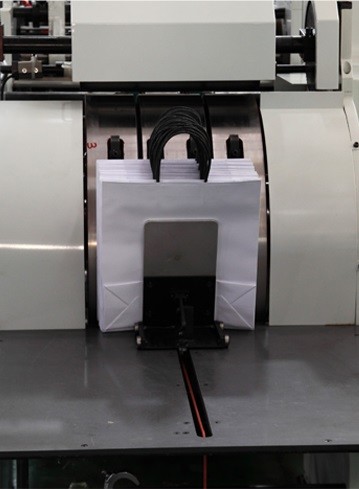

Automatic Collecting Device It can automatically calculate the quantity and more convenient to collect bags |
Bottom Opening cylinder Only needs to adjust one side of the cylinder, the other two sides will be adjusted automatically. Greatly reduced adjustment time and improved production efficiency. |
||
Some Tips For Application
1. Please use proper paper rolls for bag making.
2. Too much dried paper and paper with static electricity cannot be used. Paper with curl cannot be used (for sheet fed machines). Too much twisted cord or soft code cannot be used.
3. In case of using paper with laminated PP film, laminated layer (thickness) should be uniformed.
4. Our recommended specifications of glue at each gluing section should be used(to be controlled in accordance with ambient temperature and humidity).
5. Bag Width and Bottom width have limitation according to combination.
6. Longitudinal glue position is on bag face and 25-30mm gluing space is necessary (optionally inner gusset gluing is possible).
7. In case of using full printing rolls or PP laminated paper, basically bottom gluing part and longitudinal gluing part should be left. In this case, appox. 7mm print overlap or lamination overlap is necessary.
8. Production capacity depends on paper quality, paper weight, with or without print, glue quality, cord quality, bag size, operating environment etc.
9. Specifications are subject to change without notice.
Producing And Packaging
Certifications
FAQ
1. Payment term?
Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.
2. Installation and after service?
Conditional and prior to mutual agreement between the seller and the buyer.
3. Warranty?
12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.
4. Package?
Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
