300gsm Square Bottom Paper Bag Making Machine with Reinforced Card
EcooGraphix is a professional supplier of eco-friendly paper processing machines and paper products. Following the enterprise development mission of “Create Value for Customers”.

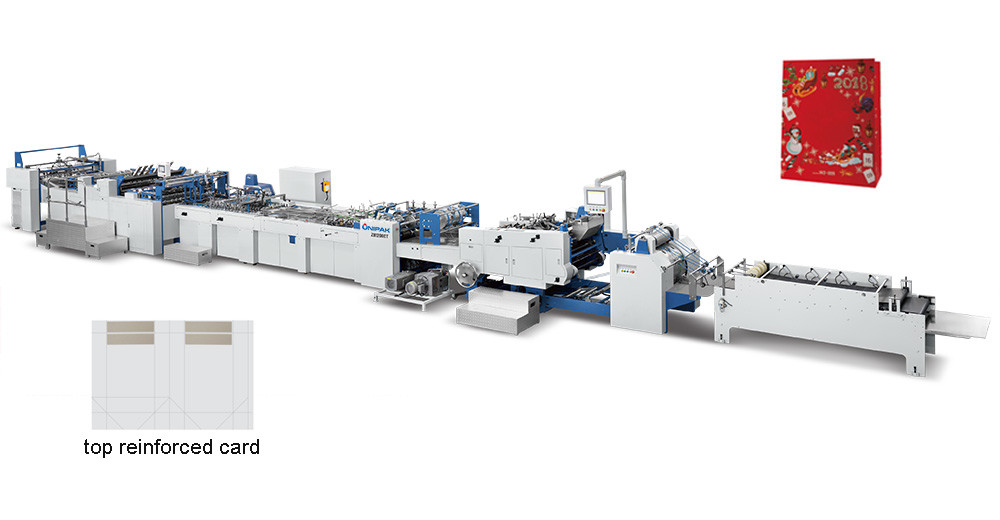

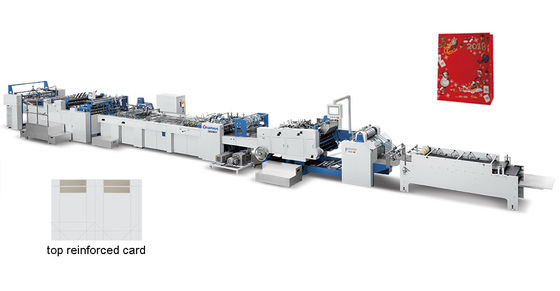

Ecoo 450TB-S processes the paper or printed paper sheets as raw materials, automatically conveyed through the machine to complete the functions of top card pasting ,top folding, tube forming and gluing, hole punching, bottom folding, placing the bottom reinforced card and pasting, bottom sealing and gluing, and finally outputting a complete square-bottom paper bag machine (excluding processing the handle rope).
The TB-S series is has a straight line structure both for pasting the cardboard at the bag mouth and pasting the cardboard at the bag bottom, which is flexible placement and save space.
| MODEL | KL-220TB-S | KL-350TB-S | KL-450TB-S |
| Paper Bag Width |
110-240mm (4.33-9.44inch) |
180-350mm (7.08-13.78inch) |
200-450mm (7.87-17.72inch) |
|
Paper Bag Bottom Width |
60-120mm (2.36-4.75inch) |
80-160mm(3.14-6.29inch) | 90-170mm(3.54-6.69inch) |
| Paper Sheet Width |
380-700mm (14.96-27.56inch ) |
600-1040mm (23.62-40.94inch) |
600-1240mm (23.62-48.81inch) |
| Paper Sheet Length |
240-440mm (9.44-17.32inch) |
290-530mm (11.41-20.86inch) |
320-600mm (12.25-23.62 inch) |
|
Paper Weight (Note: Above 200g/ m² need to be die-c ut ) |
a.kraft paper:100- 200g/m² b.art paper+PP film laminating:120- 230g/m² |
a.kraft paper:120-250g/m² b.art paper+PP film laminating:157-230g/m² c.white cardboard+PP film laminating:150-250g/m² d.grey cardboard+PP film laminating:150-300g/m² |
a.kraft paper:120-250g/m² b.art paper+PP film laminat ing:157-230g/m² c.white cardboard+PP film laminating:150-250g/m² d.grey cardboard+PP film laminating:150-300g/m² |
| Top Card Thickness | 220-450g/m² | 220-450g/m² | 220-450g/m² |
| Top Card Width | 100-230mm | 170-340mm | 190-440mm |
| Top Card Lenght | 20-50mm | 20-50mm | 20-50mm |
|
Max. Bottom Card L*W |
110*230mm | 144*344mm | 170*440mm |
|
Min. Bottom Card L*W |
50*100mm | 64*174mm | 74*194mm |
|
Bottom Card Thickn ess |
150-400g/m² | 150-450g/m² | 150-450g/m² |
| Hole Pitch | 60/100mm | 80/120mm | 100/140mm |
| Hole Diameter | Φ4,Φ5,Φ6 | Φ4,Φ5,Φ6 | Φ4,Φ5,Φ6 |
| Working Speed | 40-75pcs/min. | 40-70pcs/min. | 40-70pcs/min. |
| Glue Type |
cold glue+hotmelt glue |
cold glue+hotmelt glue | cold glue+hotmelt glue |
| Total Power | 30KW 380V 50HZ | 32KW 380V 50HZ | 35KW 380V 50HZ |
| Machine Weight | 14T | 15T | 17T |
| Machine Dimension | 23000*1930*1920mm | 23000*2100*1920mm |
