1060mm 80g Sheet Paper Waterbased UV Varnish Spot Coating Machine

1SET
MOQ
Negotiable
Price
1060mm 80g Sheet Paper Waterbased UV Varnish Spot Coating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Laminating Sheet (mm): 730X1060mm
Min Sheet Size: 310x406mm
Power: 44KW
Machine Speed: About 9000s/h
Machine Weight (kgs): 8500KGS
Condition: New
Application: Water-based Varnish, UV Varnish
Warranty: One Year
Configurations: Feeder, Coating Unit,UV Curing And IR Drying,Paper Delivery
Highlight:

Spot Coating UV Varnishing Machine

,

Posters UV Varnishing Machine

,

Auto Feed UV Varnishing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: CE
Model Number: ECOO SD1060
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45DAYS
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Product Description

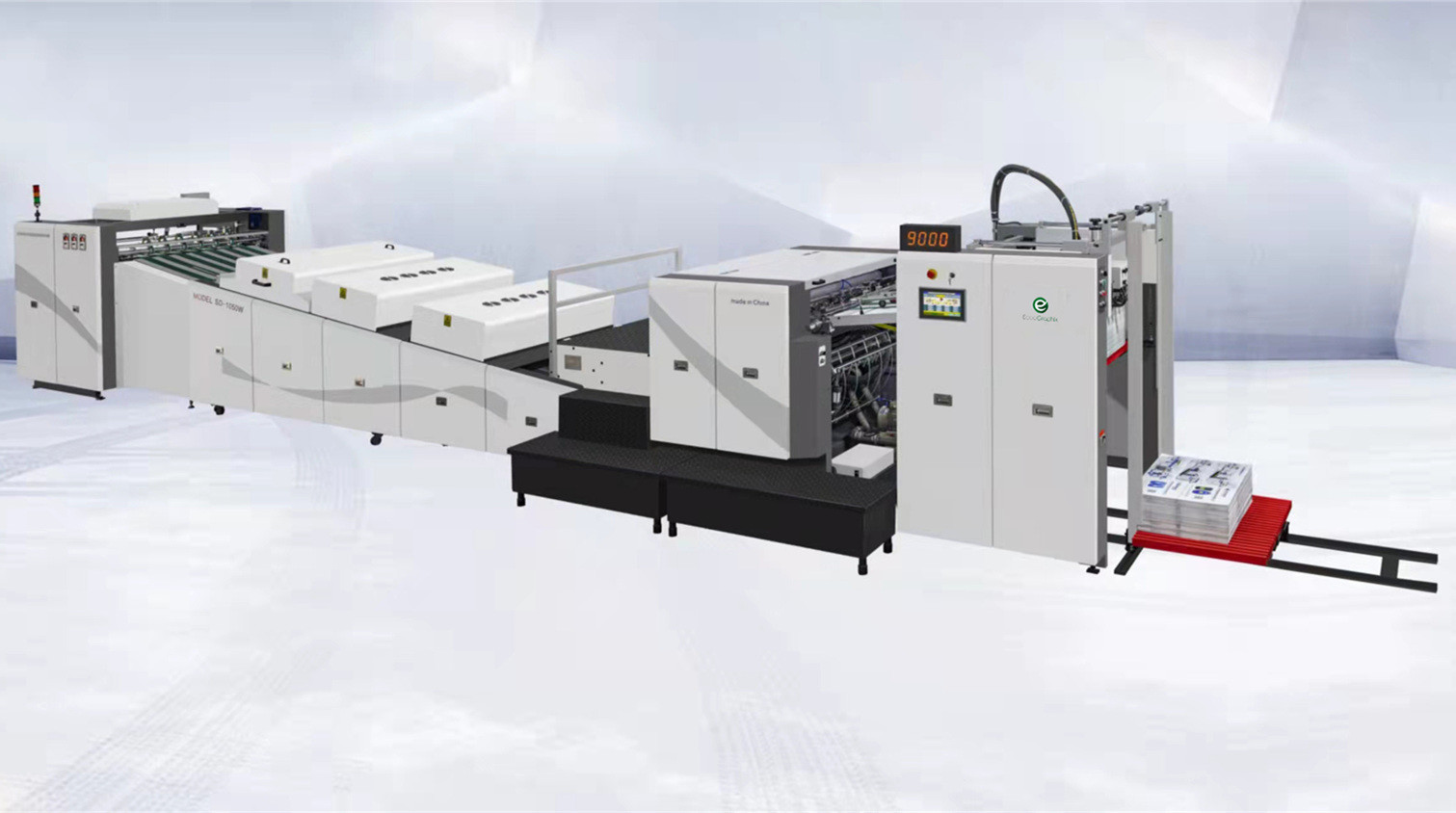

                           80g Paper Sheet UV Spot and Overall Varnish Coating Machine


  The Ecoo SD1060 UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, cartons,adhesive stickers etc. This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits to printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.



  The machines can be used for water based blister varnish coating, skin varnish coating(for tooth brush or toys packaging),gloss coating, or substitute for plastic laminating, or UV varnishing, with speed up to 9000s/h,by using printing blanket or flexo plate with anilox roller.




PRODUCT DESCRIPTION
* The machine is suitable for using water-based varnish, UV varnish.
* Cold-water non-curling system: The paper will be non-curling after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
* The heating energy cycle drying system makes the whole machine power consumption about 15kw/h.
* High efficiency:The machine working speed reaches to 70m/min, 9000sheets/h.


Standard Configuration: Selectable Configuration:

Auto Feeder

Multifunctional Coating Unit

UV Curing System

Auto Delivery Unit

Auto Control



Model Ecoo SD-1060
Max.sheet size 730x1060mm
MIN.sheet size 310X406mm
Max.coating size 720x1040mm
Sheet thickness 80-500gsm
Coating registration accuracy ±0.2mm
Production speed 9000sheets/hour
Weight 8T
Dimension 10460x2725x1930mm
Power 44KW
Remark: Production speed depending on sheet weight, size and quality
