Durability Double Layer Positive Thermal CTP Plate For Offset Printing

1000SQM

MOQ

Negotiable

Price

Durability Double Layer Positive Thermal CTP Plate For Offset Printing

Features Gallery Product Description Request A Quote

Features

Specifications

Maximum Short Grain Width: Maximum Width 1325 Mm

Plate Thickness: 0.15,0.20, 0.25,0.30, 0.40 (mm)

Spectral Sensitivity: 800-850 Nm – Peaks 830nm

Resolution: 1-99% At 400 LPI Or FM 10 Micron Stochastic

Length Of Press Runs: Ordinary Ink: 200,000 To 400,000 Impressions Unbaked UV Ink : 50,000 To 100,000 Impressions

Exposure Energy: 120 - 150 Mj/cm²

Highlight:

1325 mm CTP Printing Plates

,

Offset Printing Positive Thermal CTP Plate

,

Double Layer Computer To Plate CTP

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-TSR

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 2,000,000 Sqm Per Year

Gallery

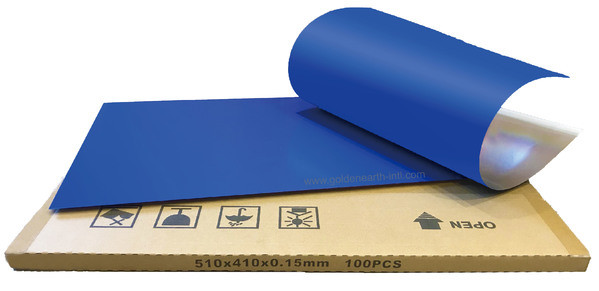

Durability Double Layer Positive Thermal CTP Plate For Offset Printing

Product Description

EcooGraphix Double Layer Thermal CTP plate ECOO-TSR

High-sensitivity thermal CTP plate, double coating, solvent resistant, similar like Fuji Lhpa.
Positive working, could be used with UV ink.

EcooGraphix ECOO-TSR Thermal Solvent Resistance CTP plate can be used for

long runs high grade offset commercial, packaging or newspaper printing.

It is compatible with ordinary ink and UV ink.

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 0

lt delivers high resolution and precise tone reproduction in the most demanding press conditions,

such as UV ink and alcohol substitute founts. The state of the art technology also provides wide processing latitude to achieve excellent stability and FM imaging capability.

Specification

Plate Model	ECOO-TSR
Plate Type	Positive Working Thermal CTP Plate(Double Layer)
Application	High grade offset commercial ,packaging or newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Plate Thickness	0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1325 mm
Plate intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs	Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
CTP Plate Making Machine	Heidelberg : Top setter/Supra setter; Luscher : Xpose Screen : PT-R,Creo : Scitex ;EcooGraphix Thermal CTP Tseries
Plate setters	120 - 150 mj/cm²
Exposure energy	800-850 nm – Peaks 830nm
Spectral Sensitivity	1-99% at 400 LPI or FM 10 micron stochastic
Resolution	Blue
Image color	Kodak Gold Star or EcooGraphix DV-T developer
Developer	25°C +/- 3°C
Processing temperature	25+/- 5 sec
Developing time	0.80 – 1.20 m/min
Processing Speed	0.80 – 1.20 m/min
Safelight	Daylight handling
Shelf Life	12 months under recommended storage conditions
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity.

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 1

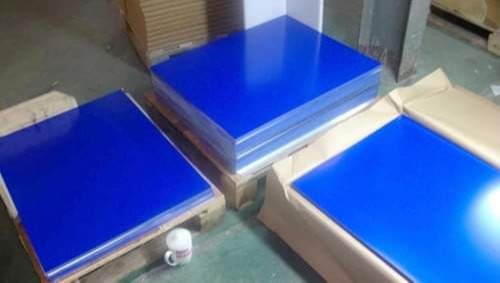

Producing and Packing

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 2

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 3

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 4

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 5

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 6

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 7

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 8

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 9

Workflow

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 10

More details

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 11

Durability Double Layer Positive Thermal CTP Plate For Offset Printing 12

FAQ

Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
