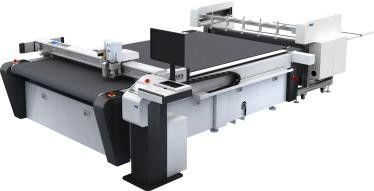

High Speed Motion Control Touch Screen Digital Cutter For Packaging
Equipped with the advanced multi-axis high-speed motion control system with independent intellectual property rights, the system upgrade and maintenance are not controlled by the third party, the late maintenance is convenient, high reliability, low cost, because the right of control is in hand, it can be convenient for users to customize special procedures for personalized needs and remote upgrade.

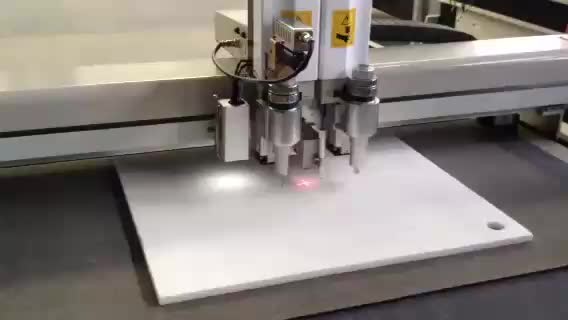

Equipped with camera and laser. Realize precise positioning of various materials, with high precision and errors.
The beam working area is equipped with infrared blocking technology to ensure the safety of users.
Intelligent Cutting Machine Specifications
Various corrugated board, plastic corrugated board, yellow cardboard, red cardboard, white cardboard, gray cardboard, PVC board, foam board, EVA, KT board, sticker, gasket, etc
Oscillating tool, creasing wheel, pen, drag knife, V cut knife, cursor, milling cut knife
≤ 50mm(Customize according to different materials)
Intelligent digital control servo system
220V ± 10%, 50HZ/60HZ
|Intelligent Cutting Machine Specifications|
|Cutting materials||Various corrugated board, plastic corrugated board, Yellow cardboard, red cardboard, white cardboard, gray cardboard, PVC board, Foam board, EVA, KT board, sticker, gasket, etc|
|Standard Tool||Oscillating tool, creasing wheel, pen, drag knife, V cut knife, cursor, milling cut knife|
|Cutting thickness||≤ 50mm(Customize according to different materials)|
|Fixing Method||Vacuum suction|
|Repeat precision||≤ 0.01mm|
|Control panel||Touch screen|
|Driving system||Intelligent digital control servo system|
|Rated Voltage||220V ± 10%, 50HZ/60HZ|
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials.
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: One year warranty of defects in materials and workmanship.(except the consumables like blades and mat) the full life-time Remote service support for products.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose.
Q5: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
