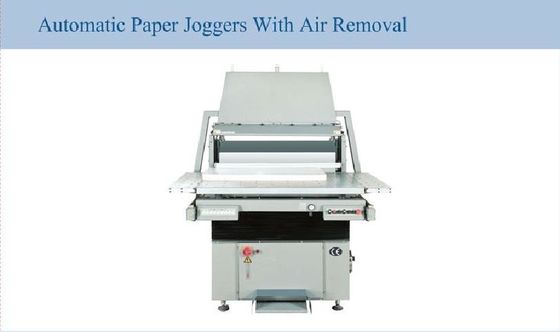

Automatic Online Paper Pile Cutter Guillotine Jogger with Loader and Lifter
Product Description:
The paper cutter Guillotine is a traditional product, which is used to deal with the paper cutting requirements in the later stage of printing. From the mechanical paper cutter to the tape-controlled paper cutter, and to the cutting system of microcomputer program control, color display, full image operation guidance visual processing and computer-aided cutting external programming and editing production data, the production preparation time is reduced. Shorter, more precise cutting, less labor-intensive, and safer to operate.
1. Usage: Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal,etc.
2. COMPUTER: it adopts 10 inch touch screen, color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction and do self-protection while wrong operation.
3.Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
4.Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw., which can prolong the machine use life, and can bear the high speed paper delivering.
5. Photo cell: it is equipped with a photo cell safety protection device.
6.Over load protection device; convenient knife changing device.
7.Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
8.Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
9.Cutting controller:both of the user’s hands operate the machine. It can cut paper in one time.
10. Electronic knife lock:when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
11.Main electric device are imported from Germany, French, Japan, etc.
Main Technical Parameters:
| Specification | Units | ECOO1150DH-10 | ||
| Max cutting width | cm/inch | 115/45.3 | ||
| Max cutting length | cm/inch | 116/45.7 | ||
| Max cutting height | cm/inch | 16.5/6.5 | ||
| Width of machine | With sidetable | cm | 267 | |
| Without sidetable | cm | 237 | ||
| Main motor | kw | 4 | ||
| Weight | kg | 3300 | ||
| Voltage | V | 365-395 | ||
| Cutting speed | Cycles/min | 45 | ||
| Packing size | L×W×H (cm) | 260×154×203 | ||
| Total width of machine | cm | 267 | ||
| Total length of machine | cm | 261 | ||
| Total height of machine | cm | 163 | ||
| The length of side table | cm | 70 | ||
| The width of groundsill of machine foot | cm | 60 | ||
| Clamp pressure | Min | N | 200 | |
| Max | N | 40000 | ||
| Knife thickness | cm | 139x16x1.37 | ||
| Grinding reserve | cm | 6 | ||
|
Min cut
|
without false clamp | cm/inch | 3/1.2 | |
| with false clamp | cm/inch | 10/3.9 | ||
| Cutting speed | Cycles/min | 45 | ||
1 Touch screen input. 2 Automatic operation
11 Mandatory stop sending paper
12 .Mandatory stop cutting
Sheet-fed paper cutter is a kind of cutting machine, which is widely used and can be used for cutting paper, leather, plastic, cardboard and other materials. The paper cutter is mainly composed of a main engine (also known as a gantry), a worktable, a paper pushing mechanism, a paper pressing mechanism, and a cutting mechanism. T
The production of printing, packaging, bookbinding and other production from cutting to printing finished products and the cutting of raw books after binding all require paper cutters for cutting, so paper cutters are important equipment for post-press processing. Sheet-fed paper cutters are widely used in printing plants, bookbinding plants, packaging plants, paper products processing plants, etc.
