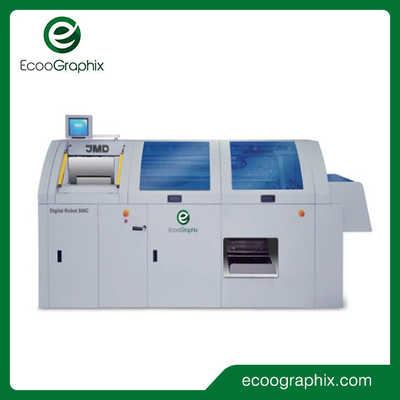

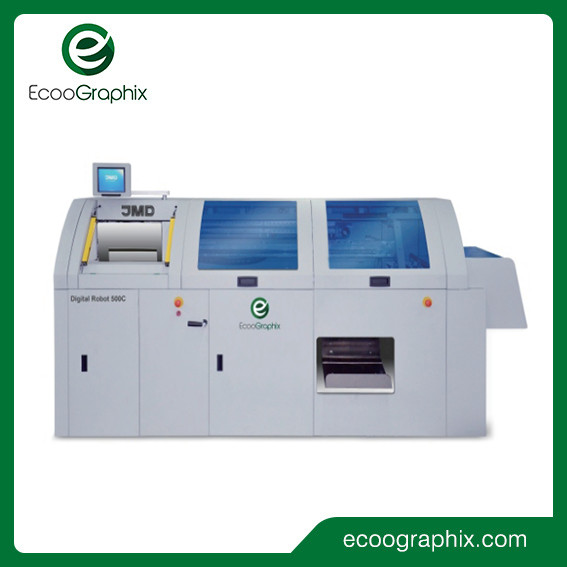

Digital Print-on-Demand Perfect Binder - Digital Robot 500C
Digital Robot 500C is a fully automated single-clamp perfect binder with max speed up to 360 cycles/hour. It features fully automated set-up through touch screen or via barcode scanning, integrated thickness auto-measurement, short changeover time for various binding formats, interchangeable EVA and PUR system (option). Book of one production takes on a new level of convenience and stability.
Specification
| Machine Model | Digital Robot 500C |
| No. of Clamps | 1 |
| Max. Mechanical Speed | 400 books/h |
| Book Block Length (a) | 120-370 mm |
| Book Block Width (b) | 100-300 mm |
| Book Block Thickness (c) | 1-60 mm |
| Cover Length (d) | 120-370 mm |
| Cover Width (e) | 220-620 mm |
| Power Required | 11.5 kw |
Machine Layout
Main Machine Parts
Touch Screen Control System
The icon-based 10-inch touch screen enables ease of operation. Inputting required book format and production parameters on the touch screen or via scanning barcode, the set-up will be automatically finished in 30s at the fastest speed. The control system can memorize 99 jobs and be retrieved as requested.

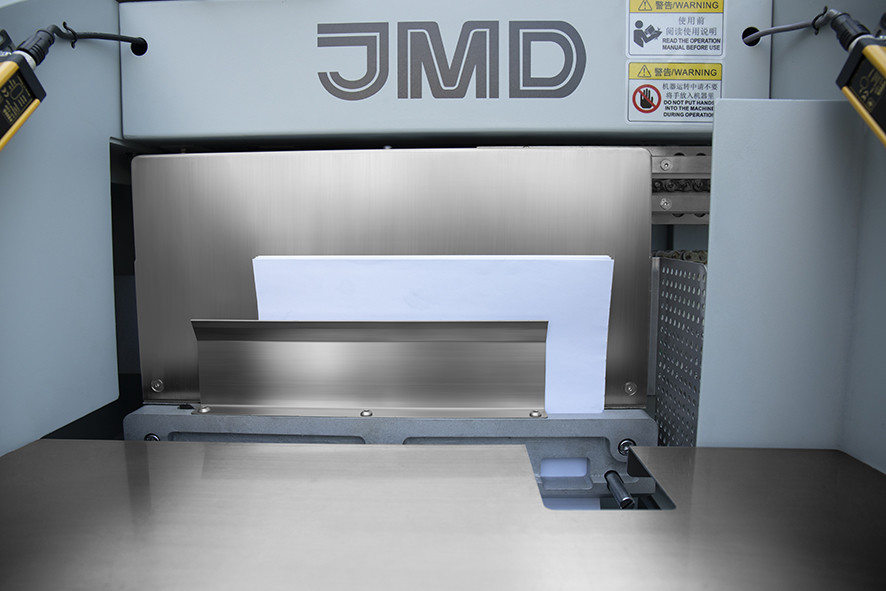

Penumatic Book Clamp
Simply put the book block in the pneumatic book clamps, book thickness will be automatically measured, and all revelvant work steps are set accordingly. The vibration unit aligns the book block precisely before the book clamps close. The double activation button and safety light curtain ensure high-safety operation.
Milling Station
Step motor allows milling station opening width to auto adjust according to the detected thickness.
While Space-saving design integrated milling and notching, brushing. Operator can use switch handle to easily enable and disable milling as needed.

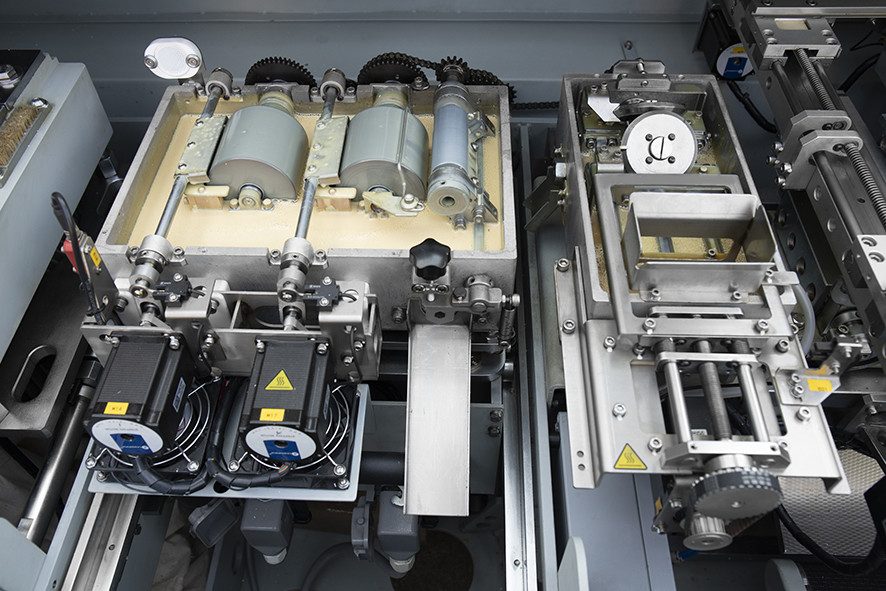

Moveable EVA Spine Gluing Station
Dual spine gluing rollers guarantee top binding quality. Spine gluing length and thickness are adjusted automatically and accurately. Changeover between EVA and PUR system can be easily completed in minutes.
Independent Side Gluing Station
Opening width of two side gluing rollers is automatically adjusted by step motor. Even and thin side glue is applied by the independent side gluing station with two application discs.

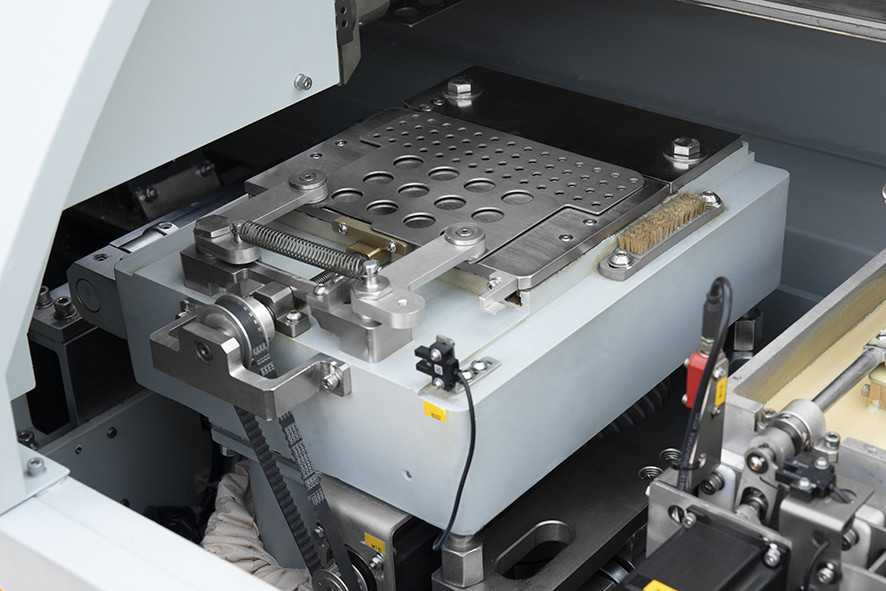

Cover Feeding Station
Top in-feed cover feeder design significantly reduce drag marks. Cover scoring position is automatically adjusted according to the input thickness; Sensitive double-feed and miss-feed defection device ensure accurate feeding for every cover.
Cover Feeding Station
Top in-feed cover feeder design significantly reduce drag marks. Cover scoring position is automatically adjusted according to the input thickness; Sensitive double-feed and miss-feed defection device ensure accurate feeding for every cover.
Packaging & Shipping
More details
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
