400 Books Per Hour Fully Automated Single Clamp Book Binder
◣◥◣◥◣◥◣◥ Introduction ◣◥◣◥◣◥◣◥

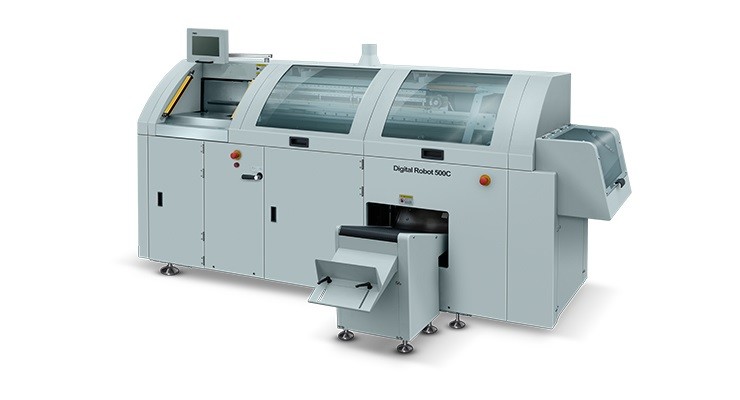

Digital Robot 500C is a fully automated single-clamp perfect binder with max. speed up to 400 books/hour. It features fully automated set-up through touch screen or via barcode scanning, integrated thickness auto-measurement, short changeover time for various binding formats, interchangeable EVA and PUR system(option). Book of one production takes on a new level of convenience and stability.
◣◥◣◥◣◥◣◥ Specification ◣◥◣◥◣◥◣◥
Model Digital Robot 500C
No. of Clamps 1
Max. Production Speed 400 books/h
Book Block Length (a) 120-370 mm
Book Block Width (b) 100-300 mm
Book Block Thickness (c) 1-60 mm
Cover Length (d) 120-370 mm
Cover Width (e) 220-620 mm
Power Required 11.5 kw
| Model | Digital Robot 500C |
| No. of Clamps | 1 |
| Max. Production Speed | 400 books/h |
| Book Block Length (a) | 120-370 mm |
| Book Block Width (b) | 100-300 mm |
| Book Block Thickness (c) | 1-60 mm |
| Cover Length (d) | 120-370 mm |
| Cover Width (e) | 220-620 mm |
| Power Required | 11.5 kw |
◣◥◣◥◣◥◣◥ Outstanding Features ◣◥◣◥◣◥◣◥
Integrated Auto Book Thickness Measurement:
Simply put the book block in the pneumatic book clamp, book thickness will be automatically measured and the machine will finish all thickness relevant adjustment in just 5 seconds, which provides greater production efficiency for various binding formats.
Fast Automatic Changeover:
Automatic job changeover can be accurately completed down to 5s for book thickness change and book formats at the fastest speed.
Independent Gluing Stations:
The independent spine gluing station and side gluing station ensures accurate glue application to the spine and two sides of the book block for superior binding quality.
Optional PUR Gluing Station:
User-oriented moveable glue tank design allows changeover between EVA and PUR glue application system in just minutes.
Designed for Industrial Production:
Digital Robot 500C can run 24 hours x 7 days to assure ulitimate production need, thanks to the robust construction with European high quality standards.
◣◥◣◥◣◥◣◥ Details ◣◥◣◥◣◥◣◥
|
|
|
|
|
|
|
Independent Side Gluing Station
Opening width of two side gluing rollers is automatically adjusted by step motor. Even and thin side glue is applied by the independent side gluing station with two application discs. |
|
|
|
|
◣◥◣◥◣◥◣◥ Producing And Packaging ◣◥◣◥◣◥◣◥
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
|
|
◣◥◣◥◣◥◣◥ Certificates ◣◥◣◥◣◥◣◥
◣◥◣◥◣◥◣◥ FAQ ◣◥◣◥◣◥◣◥
|
Q1: What are your main products ?
|
|
Q2: Where is your factory ?
|
|
Q3: What is your warranty for the CTPs ?
|
|
Q4: Can you also supply the Workflow and RIP ?
|
|
Q5: What about the installation and after-sales technician support ?
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
