4 Clamps Automatic Digital Book Binding Machine

4 Clamps Automatic Digital Book Binding Machine
Features Gallery Product Description Request A Quote
Trade Mark: EcooGraphix
Automatic Grade: Automatic
Material: Stainless Steel
Style: Digital Book Binding
Transport Package: Wooden Case
Origin: China
Speed: 2000cycles/h
High Light:

Automatic Book Binding Equipment


2000cycles/H Stainless Steel Book Binder


CE Stainless Steel Book Binder

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: Digital Robot 2000A
Payment & Shipping Terms
Delivery Time: 30 days
Supply Ability: 1000 pieces per year
Product Description
Digital Print On Demand Magazine Binder

Ecoographix Digital Print-on-Demand Binding Machine

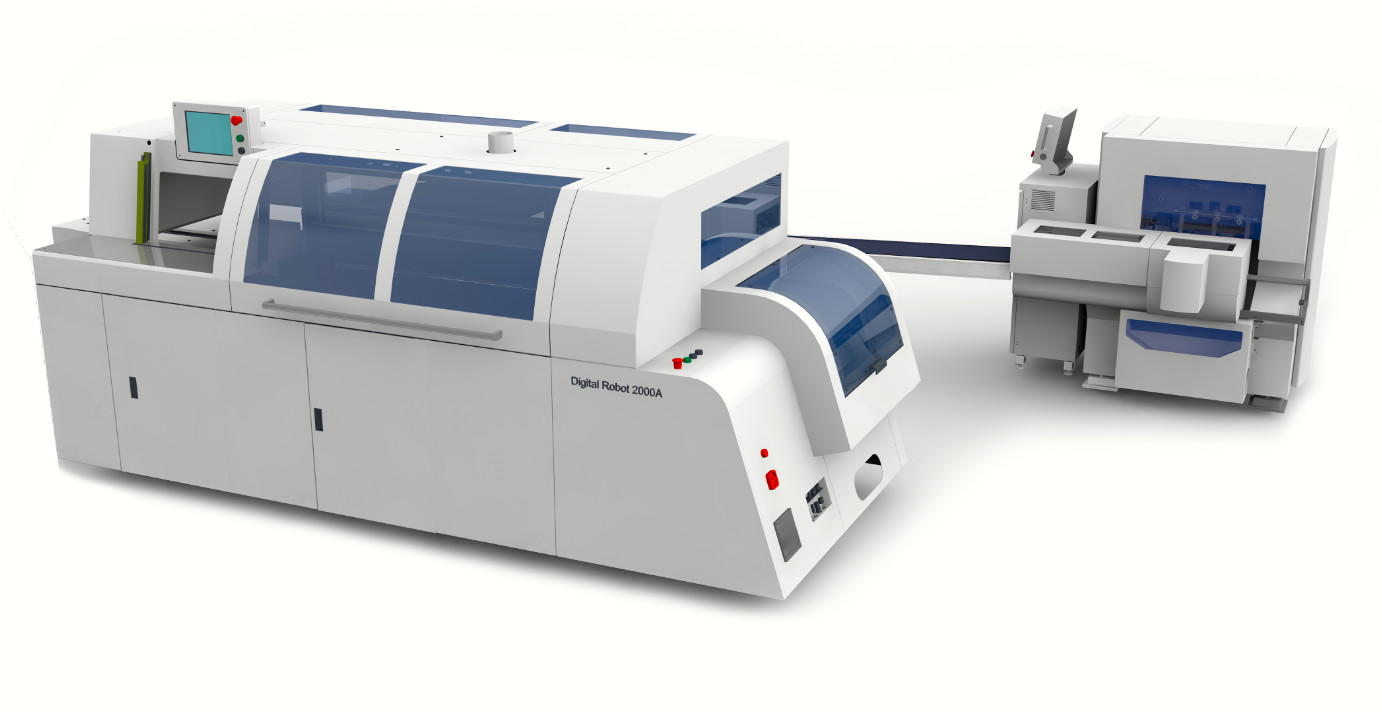

Model: Digital Robot 2000A



Digital Robot 2000A is our latest innovation of an 'off-line' book binding solution for print-on-demand printing. It features fully automatic adjustments through the touch screen, short changeover time for varied binding formats, an exchangeable EVA gluing tank, and a PUR gluing tank(option), which makes Digital Robot 2000A an ideal post-press solution for short-run and print-on-demand digital printing.

Digital Robot 2000A is available for inline connection with a digital three-knife trimmer and digital stacker in order to achieve a fully automatic perfect binding line. Through this, even very short runs can be produced quickly and in an economical way.
Standard Configuration


  1. Quick Setup and High Automation: All setups can be done automatically just by inputting data into the touch screen or via scanning the barcode information of the book block and the cover.
  2. Fast Automatic Changeover: Automatic job changeover can be accurately completed in as short as 10 seconds for changing book thickness and book formats at the fastest speed.
  3. Large Binding Compatibility: Digital Robot 2000A offers strong binding for different kinds of book blocks, such as loose-sheet book blocks, cold-glued book blocks, sewn book blocks, etc.
  4. Optional PUR Gluing Station: Changeover between EVA and PUR gluing application systems can be easily finished in just a few minutes.
  5. Soft Book Lay-down System: The specially designed soft book lay-down system can maximally protect the just-bound book spine from any slight deformation.
Standard Configurations Quantity (pcs)
Touch screen control system 1
Book block feeding station with safety light barrier 1
Automatically adjusted book clamp 4
Automatic adjusted milling station 1
Automatic adjusted moveable spine gluing station 1
Automatic adjusted side gluing station 1
Automatic adjusted cover feeding station (quadruple cover scoring) 1
Automatic adjusted nipping station 1
Automatic soft book lay-down system 1
Delivery unit 1
Paper dust extractor 1
Book Binder
Machine Model Digital Robot 2000A
No. of Clamps 4
Max. Mechanical Speed 2000c/h
Book Block Length (a) 120-400mm
Book Block Width (b) 120-270mm
Book Block Thickness (c) 3-50mm
Cover Length (d) 140-450mm
Cover Width (e) 240-600mm

Ecoographix Digital Print-on-Demand Binding Machine


Ecoographix Digital Print-on-Demand Binding Machine


A touchscreen control system
The icon-based 10-inch touch screen enables real-time, automated, and precise control, adjustment, and monitoring of the Digital Robot 2000A.

Automatic adjustments will be finished within 30 seconds just by inputting the required book format and production parameters into the touch screen.

A book block feeding station
After the book block is fed into the book clamp, vibration will be applied to vibrate the book spine. The height of book block feeding station can be adjusted.

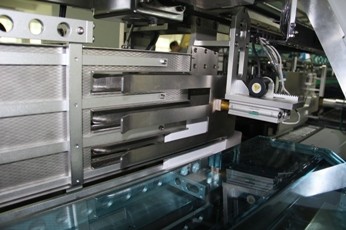

Four automatically adjusted book clamps
The pneumatic-controlled book clamps can be automatically adjusted according to the book block thickness.

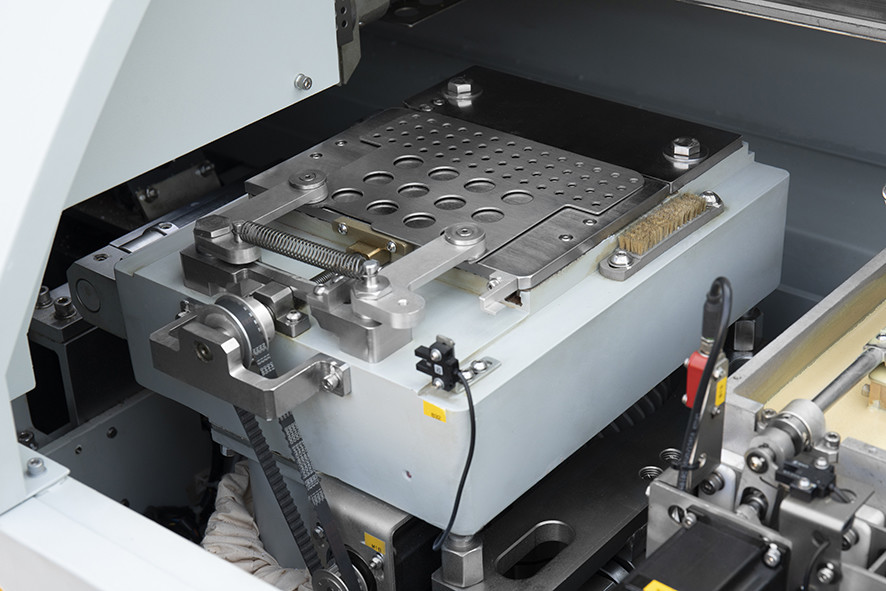

An automatically adjusted milling station
The opening width of the milling pressure plate is automatically adjusted.
Function: milling and notching, brushing.
Milling depth: 0~3mm.
If the milling function is not needed, just switch the milling handle to lower the milling station, so that book blocks are not to be milled.

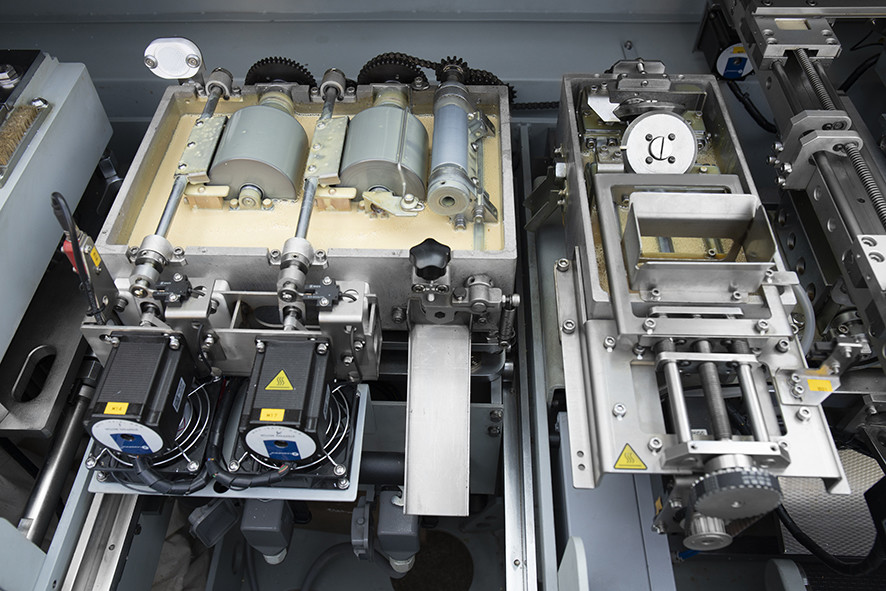

An automatically adjusted moveable spine gluing station
The movable EVA spine gluing tank station offers a convenient and fast way for changeover between PUR gluing application systems (option). The spine gluing length and thickness are adjusted automatically.

An automatically adjusted side gluing station
The opening width of two side gluing rollers is automatically adjusted.

An automatic adjusted cover feeding station(quadruple cover scoring)
The side gauges of the cover feeding station and the position of the cover scoring wheels are automatically adjusted. A sensitive double-feed or miss-feed cover defection device is installed to ensure accurate cover feeding.

An automatically adjusted nipping station
The opening width of nipping plates and the width of side gauges are automatically adjusted.

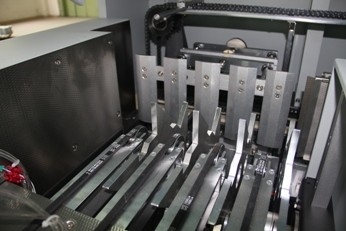

An automatic soft book lay-down system
The soft book lay-down system works as an auto-lift conveyor to receive and transport bound books gently so as to ensure no slight deformation to the book spine during delivery.

A paper dust extractor
Paper waste can be removed by the powerful paper dust extractor to keep the system clean.
Producing and Packing

From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.

Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine



Ecoographix Digital Print-on-Demand Binding Machine
Ecoographix Digital Print-on-Demand Binding Machine



Q1: What are your main products?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: What is your warranty for the CTPs?

A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor. If the customer uses the EcooGraphix CTP plate together with the CTP machine, we will provide a Lifetime Warranty.

Q4: Can you also supply the Workflow and RIP?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.

Q5: What about the installation and after-sales technician support?

A: Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets, the service charge, and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24h. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and the EcooGraphix technical service team supports these installations remotely with regular onsite visits.

These end users' printers all run the CTP systems with satisfaction due to our robust quality, seamless remote service, thorough training, and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle with installations, training, and after-sales service. We guarantee your satisfaction.
