Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing

1000 Square Meters
MOQ
Negotiable
Price

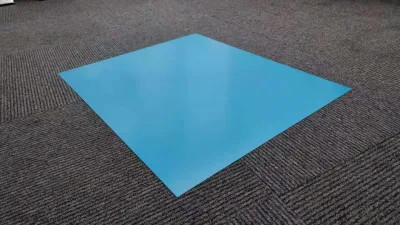

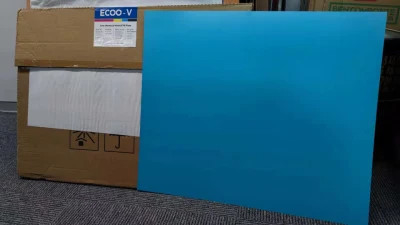

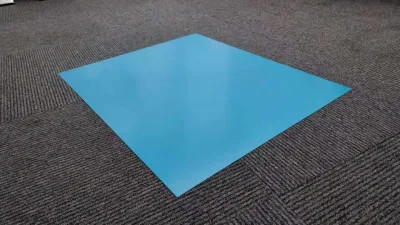

Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Conventional Violet CTP Plate
Run Length: More Than 150,000 Impressions
Gauge: 0.20/0.25/0.30mm
Resolution: 3% To 97% @ 175 Lpi Under Calibration
Specification: Maximum Width 1320 Mm
Application: Newspaper/Commercial Printing
Developer: FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD Gum
Exposure Energy: 50-60 Uj/ Cm2(Based On Plate Setter And Condition)
High Light:

Offset Thermal Printing Plate

,

Aluminum Violet CTP Thermal Printing Plate

,

0.25mm Thermal CTP Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-V
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 45-60 Days
Payment Terms: L/C, T/T
Supply Ability: 2000, 000sqm/Year
Product Description

EcooGraphix Negative Photopolymer Conventional Violet CTP Plate



Product Description




Application



Ecoo-V is an environmental friendly Low Chemical Violet Photopolymer CTP plate for Newspaper printing. It is a kind of plate specialized for violet CTP platesetters for high-level printing, which can be scanned by 410nm laser controlled by computer, and mounted on the press for printing after preheating, rinsing, developing, etc.


The plate is applied with many latest technologies, like excellent roughed aluminum substrate, high-resolution formulation design and advanced Multi-layer Coating Technology. These advanced technologies ensure the high quality and stable property.



Characteristic

1. Reducing chemical consumption, saving water.

2. Simplifying the processing, only 3 steps including preheating, developing, and drying.
3. Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer.
It makes print quality more stable.


Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 0
Specification



Plate Type: ECOO-V



Application: Newspaper/Commercial Printing



Guage: 0.20/0.25/0.30mm



Developer: FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD gum



Run Length: More than 150,000 impressions. Actual run length may vary according to press/paper/ink conditions



Resolution: 3% to 97% @ 175 lpi under calibration



Safe Light: 12months under recommended storage conditions



Plate Type ECOO-V
Features Negative-working, low-chemical violet plate, also can work as normal violet plate
Application Newspaper/Commercial Printing
Substrate Electrochemically grained and anodized aluminum substrate
Gauge 0.20/0.25/0.30mm
Plate-setter Existing mainstream 405nm violet plate-setter,
All the main brands in market, like Agfa/FFEI&FUJI/ Krause/ECRM/Highwater/Escher-Grad/Dotline
Processor Existing conventional violet processors and low-chemical violet processors.
Recommended: Glunz&Jensen Raptor, Height inca/maya etc.
Developer FUJI LP. DWS. Agfa PL. 10. IMAF NEGA 910; PVD gum
Processing Preheat temp setting 90- 100C (plate surface temp)
For FUJI LP-DWS: Developer temperature 25-26C/Dwell time 16-17 seconds For Agfa PL- 10
Developer temperature 24C/Dwell time 17 seconds
Run Length More than 150,000 impressions.
Actual run length may vary according to press/paper/ink conditions
Laser energy 70-80 μj/cm²
Resolution 3% to 97% @ 175 lpi under calibration
Safe light For manual handling and platesetting loading, darkroom conditions with G10 safelight is required.
Shelf life 12months under recommended storage conditions
Storage Temperature: 18-26C Relative humidity: 30-70% RH
Advantages nvironment-friendly------help enterprises to develop
Stable developing performance, compatible with various kinds of developers
Reduce equipment investment and maintenance cost



Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 1



Workflow




Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 2

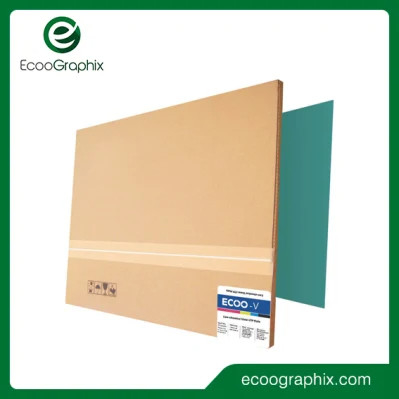

Producing and Packing




Packing: Standard Exporting Wooden Box

Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 3

Our Factory

1. Material Warehouse:
Only use South Western Aluminum, Best quality aluminum roll manufacturer.
This ensure the plate substrate quality.

Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 4



Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 5



2. Worldwide Top Standard Production Line: 240meters long, 40meters per minute



Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 6



More details




Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 7



Conventional Violet CTP Plate Aluminum Printing Plate For Offset Printing 8



FAQ




Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
