Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Processless CTP Printing Plate
Application: High Grade Commercial And Newspaper Printing
Material: Electrolyte Graining And Anodized AL Substrate
Thickness: 0.15mm / 0.30mm
Spectrum Scope: 800-850nm
Advantage: Without Processing, Directly On Press
Run Length: 100,000 Impressions
High Light:

Processless Thermal CTP Printing Plates

,

Thermal CTP Plate Chemical Free

,

Electrolyte Graining Thermal CTP Plate

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO, CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30days
Payment Terms: T/T, Western Union
Supply Ability: 2000,000 sqm per year
Product Description

Model: ECOO-G Processless (process-free)
ECOO-G thermal plate environmental-friendly processless printing plate.
-Run on press machine directly after CTP exposing, no need chemistry processing

-Saves cost of labor, water treatment and developer tank
It's chemistry free, environment-friendly, as same as Sonora XP and Agfa Azura!

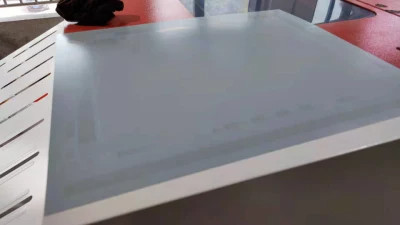

Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 0





Product Description

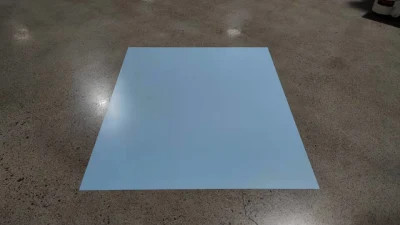

Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 1



Characteristics



-Negative non-ablation photosensitive system
-Compatible with the dominant devices in the market
-Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter
-Good dot reproduction, stable performance, wide processing latitude
-Long stability of latent image, can be stored at least a week after plate-making
-High quality aluminum substrate, professional coating formulation

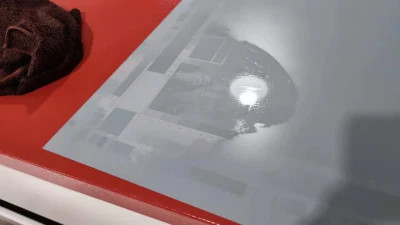

Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 2


Recommended application to press procedures of ECOO-G:



1. Clean all the inks on the blanket;



2. Start the press machine, apply the water roller, run 30-40 seconds;
3. Apply the ink rollers 20-30 seconds; 4. Apply the paper and start print.




Specification



Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Spectrum scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy imaging 130-150 mj/ m²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <50 sheets
Safety light 4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing Without processing, directly on press
Run Length 100,000 impressions, actual run length depends on printing conditions
Baking No recommended
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 830 nm
Coating color Grey
Shelf life 12 months under recommended condition
Transportation Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity
Storage Recommended condition: 18ºC-24ºC, 40%-50% RH.





Workflow

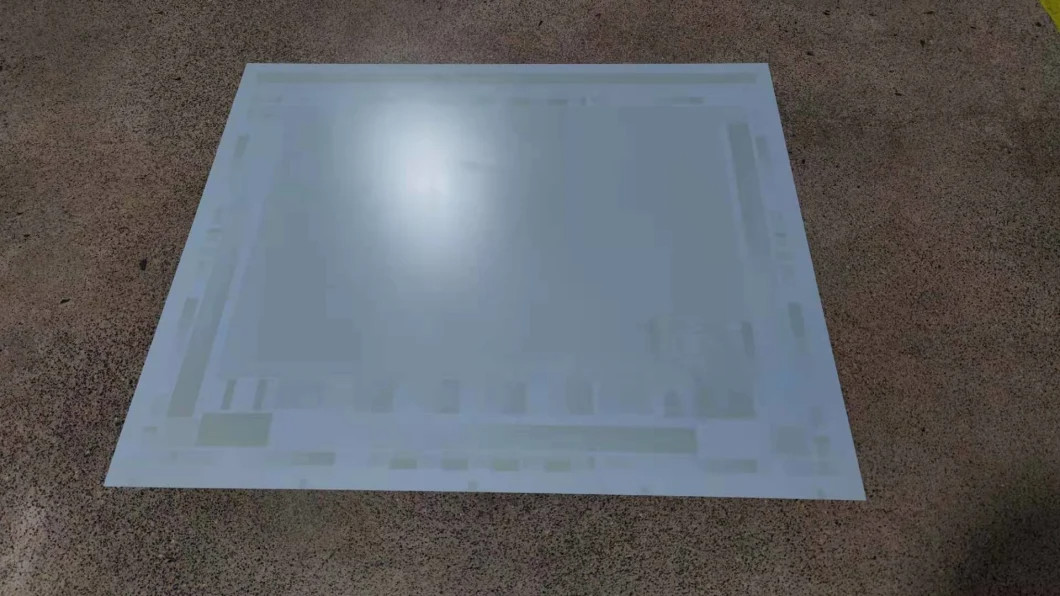

Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 3





Producing and Packing

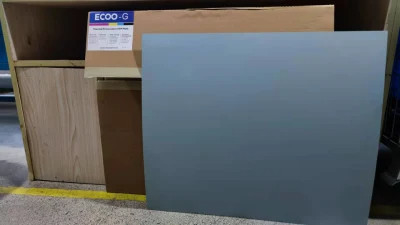

Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 4

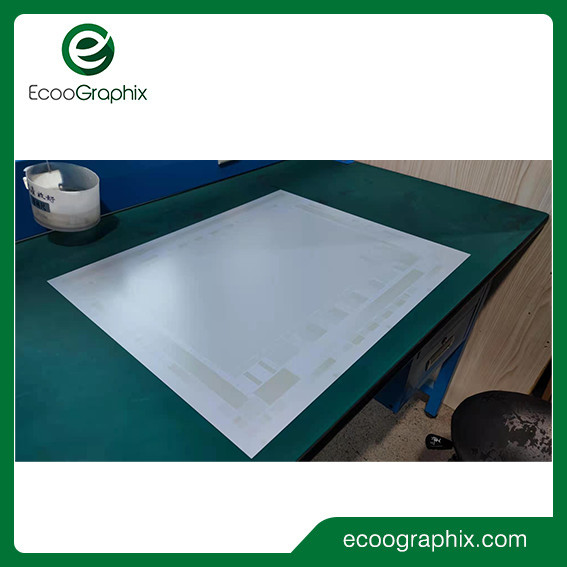

Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 5



Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 6



Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 7



Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 8



Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 9













More details




Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 10



Processless Offset Printing Aluminum Thermal CTP Plate Chemical Free 11





FAQ




Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
