Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width

1 SET
MOQ
Negotiable
Price
Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Leather Cardboard Paper Cutter
Max Cutting Width: 115/45.3 Cm/Inch
Max Cutting Length: 116/45.7 Cm/Inch
Max Cutting Height: 16.5/6.5 Cm/Inch
Main Motor: 4kw
Cutting Speed: 45 Cycles/Min
Knife Thickness: 139X16X1.37cm
Voltage: 365-395V
The Length Of Side Table: 70mm
High Light:

Automatic Cardboard Paper Cutter

,

Leather Flatbed Digital Cutter

,

1150mm Width Cardboard Paper Cutter

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-1150DH-10
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets/Year
Product Description

Leather Cardboard Paper Cutter



Product Description




1. Usage:
Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal,etc.
2. Computer:
it adopts 10 inch touch screen, color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction and do self-protection while wrong operation.
3. Double Hydraulic Device:
the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
4. Double Guide Device:
the paper pusher adopts double imported linear guide and roller ball screw., which can prolong the machine use life, and can bear the high speed paper delivering.
5. Photo cell:
it is equipped with a photo cell safety protection device.
6. Over load protection device; convenient knife changing device.
7. Worktable chrome treatment:
the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
8. Air ball:
air balls are installed in the worktable. The paper sending work will be easy and accurate.
9. Cutting controller:
both of the user's hands operate the machine. It can cut paper in one time.
10. Electronic knife lock:
when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
11. Main electric device are imported from Germany, French, Japan, etc.



Specification




Model: ECOO1150DH-10



Max cutting width: 115/45.3 cm/inch



Max cutting length: 116/45.7 cm/inch



Width of machine with sidetable: 267cm



Width of machine without sidetable: 237cm



Main motor: 4kw



Weight: 3300kg



Voltage: 3300v

Specificati

Specification Units

   ECOO1150DH-10

Max cutting width cm/inch 115/45.3
Max cutting length cm/inch 116/45.7
Max cutting height cm/inch 16.5/6.5
Width of machine With sidetable cm 267
Without sidetable cm 237
Main motor kw 4
Weight kg 3300
Voltage V 365-395
Cutting speed Cycles/min 45
Packing size L×W×H (cm) 260×154×203
Total width of machine cm 267
Total length of machine cm 261
Total height of machine cm 163
The length of side table cm 70
The width of groundsill of machine foot cm 60
Clamp pressure Min N 200
Max N 40000
Knife thickness cm 139x16x1.37
Grinding reserve cm 6
Min cut without false clamp cm/inch 3/1.2
with false clamp cm/inch 10/3.9
Cutting speed Cycles/min 45





Configuration




NO. Configuration Brand Model
1 Display screen AU Taiwan
2 Computer 10" touch screen with keyboard(Movesun) Shanghai
3 Motherboard chipset AMD America
4 Cast HT250 HUOLONG
5 Locating movement motor FUJI Japan
6 Feed screw TBI Taiwan
7 Guide TBI Taiwan
8 Worktable HT250 HUOLONG NO.1
9 Bearing NSK Japan
10 Triangle belt Jin huli China
11 Transducer HJB China
12 Switch Schneider French
13 Locating switch Panasonic Japan
14 Air pump Shenshen China
15 Electrical Schneider/ Omron French/Japan
16 Encoder CCFIRST China
17 Photo cell ZH SHANGHAI
18 Proportion valve ATOS Italy
19 Sealing ring NOK JAPAN
20 Hydraulic pump Yong ling China
21 Electronic knife lock Dapeng China
22 Knife IKS Shanghai
23 Main motor LB China
24 Overflow valve ATOS Italy

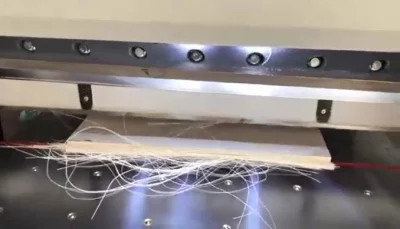

Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width 0

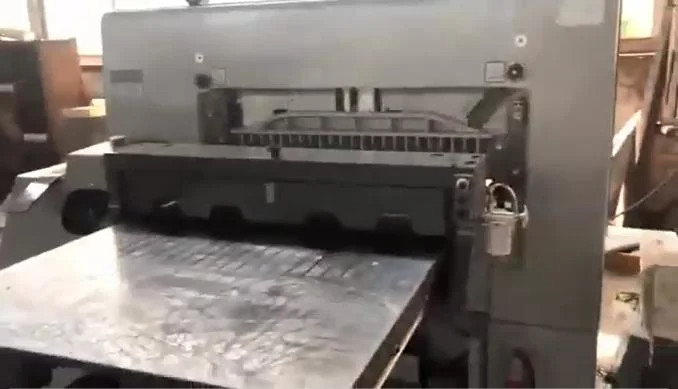

Producing And Packaging




Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width 1



Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width 2



Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width 3

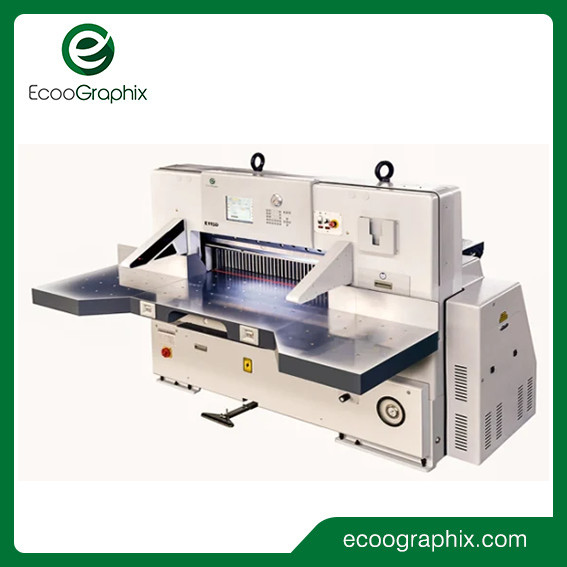

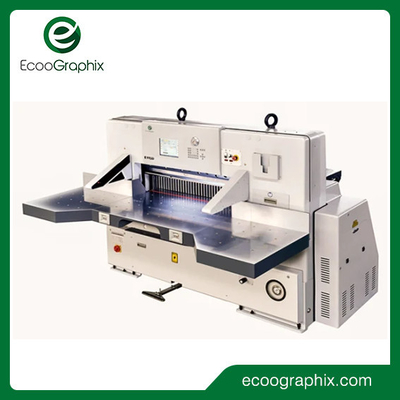

More Details




Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width 4



Leather Cardboard Paper Cutter Flatbed Digital Automatic 1150mm Width 5



FAQ




1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing.
We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.


2. Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
One year for machine and printing head if use our ink. One year for machine only if do not use our ink.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge
and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
