Chemistry Free Conventional UV CTP Plates Processless
Brief introduction

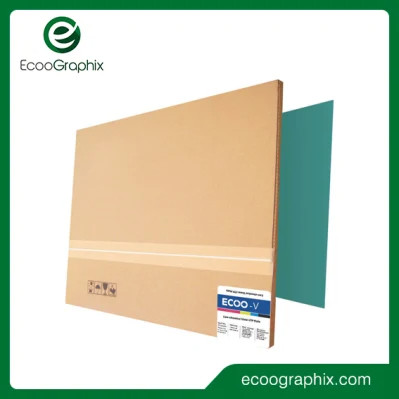

ECOO-H Processless negative CTCP Plate is the latest product. The plate can be exposed on UV image-setter and applied on printing machine directly without processing or developing. With ECOO-H, you can be more competitive in reducing cost, and achieve higher gain efficiency and green printing. It is very unique.
So far most orders comes from USA and Canada. Wish more printing houses like this plate and try our free sample.
Technical Data
Model
ECOO-H
Plate Type
Non-ablation UV-negative type
Application
High grade commercial and newspaper printing
Substrate
Electrolyte graining and Anodized AL substrate
Thickness
0.15mm / 0.30mm
Maximum short grain width
Maximum width 1280 mm
Photosensitive wave length
405 nm
Platesetter
Various dominant UV platesetters in the market
Image color
Gray
Low-energy imaging
20 mj/ cm²
The period of latent image stabilization
≤7 days
Recommended screen method
1-99 @200 Lpi AM / 20u FM and mixture
The paper number of start-up
<50 sheets
Safety light
1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing
Without processing, directly on press
Run Length
100,000 impressions Actual run length depends on printing conditions
Shelf life
12 months under recommended
Transportation
Packed in seal and stored by means of preventing from light / moisture, over heat and high humidity
Storage
Recommended condition: 18ºC~24ºC, 40%-50% RH
| Model | ECOO-H |
| Plate Type | Non-ablation UV-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.15mm / 0.30mm |
| Maximum short grain width | Maximum width 1280 mm |
| Photosensitive wave length | 405 nm |
| Platesetter | Various dominant UV platesetters in the market |
| Image color | Gray |
| Low-energy imaging | 20 mj/ cm² |
| The period of latent image stabilization | ≤7 days |
| Recommended screen method | 1-99 @200 Lpi AM / 20u FM and mixture |
| The paper number of start-up | <50 sheets |
| Safety light | 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions Actual run length depends on printing conditions |
| Shelf life | 12 months under recommended |
| Transportation | Packed in seal and stored by means of preventing from light / moisture, over heat and high humidity |
| Storage | Recommended condition: 18ºC~24ºC, 40%-50% RH |
Advantages
Negative non-ablation photosensitive system
Compatible with the dominant devices in the market
Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter
Good dot reproduction, stable performance, wide processing latitude
Long stability of latent image, can be stored at least a week after plate-making
High quality aluminum substrate, professional coating formulation
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Certificates
FAQ
Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
