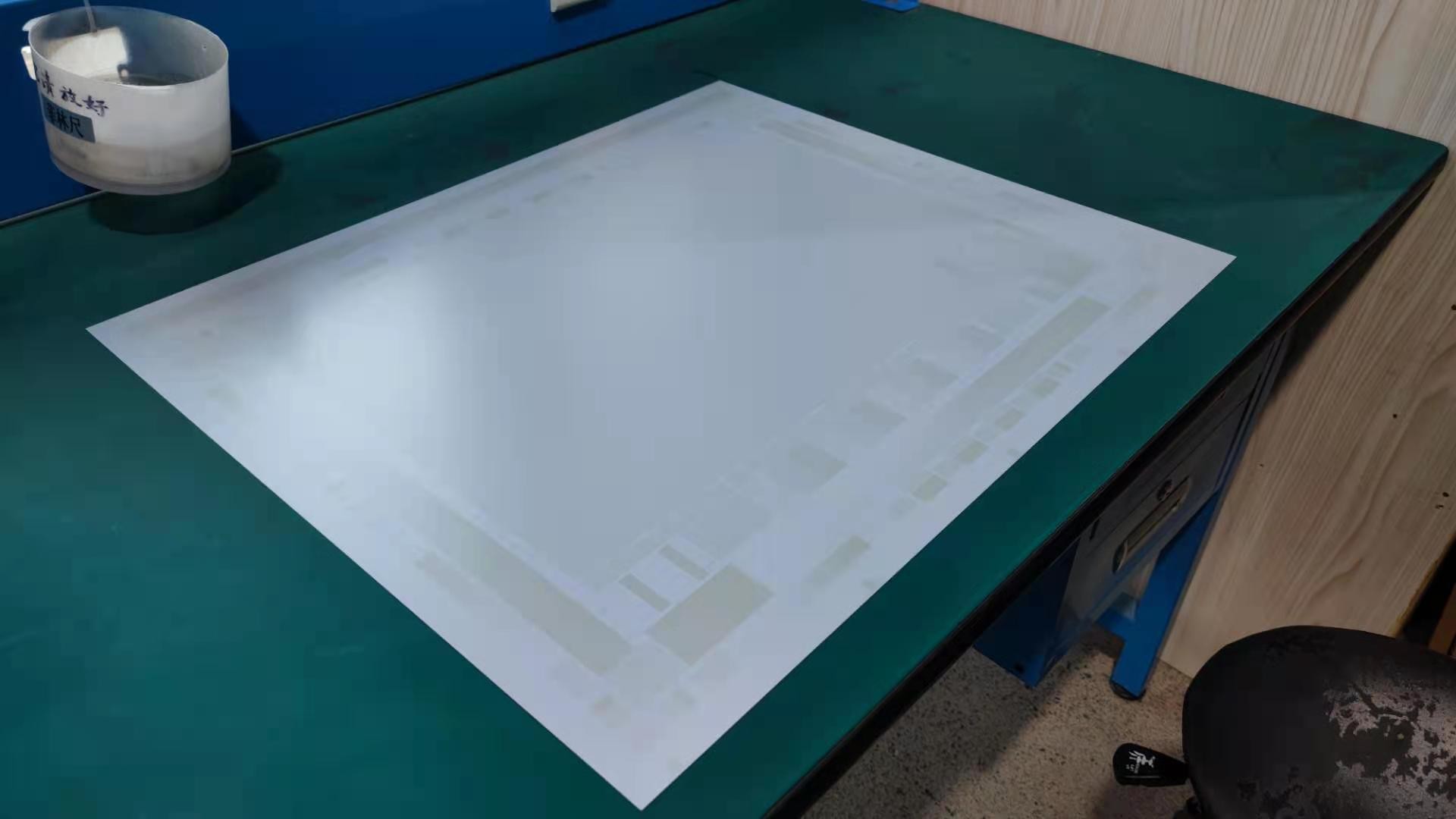

Long Run Positive PS CTP Plate For Offset Printing
1) Uniform surface coating and high photosensitive speed.
2) High resolution and higher press run.
3) Precise half-tone dot reproduction.
4) Faster Exposure and good stability.
Positive PS Plate
Commercial and newspaper printing
Electro chemically Grained and Anodized lithographic Aluminum
0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width
Maximum width 1280 mm
Power of light
3,000 - 5,000 w
Length of Run
Unbaked: 50,000 to 100,000 impressions
Baked: Over 100,000 impressions (dependent upon image resolution, press, press chemical, ink and paper conditions).
All brands or Manual
Standard 1050 Alloy
320 - 405 nm
1-99% @ 300LPI
Any positive plate developer or our own developer
0.80 - 1.20 m/min
Handle under yellow safe light(UV free)
12 months under recommended storage conditions
Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat and humidity
|Plate Type||Positive PS Plate|
|Application||Commercial and newspaper printing|
|Substrate||Electro chemically Grained and Anodized lithographic Aluminum|
|Gauge||0.15, 0.20, 0.25, 0.30, 0.40(mm)|
|Maximum short grain width||Maximum width 1280 mm|
|Power of light||3,000 - 5,000 w|
|Length of Run||Unbaked: 50,000 to 100,000 impressions
Baked: Over 100,000 impressions
(dependent upon image resolution, press, press chemical, ink and paper conditions).
|Processor||All brands or Manual|
|Aluminum||Standard 1050 Alloy|
|Developing time||20-30 sec|
|Spectral Sensitivity||320 - 405 nm|
|Resolution||1-99% @ 300LPI|
|Developer||Any positive plate developer or our own developer|
|Processing Speed||0.80 - 1.20 m/min|
|Safelight||Handle under yellow safe light(UV free)|
|Shelf life||12 months under recommended storage conditions|
|Packaging||Available in all standard formats, including bulk packaging options such as APL packaging|
|Storage and handing||Stored in a cool and dry environment, away from excessive cold, heat and humidity|
EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
4. Producing and Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container ?
A: About 20000-25000SQM.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
