Processless Chemistry DOP Plate Negative Working Thermal Plate

1000 sqm
MOQ
usd 4.7 per sqm
Price
Processless Chemistry DOP Plate Negative Working Thermal Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Model: ECOO-G
Plate Type: Thermal Plate Negative Working
Laser Wavelength: 800*850 Nm
Start Up Paper: Less Than 50 Sheets With Fountain Solution
Developer: No Need Of Developer
Shlef Life: 12 Months
High Light:

Processless Chemistry DOP Plate

,

Negative Working DOP Plate

,

850nm Thermal Plate

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: 50 sheets per carton with protection frame
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 1000000 sqm each year
Product Description

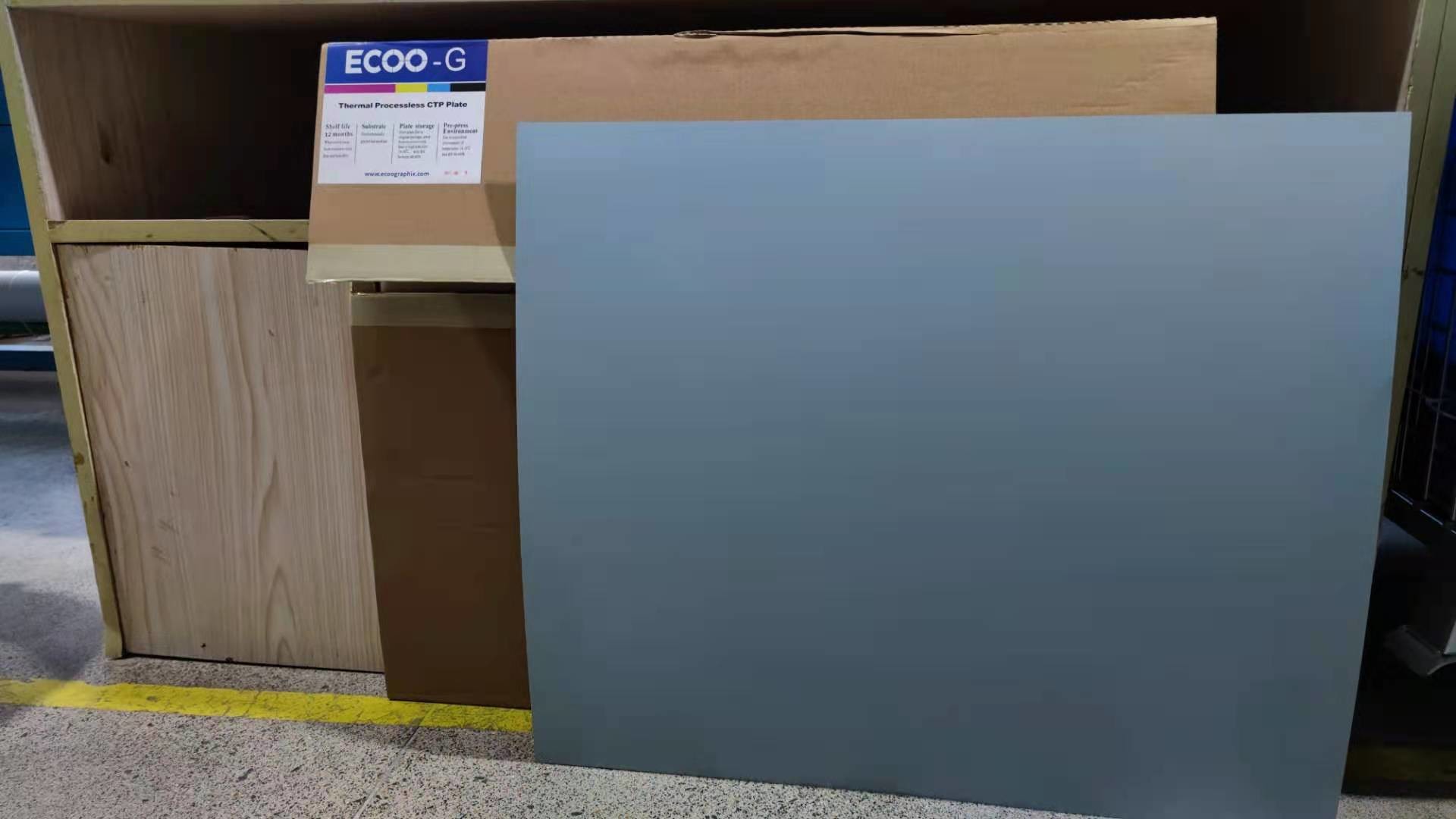

Negative working processless chemistry-free DOP plate-ECOO--G

Brief introuduction
ECOO-G is processless plate, which could be applied to printing machine directly after imaging without processing. Thus, it shorten the prepress procedures and save cost of developing and water treatment. The skip of developer also fits the trend of being envoronment friendly. Thus, it has more and more popularity.

Features
- negative writing thermal plate
- develops on press
- made with high grade aluminum from Europe
- eliminates need for processor and chemistry
- non-ablative coating
- run lengths up to 100, 000 impressions
- UV Ink up to 30, 000 impressions
- ability to print both AM and FM screening

Processless Chemistry DOP Plate Negative Working Thermal Plate 0

Technical data


Model ECOO-G
Plate Type thermal-negative type
Application High grade commercial, newspaper and package printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Maximum short grain width Maximum width 1280 mm
Spectrum sensitivity 800-850 nm
Photosensitive wave length 830 nm
Platesetter Various dominant thermal platesetters in the market
Coating color Light Grey
Low-energy imaging 130-150 mj/ m²

The period of latent
image stabilization

≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <20 sheets (fountain solution conductivity: 2000-3000μS, PH at lower range between 4-5)
Safety light Ambient light(<800 LUX) up to 4 hours
Processing Without processing, directly on press
Run Length

100,000 impressions

Actual run length depends on printing conditions

Shelf life 12 months with original sealed packaged
Transportation

Packed in seal and stored by means of prevention

from light, moisture, overheat and high humidity

Storage Recommended condition: 18℃-24℃, 40%-50% RH.


Advantages
- no processor required
- no chemistry to deal with
- elimination of processing time equates to more time available for other work
- price point makes this competitive with the AGFA Azura TS, FUJI Ecomaxx-T, Kodak Sonora XP


Benefits
- savings on chemistry and processor
- make-ready sheets savings
- savings on energy and water consumption
- quicker turn-around time on press
- frees up space in shops with space limitations


Application
*Suitable for sheet-fed offset press or high speed rotary offset press
*Run length: 100, 000 impressions
*Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain
Solutions.
*Unsuitable to improve run length by baking plates.


Contrast details
Processless Chemistry DOP Plate Negative Working Thermal Plate 1

plate structure
Processless Chemistry DOP Plate Negative Working Thermal Plate 2
FAQ
1. is a freezer container needed for the shipment?
No. It can be shipped by general container. When you receive the plate, please kindly store in air conditioned warehouse.
2. how long is the shelf life?
12 months in air conditioned warehouse. We recommend to use it within 10 months.
3. how about the lead time?
Normally 30-45 days.
