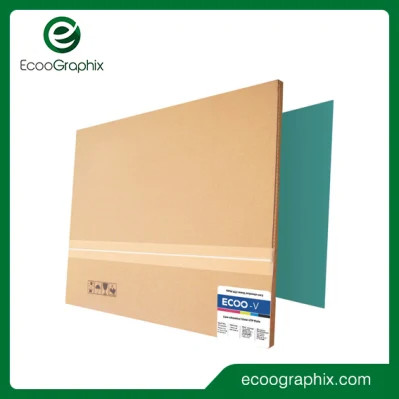

Eco-Friendly Long-Run Violet Offset Printing Plate
Introduction:
EcooGraphix Low-chemical Violet CTP Plate Ecoo-V can be used for newspaper printing. It is an environmental friendly product. Compared with normal Violet CTP plate, Ecoo-V keeps original photosensitive features and printing compatibility.
Specification:
Model | ECOO-V |
Plate Type | Low chemistry violet plate, negative printing |
Application | Newspaper Printing |
Substrate | Electro chemically Grained and Anodized Aluminum |
Gauge | 0.20, 0.25, 0.30, 0.40(mm) |
Maximum short grain width | Maximum width 1320 mm |
Developer | Developing gum |
Length of Run | Unbaked: 200,000 impressions; Baked: 500,000 impressions(dependent upon image resolution, press, press chemical, ink and paper conditions) |
Plate setters Capability | All the main brands violet CTP in market, laser power no less than 30 mw |
Aluminum | Standard 1050 Alloy |
Exposure energy | 50-60 μj/ cm²(based on plate setter and developing condition) |
Developing time | 20±3 sec |
Developing Temperature | 28±2 ºC |
Spectral Sensitivity | 405 nm |
Resolution | 150lpi (2-98%), under 1800dpi, 25μm line can be produced. |
Preheat | 95-121 ºC |
Brush Speed | 100 rpm |
Shelf life | 12 months under recommended storage conditions |
Storage and handling | Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 15-28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m' Open the box under yellow light. Sealed the box with remained plate to avoid moisture. |
Features:
1. Eco-Friendly: applied with low PH finisher during washout treatment, reducing chemical consumption and liquid waste
2. Stable Developing Performance: compatible with most brands of violet plate developer and less sensitive to PH value of finisher
3. Lower Investment and Maintenance Cost: can work with simplied processor, which removes prewash, post-rinse and gumming steps from conventional processor
4. Higher Run Length: outside protective layer protects sensitive layer from damage, making more impressions per plate.
Producing And Packaging:
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Certificates:
