Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix

1000 Square Meters
MOQ
Negotiable
Price
Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix
Features Gallery Product Description Request A Quote
Features
Specifications
Run Length With: Ordinary Ink Up To 100,000 Impressions, UV Ink Up To 50,000 Impressions
Coating: Two-layer System, IR Sensitive, Positive Acting
Exposure Energy: 110 - 130 MJ/Square Centimeter
Resolution: 1-99% At 200 LPI
Gauge: 0.15, 0.20, 0.25, 0.30, 0.40 (mm)
FM Capability: 20 Micron Stochastic
High Light:

Coating CTP Offset Printing Plate

,

Double Layer CTP Offset Printing Plate

,

Newspaper Printing CTP Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 15,000,000 Sqm Per Year
Product Description



 Double Layer Non-Ablative Coating Positive Thermal CTP Offset Printing Plate








 Application





EcooGraphix Double Layer Therrmal CTP Plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.








Characteristic





Features

- Positive writing thermal plate

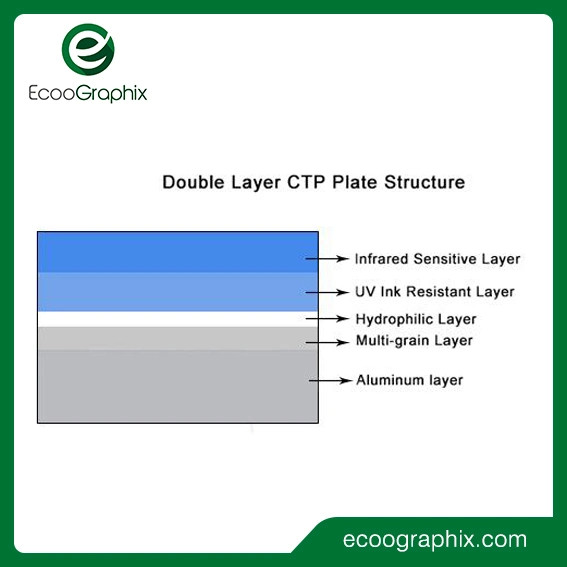

- Double layers system

- Made with high grade aluminum from Europe

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 100,000 impressions

- UV Ink up to 50,000 impressions

- Ability to print both AM and FM screening



Advantages

- Resist UV-ink; workable with both normal ink and UV ink

- Mature product, good stability and wide processing latitude

- Long run length with non-ablative coating

- Being adaptive to most of platesetters, processors and solutions








Specification



General Information
Model ECOO-ED
Plate Type
Positive Thermal CTP Plate
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy
Standard 1050 Alloy
Coating
Two-layer system, IR sensitive, positive acting
Gauage 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix
Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Run
Ordinary Ink: 100,000 to 200,000 impressions
UV Ink : 50,000 to 100,000 impressions
Exposing
Plate setters
Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen : PT-R,Creo : Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy
110 - 130 mJ/cm²
Spectral Sensitivity 800 - 850 nm - Peaks 830nm
Resolution 1-99% @ 200LPI
FM capability
20 micron stochastic
Image color
Blue Green to Pale Green
Developing
Processor
All the kind Brands.
Developer
Kodak Gold Star or our own developer
Processing temperature 23ºC+/-2ºC
Developing time
25 - 30 sec
Processing Speed 0.80 - 1.20 m/min
Storage and handing
Safe Light
Daylight handling
Shelf Life
12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity

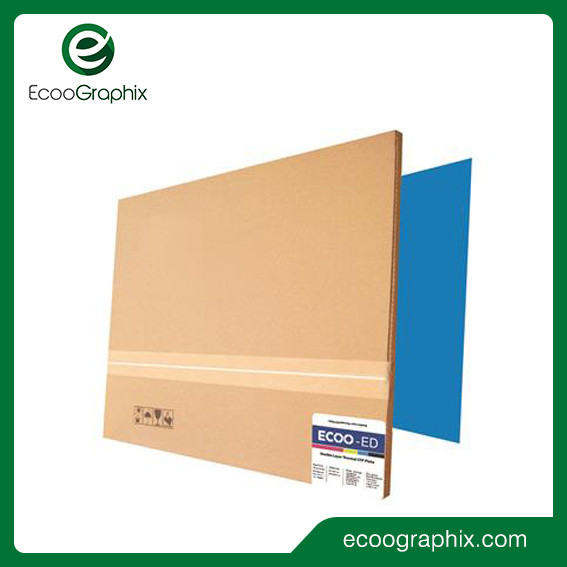

Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix 0








 Producing And Packaging





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

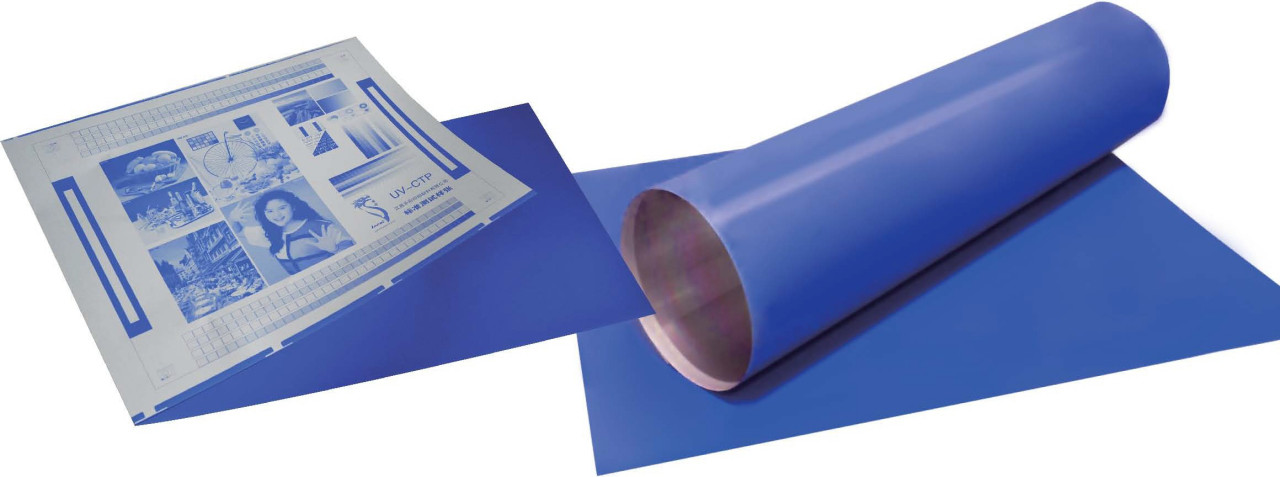

Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix 1

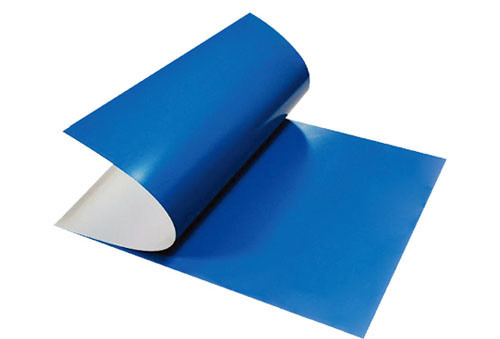

Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix 2



Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix 3



Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix 4



Double Layer Coating CTP Offset Printing Plate For Uv Ink Ecoographix 5
























FAQ





Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
