Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing

1000 Square Meters

MOQ

Negotiable

Price

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing

Features Gallery Product Description Request A Quote

Features

Specifications

Spectral Sensitivity: 405nm

Exposure Energy: 50-65 Uj/Square Centimeter

Resolution: 1-99% At 200 Lpi & 20 UFM.

Run-Length (Unbaked): 200, 000 Impressions Unbaked

Run-Length (UV Ink Unbaked): 70, 000 Impressions With UV Ink Unbaked

Run-Length (Baked): 1, 000, 000 Impressions Baked

Aluminum: Standard 1050 Alloy

Developing Time: 20 +/- 3 Sec

Highlight:

UV Positive CTP Plate

,

Aluminum Double Layer CTP Plate

,

405nm Offset Printing Plates

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-CTCP-D

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 30 Days

Payment Terms: L/C, T/T

Supply Ability: 2,000,000 Sqm Per Year

Gallery

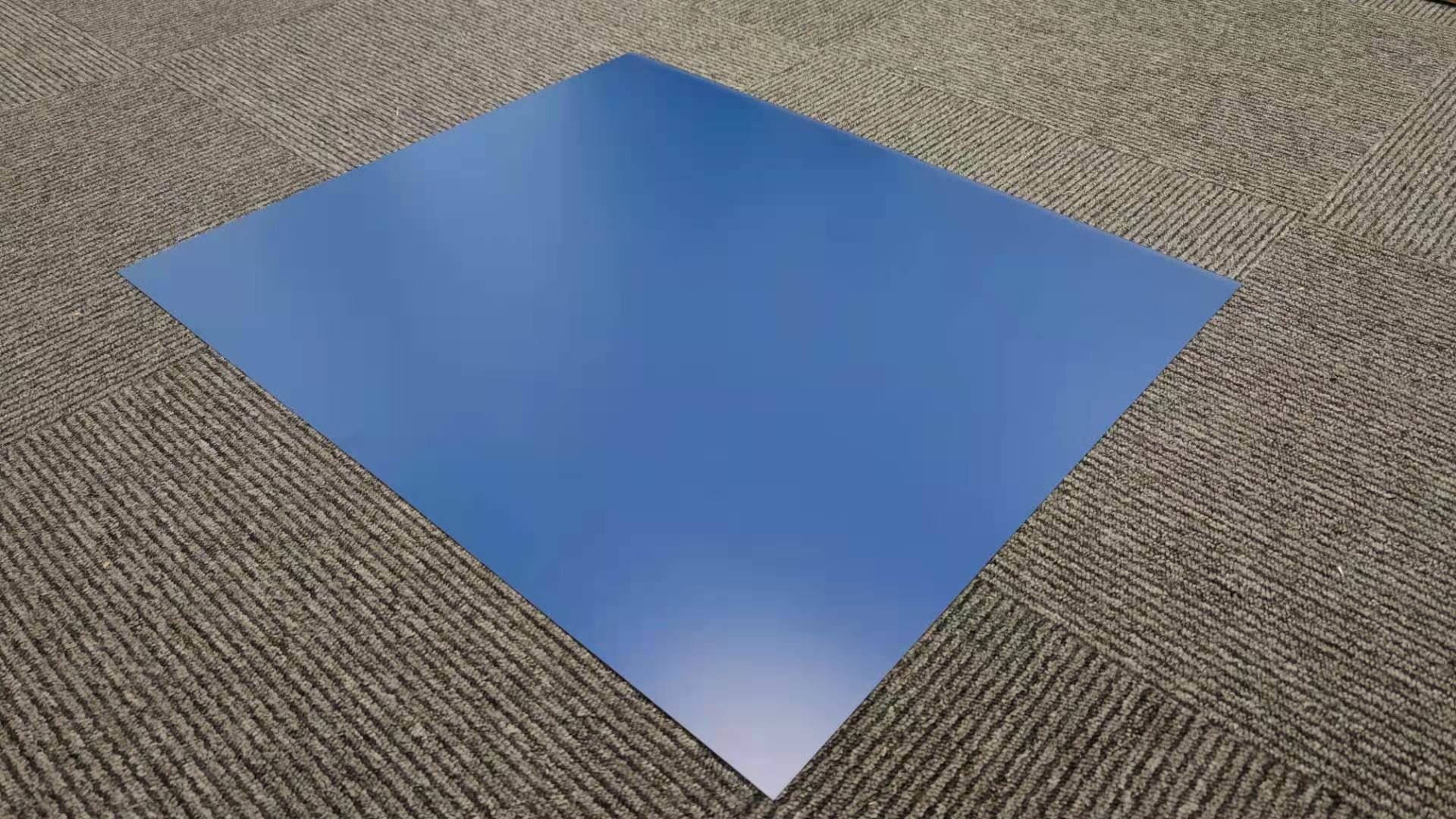

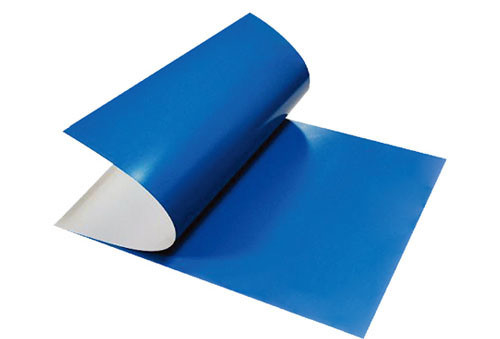

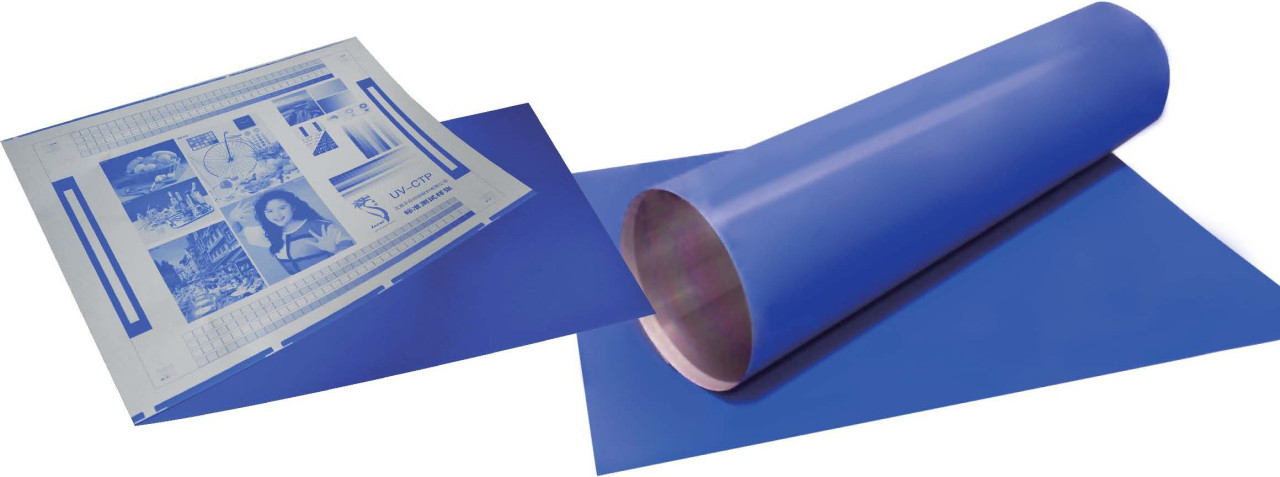

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing

Product Description

Printing Aluminum Plate High Sensitivity CTCP Double UV Positive CTP Plate

Introduction

EcooGraphix Positive CTCP Plate(Double Layer) are made for UV based ink. It is also compatible with an ordinary ink.

It is use for long run length high grade offset commercial and newspaper printing.

Specification

Model
ECOO-CTCP-D

Plate Type
No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing

Application
Newspaper Printing, commercial printing, and package printing

Substrate
Electrochemically Grained and Anodized Aluminum

Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1350 mm

Developer
Any positive plate developer or our own developer

Length of Run
200,000 impressions unbaked;
70,000 impressions with UV ink unbaked;
1,000,000 impression baked.

Plate setters Capability
All the main brands violet CTP in market, laser power no less than 30 mw

Aluminum
Standard 1050 Alloy

Exposure energy
50-65uj/ cm²(based on plate setter and developing condition)

Developing time
20±3 sec

Developing Temperature
28±2ºC

Spectral Sensitivity
405 nm

Resolution
1-99% @ 200 LPI & 20 uFM

Shelf life
12 months under recommended storage conditions

Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat.

Product highlight
High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate

Model	ECOO-CTCP-D
Plate Type	No preheat, positive working, UV sensitive plate, double coated, no need baking for UV ink printing
Application	Newspaper Printing, commercial printing, and package printing
Substrate	Electrochemically Grained and Anodized Aluminum
Gauge	0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1350 mm
Developer	Any positive plate developer or our own developer
Length of Run	200,000 impressions unbaked; 70,000 impressions with UV ink unbaked; 1,000,000 impression baked.
Plate setters Capability	All the main brands violet CTP in market, laser power no less than 30 mw
Aluminum	Standard 1050 Alloy
Exposure energy	50-65uj/ cm²(based on plate setter and developing condition)
Developing time	20±3 sec
Developing Temperature	28±2ºC
Spectral Sensitivity	405 nm
Resolution	1-99% @ 200 LPI & 20 uFM
Shelf life	12 months under recommended storage conditions
Storage and handing	Stored in a cool and dry environment, away from excessive cold, heat.
Product highlight	High sensitivity; Extend laser life for image setter; Grain efficiency; Positive CTCP plate

Characteristic

- Positive writing CTCP (conventional) plate

- Double layers system

- Made with high grade aluminum from Europe

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 80,000 impressions

- UV Ink up to 50,000 impressions

- Ability to print both AM and FM screening

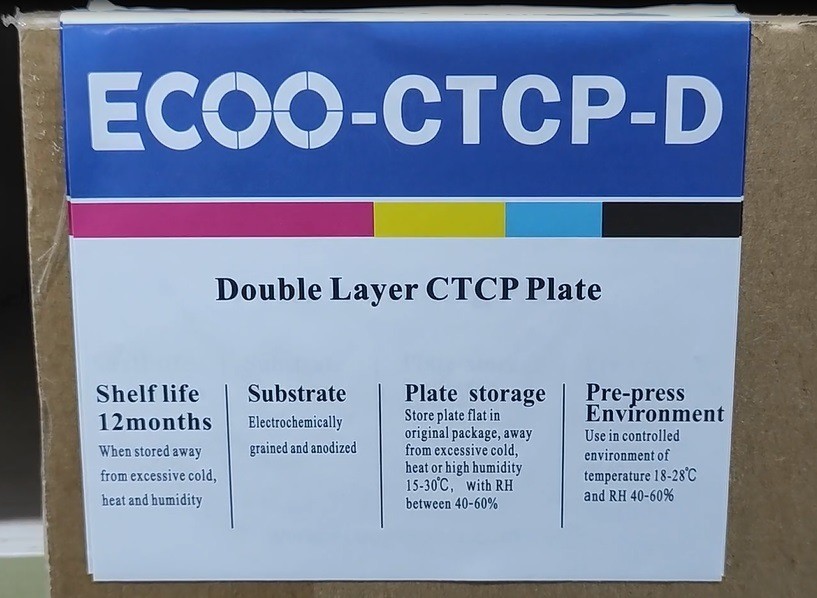

Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 0

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 1

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 2

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 3

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 4

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 5

Certificates

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 6

Aluminum Double Layer UV Positive CTP Plate High Sensitivity For Offset Printing 7

FAQ

Q1: Can I get the sample ?

A: We are very glad to provide some sample for you to test.
We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight ?

A: The Air freight depends on the packing size and weight, and the delivery destination.

Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready ?

A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory ?

A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,
which is about 1.5 hours by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container ?

A: About 20000-25000SQM.

Q6: Can I take my own brand and label on the packing ?

A: Yes, we can provide the OEM with the customer's brand and label.
