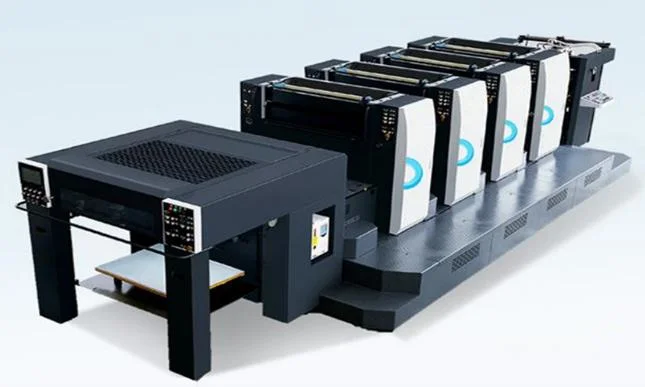

Ecoo JY 41050 Four Color Offset Printing Machine
1. Vacuum suction variable speed belt type paper feeding, paper feeding synchronous adjustment mechanism;
2. Conjugate cam driven downward swinging paper transfer mechanism;
3. The pneumatic side gauge, front gauge, and paper pressing tongue are separated, and the front gauge moves up and down in a reciprocating motion, which can be adjusted as a whole in front, back, and tilt. The paper pressing tongue swings in a fixed axis;
4. One line paper roller, printing roller arranged at seven o'clock, with shoulder iron printing;
5. The adjustment of the biting force and biting time of the embossing drum is completed by the torsion spring rod and eccentric bearing;
6. Air cushion guide plate paper feeding;
7. Remote control partition ink hopper, controlled by 32 ink spoon motors, can adjust and change the ink supply amount on the central console;
8. The short ink path system with 08.16 ink rollers ensures fast ink control reaction speed, while increasing the diameter of the ink rollers to ensure a certain amount of ink storage;
9. The ink path system has an automatic separation function, which can quickly achieve ink water balance during the printing process;
10. The intermediate roller can choose different working methods based on the size of printing ink volume;
11. The paper buffer adopts a separate motor drive, frequency converter control, and stepless speed regulation method. The appropriate working speed can be selected according to the actual printing conditions;
12. Optional water roller speed change device. After the function is activated, dirt such as ink and paper fuzz are removed from the printing plate under the effect of speed difference.
| Model | Ecoo JY 41050 |
| Max. Sheet size(mm) | 740*1050mm |
| Min. Sheet size(mm) | 360*520mm |
| Machine speed | 13000sph |
| Paper thickness | 0.06-0.8mm |
| Max.image area | 720*1020mm |
| Plate size | 788*1050*0.3mm |
| Blanket size | 910*1060*1.95mm |
| Max.feeder pile height | 1180mm |
| Max.delivery pile height | 1080mm |
| Motor power | 37kw |
| Machine size | 9560*3450*2150mm |
| Weight | 36000kg |
66
1) the PLC for this machine is Panasonic from japan, it is of long life time. As you know, the program like the heart for a person, it is very important.so this part we use the famous brand panasonic, and we could supply all- life guarantee. And the program is made by company,it is easy to use and change.
2) Automatic oil supply system, you don`t need to oil the machine by hand, you just set it in the touch screen, for example, you could set when the machine run 2000 runs, then it will oil to the gear and spare parts automaticly.
3)The motor is wannan, and we supply the all-life change service. No matter how many years you use our machine, if there is problem, then we could repair and change for you freely.
4) The feeder guide is from hamada machine, and it is much heavier and stronger, even machine working, it will not easy to moving around, it could keep the printing of high precision.
