Product Description
Application:

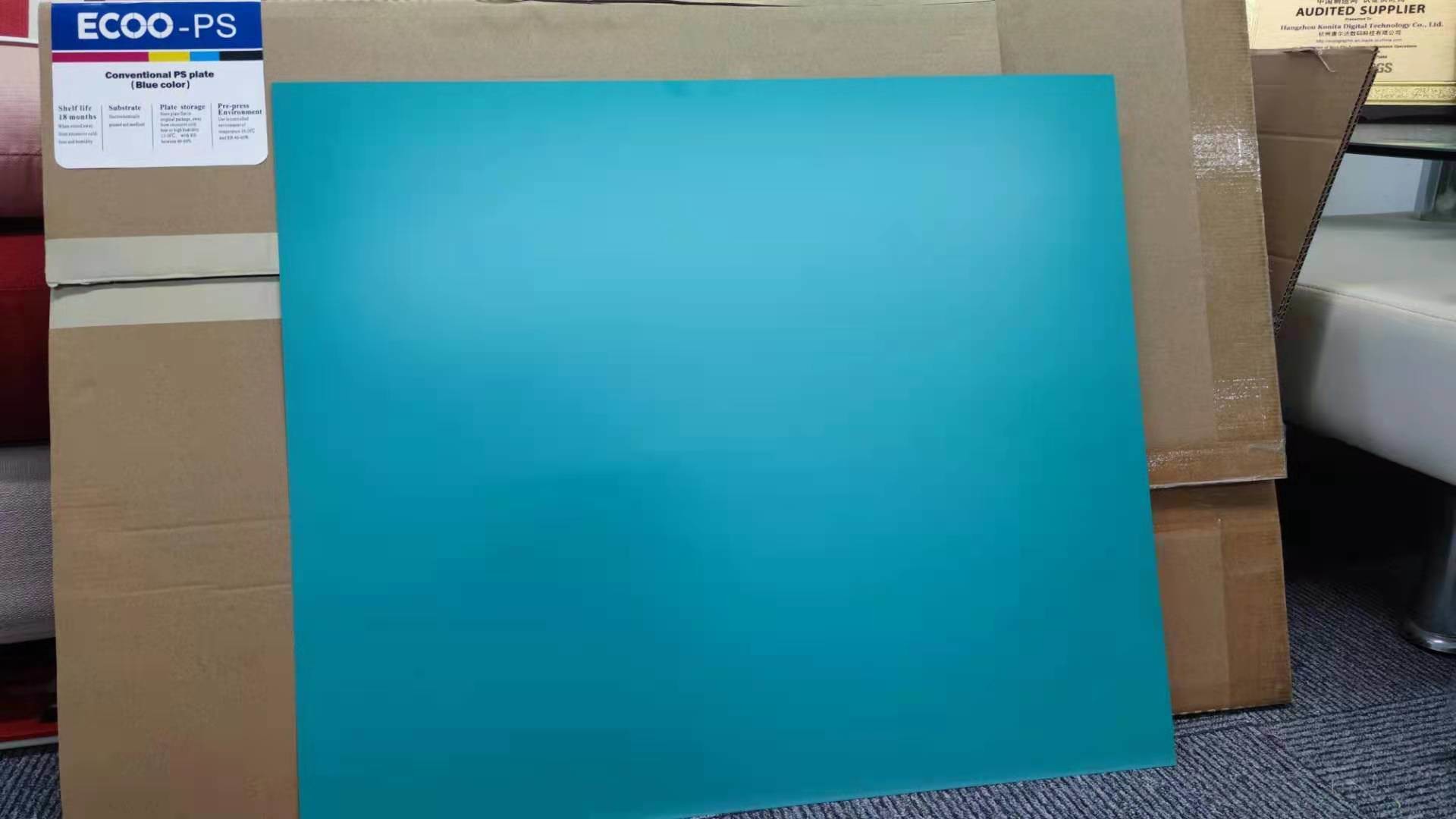

EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing.
Unique production technology and high quality materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
Characteristic:
-Uniform surface coating and high photosensitive speed -High resolution and higher press run
-Precise half-tone dot reproduction -Faster Exposure and good stability
Specification
| General Information | |
| Plate Model | ECOO-PS |
| Plate Type | Positive PS Plate/ Conventional Analog Plate |
| Application | Commercial and newspaper printing |
| Substrate | Electro chemically Grained and Anodized lithographic Aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Green |
| Gauge | 0.15,0.20, 0.25,0.30, 0.40 (mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Press Runs | Unbaked: 50000 to 80,000 impressions Baked: Over 100000 impressions |
| Exposing | |
| Power of light | 3000 - 5000 W |
| Exposure energy | 80 - 180 mJ/cm |
| Resolution | 2 - 98% LPI 200 |
| Photosensitive wave length | 320 - 405nm |
| Developing | |
| Processor | All the kind Brands or Manual |
| Developer | Any Positive plate developer or our own developer |
| Processing temperature | 20 - 25°C |
| Developing time | 20 - 30 sec |
| Storage and handling | |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
Workflow
Producing and Packing
More details
FAQ
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
