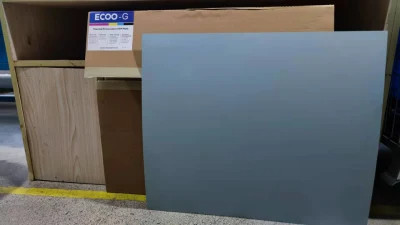

Processless Thermal Aluminum CTP Plate

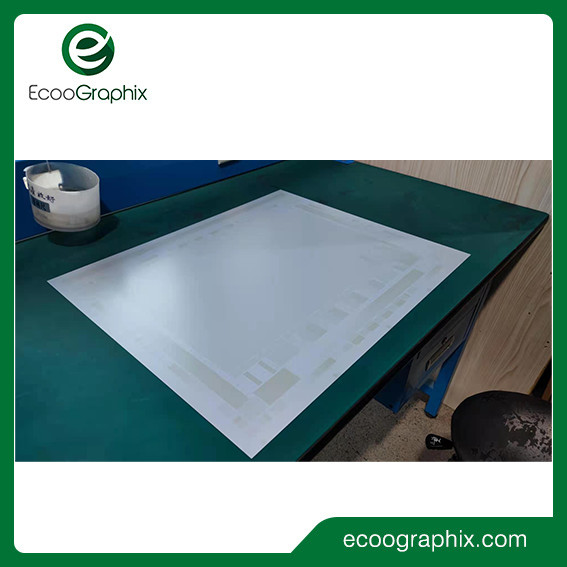

ECOO-G plate can be run on press machine directly after CTP exposing, no need chemistry processing.
ECOO-G thermal plate is a new environmental-friendly processless printing plate, as same as Sonora XP.
1. Introduction Of ECOO-G
Model ECOO-G
Plate Type Thermal-negative type
Application High grade commercial and newspaper printing

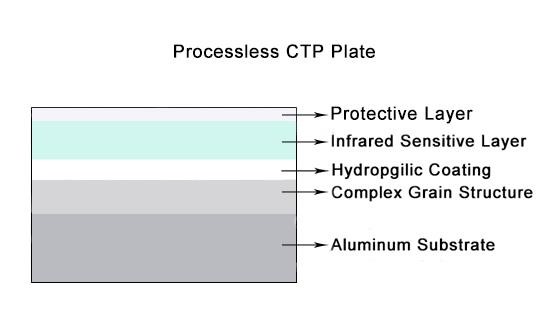

Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Maximum short grain width Maximum width 1280 mm
Spectrum scope 800-850 nm
Photosensitive wave length 830 nm
Platesetter Various dominant thermal platesetters in the market
Coating color Grey
Low-energy imaging 130-150 mj/ cm²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <50 sheets
Safety light 4 hours under yellow light; 1 hour under fluorescent lamp;
Direct exposure under natural light is safe but not recommended.
Processing Without processing, directly on press
Run Length 100,000 impressions Actual run length depends on printing conditions
Shelf life 12 months under recommended condition
Transportation Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity
Storage Recommended condition: 18ºC-24ºC, 40%-50% RH.
| Plate Technical Specification | |
| Model | ECOO-G |
| Plate Type | Non-ablation thermal-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.30mm |
| Spectrum scope | 800-850nm |
| Platesetter | Various dominant thermal platesetters in the market |
| Low-energy imaging | 130-150 mj/ m² |
| The period of latent image stabilization | ≤7 days |
| Recommended screen method | 1-99% @200 LPI AM or 20μm FM or mixture |
| The paper number of start-up | <50 sheets |
| Safety light |
4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended. |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions, actual run length depends on printing conditions |
| Baking | No recommended |
| Maximum short grain width | Maximum width 1280 mm |
| Photosensitive wave length | 830 nm |
| Coating color | Grey |
| Shelf life | 12 months under recommended condition |
| Transportation | Packed in seal and stored by means of prevention |
| from light, moisture, overheat and high humidity | |
| Storage | Recommended condition: 18ºC-24ºC, 40%-50% RH. |
Comparing With The Plate Of Kodak Sonora XP
| Features | ECOO-G | Kodak Sonora XP |
| Sensitive wavelength(nm) | 800-850 | 800-850 |
| Coating color | Light green | Light green |
| Sensitivity (mj/cm2 ) | 150 | 150 |
| Exposure in safe light | White light 1 hour; yellow light 24 hours | White light 1 hour; yellow light 24 hours |
| After image contrast | Can be spotted by eyes, but auto punching machine cannot recognize it |
Can be spotted by eyes, but auto punching machine cannot recognize it |
| Imaging device | Normal thermal CTP device 1-99% @ 200lpi |
Normal thermal CTP device 1-99% @ 200lpi |
| Resolution | 1-99% @ 200lpi (dependent on CTP capability) |
1-99% @ 200lpi (dependent on CTP capability) |
| Run-length | 100,000 | 100,000 |
| Storage | 12 month (under recommend environment) | 12 month (under recommend environment) |
Applied parameters In Imaging Device
| Data | Kodak Trendsetters | LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 15- 17W | 300-320mw | 19.5-21.5W | 80-90 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus/Zoom | Focus/Zoom | Focus/Zoom | Focus/Zoom |
Producing and Packing
2. Worldwide Top Standard Production Line: 240meters long, 40meters per minute.
3. Three Steps QC Control
Workflow
More details
FAQ
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
