Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing

1000SQM
MOQ
Negotiable
Price
Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Processless DOP Plate
Material: Electrolyte Graining And Anodized AL Substrate
Thickness: 0.15mm / 0.30mm
Maximum Short Grain Width: Maximum Width 1280 Mm
Run Length: 100,000 Impressions Actual Run Length Depends On Printing Conditions
Shelf Life: 12 Months Under Recommended
Storage: Recommended Condition: 18℃~24℃, 40%-50% RH.
High Light:

Ctcp Processless DOP Plate

,

Negative Chemistry Free CTP Printing Plates

,

Offset Printing DOP Plate

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: ECOO-H
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 2000, 000 Sqm Per Year
Product Description

Processless DOP Plate CTCP (Development on Press)



Product Description



INTRODUCTION OF ECOO-H



ECOO-H is the latest product with unique technology in the field of ultraviolet computer to plate.

Light sensitive coating with chemistry-free processing variables deliver the options of plate making from either development on press or development in low chemistry solution. With KLP-CF, one can be more competitive, reduce cost, gain efficiency and achieve "green" printing.



ADVANTAGE



-high sensibility -gain efficiency -negative CTCP plate -extend laser life of image setter

-short plate imaging chain in prepress room -green plate, low pollution, low cost in water treatment







Specifacation




Application
Suitable for sheet-fed offset press or high speed rotary offset press.
Run length: 100000 impressions
Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions.
Unsuitable to improve run length by baking plates.


Advantages
- no processor required
- no chemistry to deal with
- elimination of processing time equates to more time available for other work
- price point makes this competitive with the AGFA Azura TS, FUJI Ecomaxx-T, Kodak Sonora XP


Benefits
- savings on chemistry and processor
- make-ready sheets savings
- savings on energy and water consumption and treatment
- quicker turn-around time on press
- frees up space in shops with space limitations


Package, Transpotation and Storage
Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity.
For thickness 0.15mm, 100 pcs packed togrther to fit a carton.
For thickness from 0.2 mm to 0.4mm, 50 ocas packed in a separate carton.
Recommended conditions: 18ºC-24ºC, 40%-50% RH
Transpotation: Can be shipped to you by sea, air or express, or pick up from our Czech or Canada warehouse.



Plate Technical Specification
Model ECOO-G
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Spectrum scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy imaging 130-150 mj/ m²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <50 sheets
Safety light 4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing Without processing, directly on press
Run Length 100,000 impressions, actual run length depends on printing conditions
Baking No recommended
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 830 nm
Coating color Grey
Shelf life 12 months under recommended condition
Transportation Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity
Storage Recommended condition: 18ºC-24ºC, 40%-50% RH.





Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 0



Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 1



Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 2

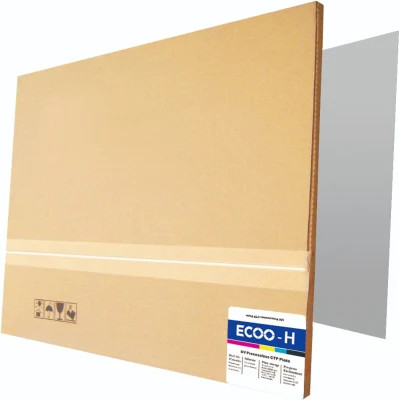

Producing and Packing




Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 3



Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 4



Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 5



Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 6





Workflow




Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 7



More details




Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 8



Processless DOP Plate Negative Chemistry Free Ctcp For Offset Printing 9



FAQ




Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
