Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate

1000SQM

MOQ

Negotiable

Price

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Double Layered Positive Thermal CTP Plate

Application: High Grade Commercial And Newspaper Printing

Resolution: 1-99% At 200 LPI

Coating: Two-layer System, IR Sensitive, Positive Acting

Gauge: 0.15,0.20, 0.25,0.30, 0.40 (mm)

Length Of Run: Ordinary Ink: 100,000 To 200,000 Impressions UV Ink : 50,000 To 100,000 Impressions

Exposure Energy: 110 - 130 MJ/cm²

Spectral Sensitivity: 800-850 Nm – Peaks 830nm

Highlight:

Thermal CTP Aluminum Plate

,

Double Layered Positive CTP Plate

,

0.40mm Thermal CTP Plate

Basic Infomation

Place of Origin: CHINA

Brand Name: ECOOGRAPHIX

Certification: ISO, CE

Model Number: ECOO-ED

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 2000,000 sqm per year

Gallery

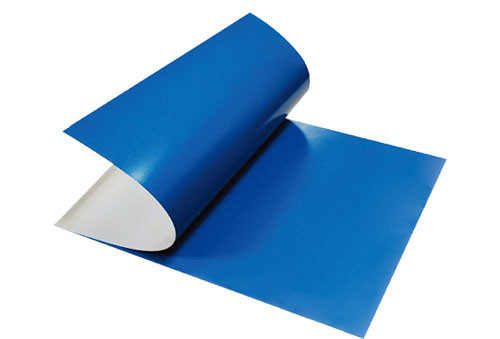

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate

Product Description

Double Layered Positive Thermal CTP Plate ECOO-ED

ECOO-ED double-layered thermal CTP plate technology uses a highly chemical resistance second layer which allows you to enjoy the long-run printing without baking needed.

Compared to single-layered CTP plate, ECOO-ED has combined with high sensitivity, strong resistance and ability to print both AM and FM screening.

Product Description

Advantages

- Long run length with non-ablative coating - Resist UV-ink; workable with both normal ink and UV ink

- Mature product, good stability and wide processing latitude

- Being adaptive to most of platesetters, processors and solutions.

Features
-Positive writing thermal plate -Double layers system -Made with high grade aluminum from Europe
-Wide adaptability for different plate setter brands -Non-ablative coating
-Run lengths up to 100,000 impressions -UV Ink up to 50,000 impressions -Ability to print both AM and FM screening

Specification

Plate Model	ECOO-ED
Plate Type	Positive Thermal CTP Plate(Double Layer)
Application	High grade commercial and newspaper printing
Substrate	Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy	Standard 1050 Alloy
Coating	Two-layer system, IR sensitive, positive acting
Gauge	0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width	Maximum width 1280 mm
Plate intermix	Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Press Runs	Ordinary Ink: 100,000 to 200,000 impressions UV Ink : 50,000 to 100,000 impressions
CTP Plate Making Machine Plate setters	Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter Screen : PT-R,Creo : Scitex EcooGraphix Thermal CTP Tseries
Exposure energy	110 - 130 mJ/cm²
Spectral Sensitivity	800-850 nm – Peaks 830nm
Resolution	1-99% at 200 LPI
Image color	Blue
FM capability	20 micron stochastic
Image color	Blue Green to Pale Green
Processor	All the kind Brands.
Developer	Kodak Gold Star or our own developer
Processing temperature	23°C +/- 2°C
Developing time	25 - 30 sec
Processing Speed	0.80 – 1.20 m/min
Safelight	Daylight handling
Shelf Life	12 months under recommended storage conditions
Packaging	Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling	Stored in a cool and dry environment, away from excessive cold, heat and humidity.

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate 0

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate 1

About US

EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate 2

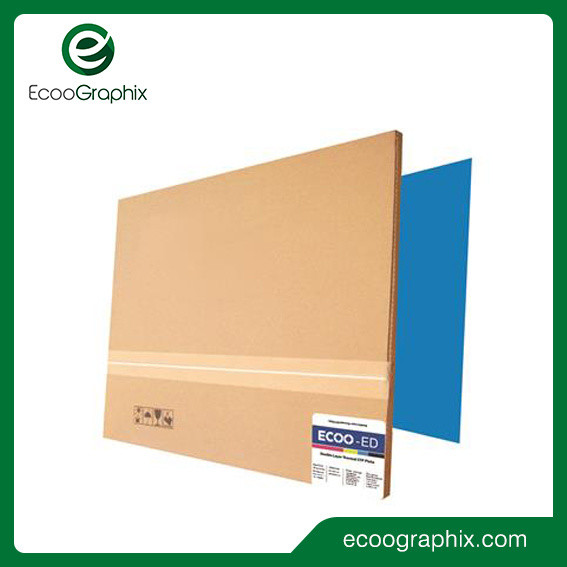

Producing and Packing

Normally 50 pcs are packed together in a carton with wood surroundings. Cartons in same size are packed in a carton with binding and protective layers.
Storage: stored in a cool and dry environment, away from excessive cold, heat and humidity.

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate 3

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate 4

Double Layered Positive Thermal CTP Plate Offset Printing Aluminum Plate 5

FAQ

Q1: Can I get a sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can ber returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
