Processless Thermal CTP Plate Negative Working For Offset Printing

1000 Square Meters
MOQ
Negotiable
Price
Processless Thermal CTP Plate Negative Working For Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Processless Thermal CTP Plate
Thickness: 0.15mm / 0.30mm
Processing: Without Processing,directly On Press
Run Length: 100,000 Impressions
The Paper Number Of Start Up: <50 Sheets
Application: High Grade Commercial And Newspaper Printing
Spectrum Scope: 800-850nm
Low-energy Imaging: 130~150mJ/sqm
High Light:

Thermal Negative Ctp Plate

,

Newspaper Printing Processless Plates

,

Thermal Negative Processless Ctp Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-G
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 45-60Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000, 000sqm/Year
Product Description



Processless Thermal CTP Plate



Processless plate combines eco-friendly operation, excellent quality and is easy to use.

Best in class chemical-free Direct-on-Press printing plate for classic sheetfed printing applications.



Product parameters



Model: ECOO-G



Thickness: 0.15mm / 0.30mm Spectrum scope: 800-850nm



Type: thermal negative processless plate



Low-energy imaging: 130~150mJ/cm²



Suitable for: high grade commercial and newspaper printing



Platesetter: Various dominant thermal platesetters in the market



Run Length: 100,000 impressions,actual run length depends on printing conditions



Advantage The Plate



- Capable of bright room operation. - High resolution and precise half tone dot reproduction.

- High development tolerance level and convenient operation.

- High quality aluminum, composite grain and high press runs.



Specification



ECOO-G break all environmental and cost records.

The printing plates are washed out directly in the printing press.

Thus, the system does not require a processor, chemistry or water, resulting in lower energy consumption and minimizing maintenance costs.



Model Processless plate
Plate Type Non-ablation thermal-negative type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Spectrum scope 800-850nm
Platesetter Various dominant thermal platesetters in the market
Low-energy imaging 130-150 mj/ m²
The period of latent image stabilization ≤7 days
Recommended screen method 1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up <50 sheets
Safety light

4 hours under yellow light; 1 hour under fluorescent lamp;

Direct exposure under natural light is safe but not recommended.

Processing Without processing, directly on press
Run Length 100,000 impressions, actual run length depends on printing conditions
Baking No recommended
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 830 nm
Coating color Grey
Shelf life 12 months under recommended condition
Transportation

Packed in seal and stored by means of prevention from light, moisture, overheat

and high humidity

Storage Recommended condition: 18ºC-24ºC, 40%-50% RH.


   Comparing With The Plate Of Kodak Sonora XP



Features ECOO-G Kodak
Sonora XP
Sensitive wavelength(nm) 800-850 800-850
Coating color Light green Light green
Sensitivity (mj/cm2 ) 150 150
Exposure in safe light White light 1 hour; yellow light 24 hours White light 1 hour; yellow light 24 hours
After image contrast Can be spotted by eyes,
but auto punching machine cannot recognize it
Can be spotted by eyes, but
auto punching machine cannot recognize it
Imaging device Normal thermal CTP device 1-99% @ 200lpi Normal thermal CTP device 1-99% @ 200lpi
Resolution 1-99% @ 200lpi
(dependent on CTP capability)
1-99% @ 200lpi
(dependent on CTP capability)
Run-length 100,000 100,000
Storage 12 month (under recommend environment) 12 month (under recommend environment)



Applied parameters In Imaging Device



Data Kodak
trendsetters
LOTTEM
400(TH1.7)
MAGNUS 400 Screen 8600S
Laser power 15- 17W 300-320mw 19.5-21.5W 80-90 %
Drum speed 250-300rpm 850-900rpm 400-450rpm 800-900rpm
Resolution Customized Customized Customized Customized
Parameter that Focus/ Focus/ Focus/ Focus/
need set up Zoom Zoom Zoom Zoom

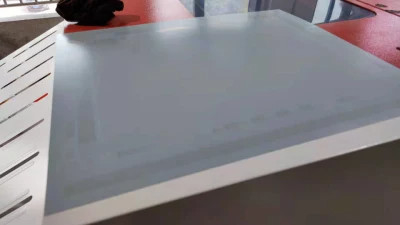

Processless Thermal CTP Plate Negative Working For Offset Printing 0

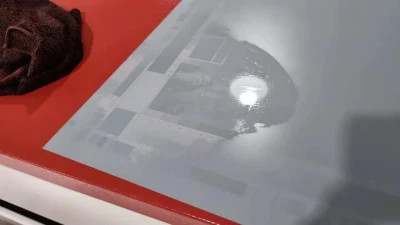

Processless Thermal CTP Plate Negative Working For Offset Printing 1

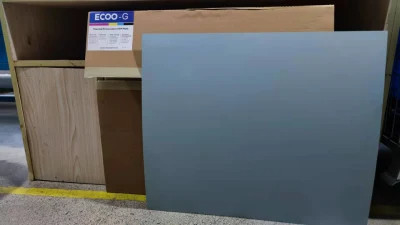

Packing and Producing



Processless Thermal CTP Plate Negative Working For Offset Printing 2

Processless Thermal CTP Plate Negative Working For Offset Printing 3



Processless Thermal CTP Plate Negative Working For Offset Printing 4



Workflow




 Processless Thermal CTP Plate Negative Working For Offset Printing 5





FAQ


Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.



Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
