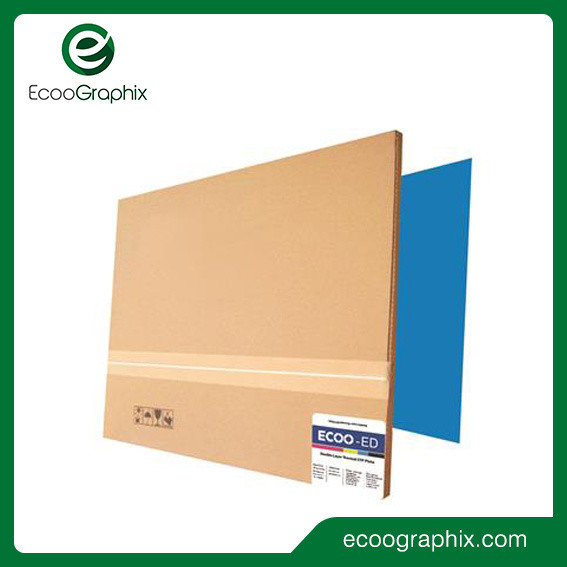

Digital CTP Double Layer Positive Thermal Printing Plate

1000 Square Meters
MOQ
Negotiable
Price
Digital CTP Double Layer Positive Thermal Printing Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTP Plate
Exposure Energy: 110 - 130Mj/Square Centimenter
Resolution: 1-99% @200Lpi
Run-Length (Unbaked): 200, 000 Impressions
Processing Speed: 0.80 -1.20 M/min
Developing Time: 25-30 Sec
High Light:

CTP Positive Thermal Printing Plate

,

Digital CTP Thermal Printing Plate

,

0.40mm Gauges Thermal Printing Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-ED
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description



Digital CTP Double Layer Positive Thermal Printing Plate









 ♜ Application





EcooGraphix Thermal Positive Double Layer CTP plate can be used for high grade commercial and newspaper printing. It can also be used for the UV ink printing with perfect performance.












 ♖ Specification





Model
ECOO-ED

Plate Type
Positive Thermal Digital Plate


Application
Commercial, newspaper and package print
ing

Substrate
Electro chemically grained and Anodized lithographic aluminum


Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1280 mm


Coating

Two-layer system, IR sensitive, positive acting


Length of Run
Unbaked: 200,000 impressions
UV Ink: 50,000 impressions


Plate setters
All thermal CTP machine

Aluminum
Standard 1050 Alloy


Exposure energy
110 - 130 mj/cm²

Developing time
25 - 30 sec


Spectral Sensitivity
780 - 850 nm

Resolution
1-99% @ 400LPI


Developer
ECOO DV-T Series Developer

Processing temperature
23ºC +/-2ºC


Processing Speed
0.80 - 1.20 m/min

Safelight
Daylight handling


Shelf life
12 months under recommended storage conditions

Packaging
Available in all standard formats, including bulk packaging options such as APL packaging


Storage and handling
Stored in a cool and dry environment, away from excessive cold, heat and humidity





Model ECOO-ED
Plate Type Thermal CTP Plate, Double Layer
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Gauge 0.15, 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Coating Two-layer system, IR sensitive, positive acting
Length of Run

Ordinary Ink: 100,000 to 200,000 impressions

UV Ink: 30,000 to 50,000 impressions

Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 110– 130 mj/ m²
Developing time 25-30 sec
Spectral Sensitivity 800 – 850 nm – Peaks 830nm
Resolution 1-99% @ 200LPI
Image Color Blue
Developer Kodak Gold Star or our own developer
Processing temperature 23℃+/-2℃
Processing Speed 0.80 – 1.20 m/min
safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity

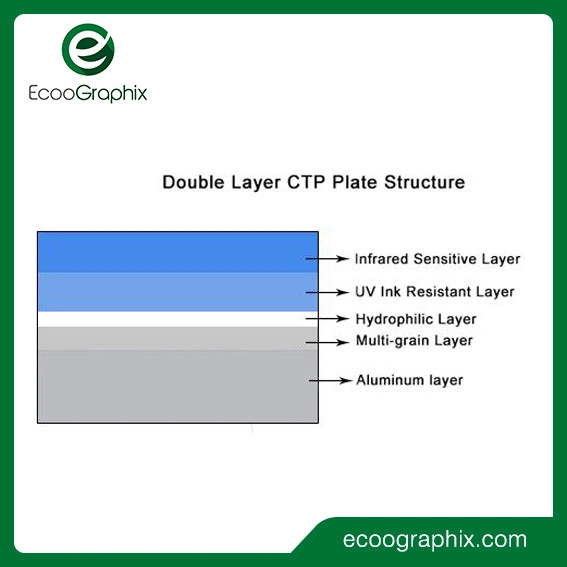

 ♞ Characteristic





Digital CTP Double Layer Positive Thermal Printing Plate 0



Benefits

- Extensive adaptability, saving from waste during possible swift of consumables' supplying

- Quick turn around time on press

- Compatible with common developers

- Premium quality of dot reproduction and super long run length

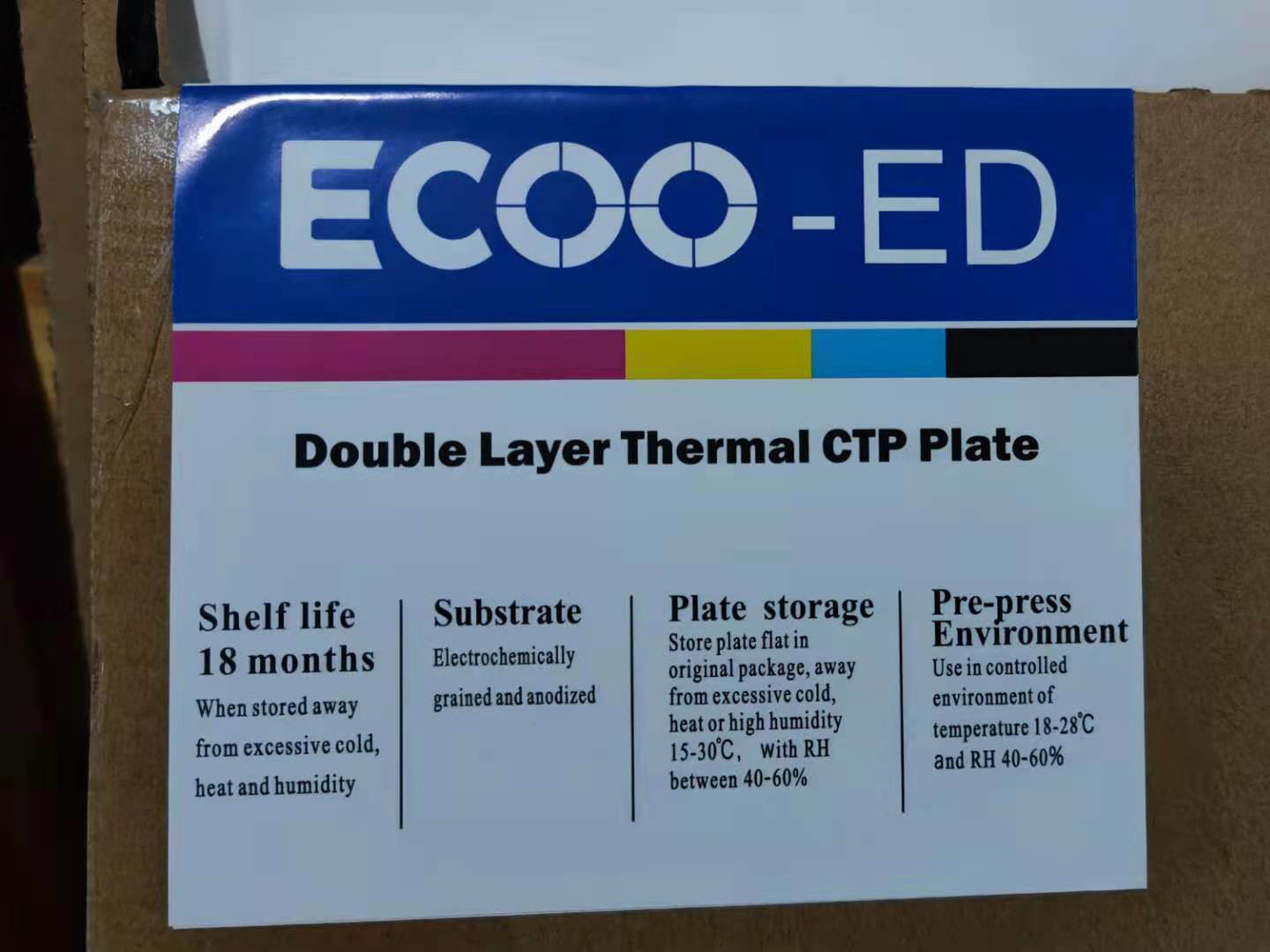

 ♘ Producing And Packaging





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Digital CTP Double Layer Positive Thermal Printing Plate 1



Digital CTP Double Layer Positive Thermal Printing Plate 2



Digital CTP Double Layer Positive Thermal Printing Plate 3





Digital CTP Double Layer Positive Thermal Printing Plate 4



Digital CTP Double Layer Positive Thermal Printing Plate 5

Digital CTP Double Layer Positive Thermal Printing Plate 6







 ♝ Certificates





Digital CTP Double Layer Positive Thermal Printing Plate 7



Digital CTP Double Layer Positive Thermal Printing Plate 8








 ♗ FAQ





Q1: Can I get the sample ?


A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





Q2: What is the cost for the CTP plate sample freight ?


A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.





Q3: How long can the sample be ready ?


 A: It usually takes about 3 days to prepare the sample.





Q4: Can I visit your factory ?


A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.





Q5: How many square meters CTP plates can feed one 20' container ?


A: About 20000-25000sqm.





Q6: Can I take my own brand and label on the packing ?


A: Yes, we can provide the OEM with the customer's brand and label.
