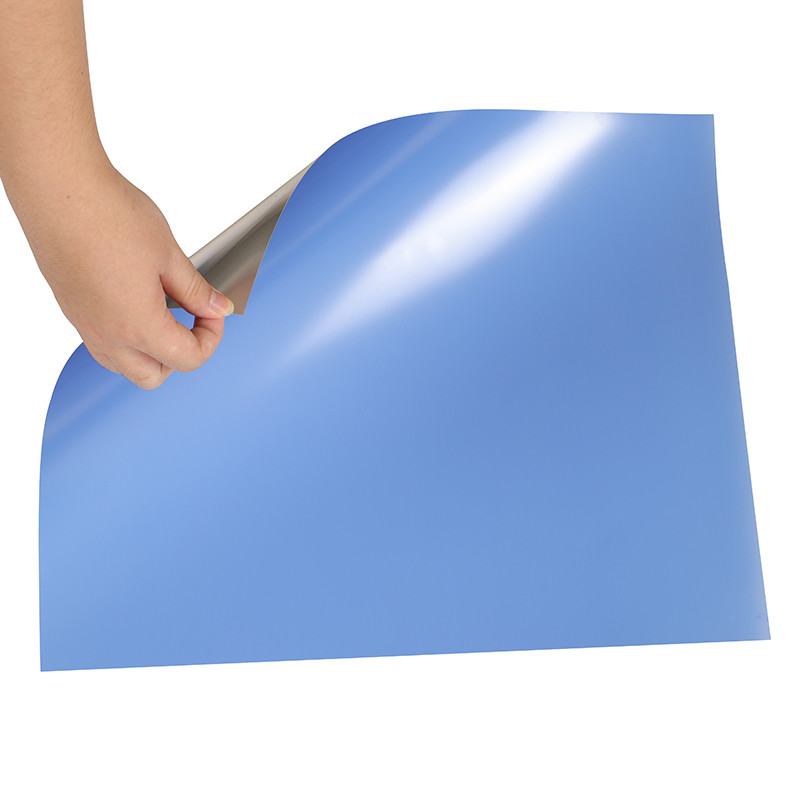

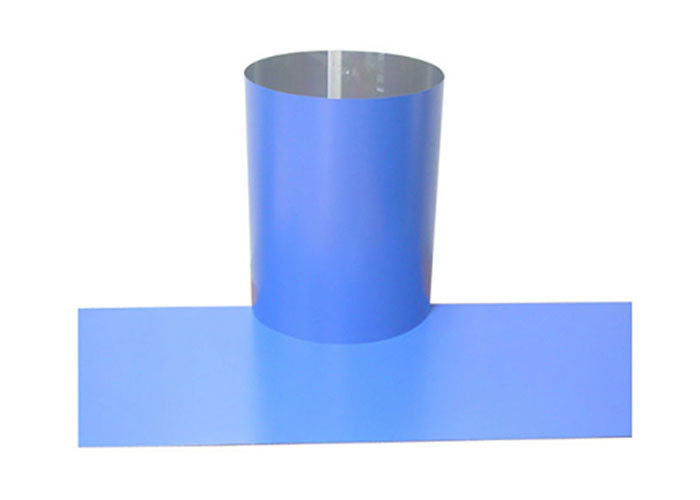

Super Long Run Length Positive Thermal CTP Plate
Application
EcooGraphix Thermal Solvent Resistance CTP plate can be used for long-run high-grade commercial and newspaper printing. It can also be used for UV ink printing with perfect performance.
Specification
| Model | ECOO-TSR |
| Plate Type | Positive Thermal Digital Plate |
| Application | Commercial, newspaper, and package printing |
| Substrate | Electrochemically grained and Anodized lithographic aluminum |
| Gauge | 0.15, 0.20, 0.24, 0.30, 0.40(mm) |
| Maximum short grain width | Maximum width 1280 mm |
| Coating | Blue |
| Length of Run | Unbaked: 400,000 impressions UV Ink: 100,000 impressions |

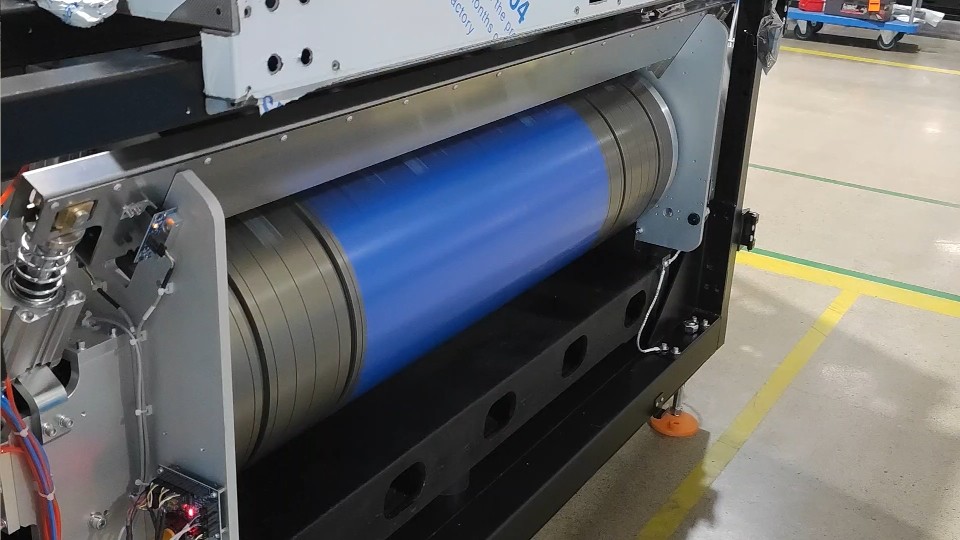

| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1050 Alloy |
| Exposure energy | 120 - 150 mj/cm² |
| Developing time | 25 - 30 sec |
| Spectral Sensitivity | 780 - 850 nm |
| Resolution | 1-99% @ 400LPI |
| Developer | ECOO DV-T Series Developer |
| Processing temperature | 23ºC +/-2ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| Safelight | Daylight handling |
| Shelf life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
Characteristic
Features
- Positive writing thermal plate
- Double layers system
- Made with a high-grade aluminum base
- Wide adaptability for different plate setter brands
- Non-ablative coating
- Run lengths up to 150,000 impressions
- UV Ink up to 80,000 impressions
- Ability to print both AM and FM screening
Benefits
- Extensive adaptability, saving from waste during possible swift of consumables' supplying
- Quick turnaround time on press
- Compatible with common developers
- Premium quality of dot reproduction and super long run length

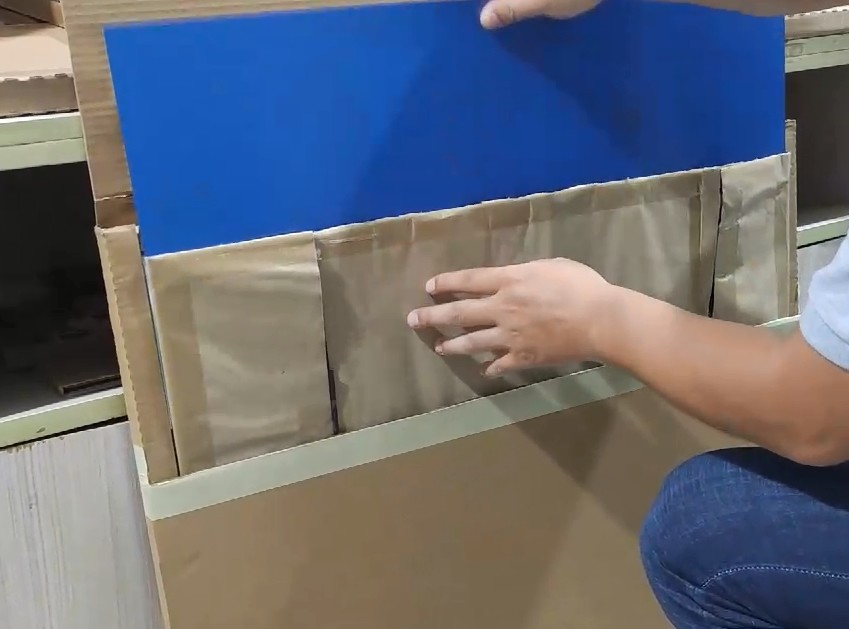

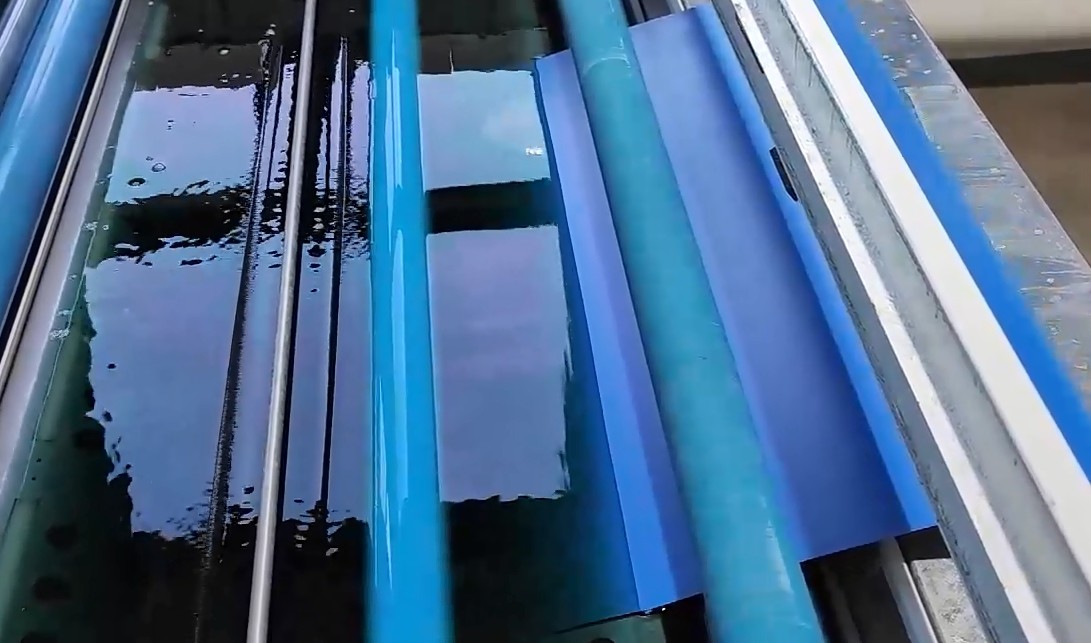

Producing And Packaging
From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.
Certificates
FAQ
Q1: Can I get the sample?
A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The air freight depends on the packing size and
Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters of CTP plates can feed one 20' container?
A: About 20000-25000sqm.
Q6: Can I take my brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
