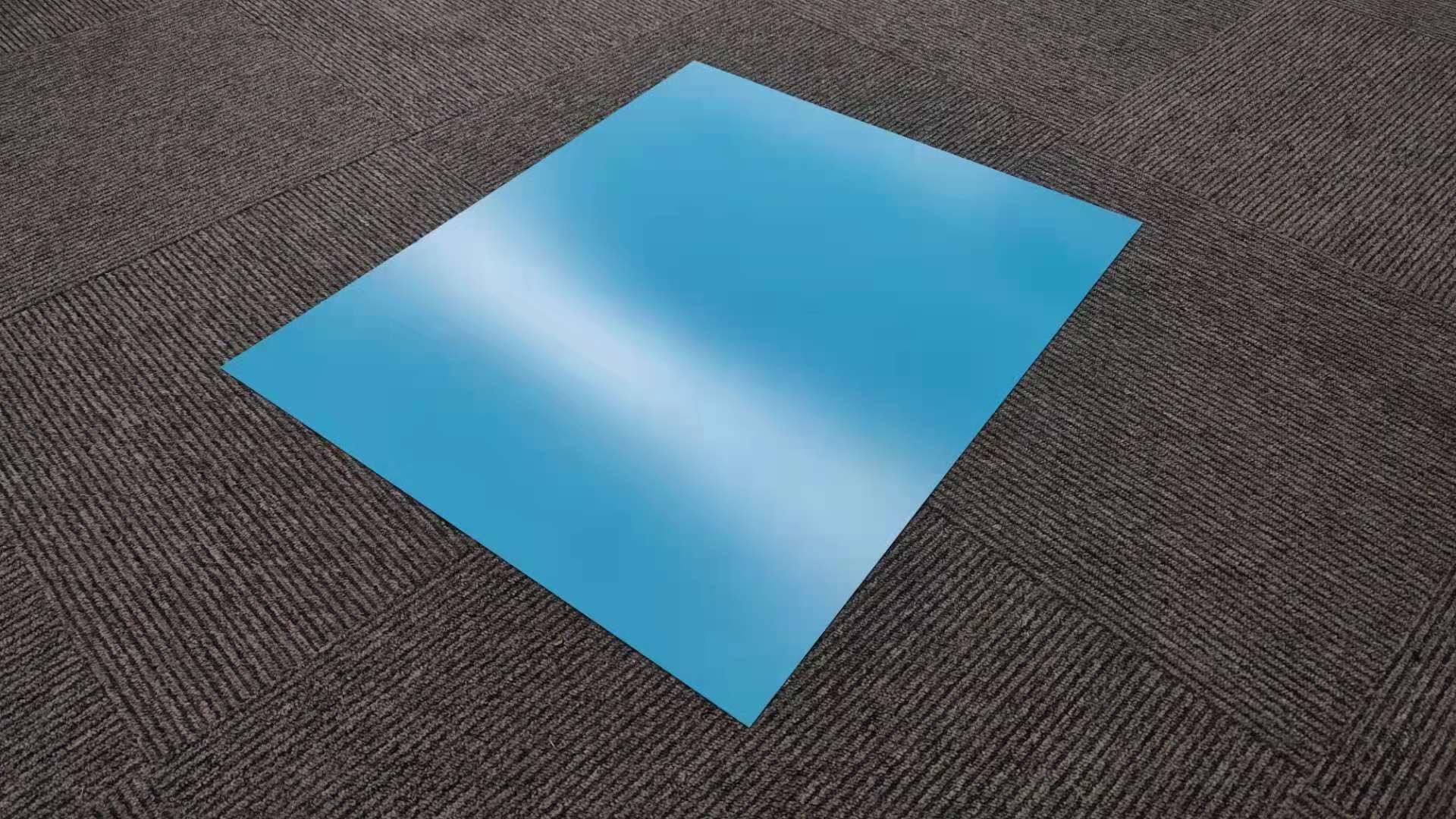

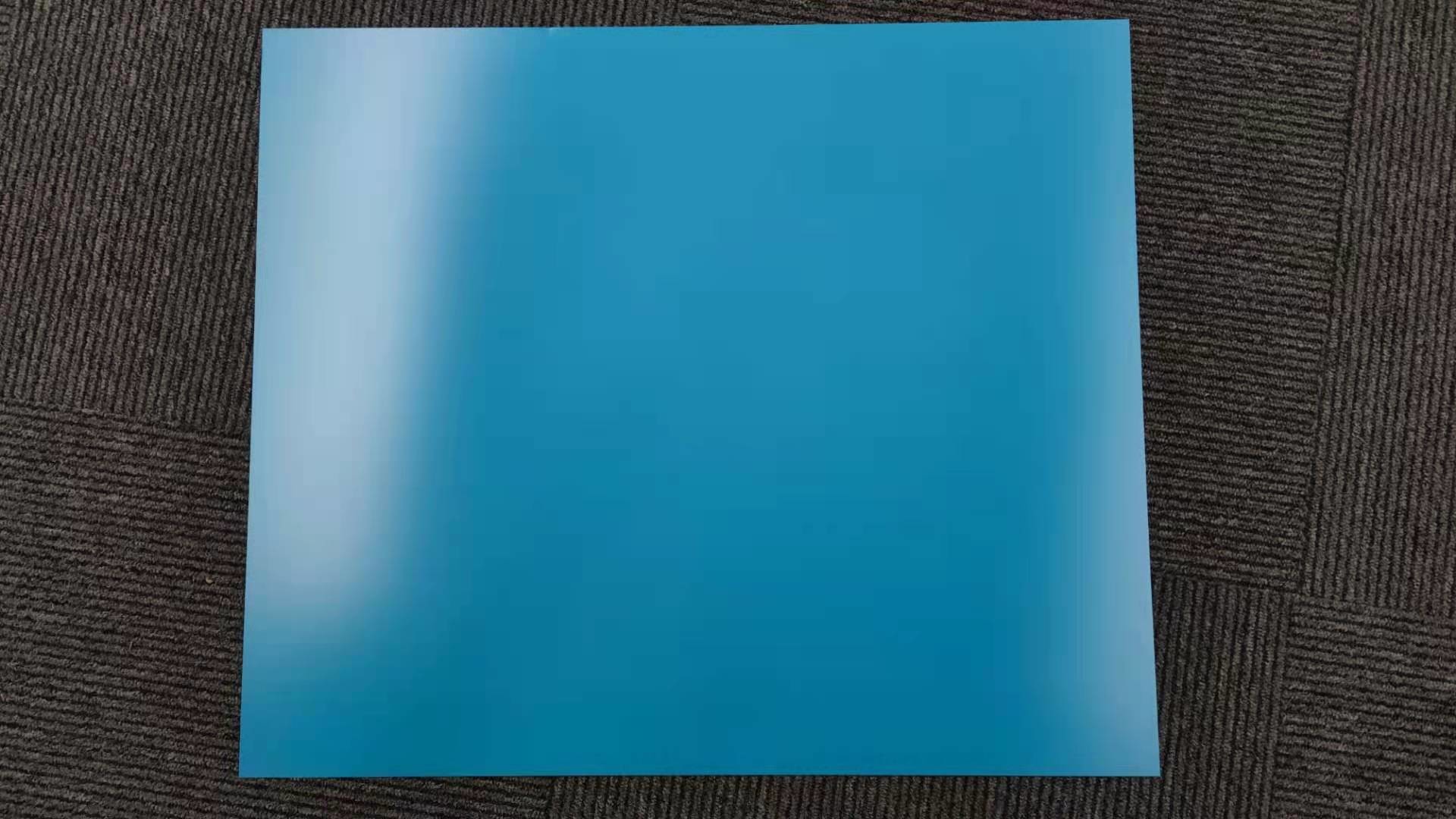

Low Chemical Violet Plate CTP Printing Plate

1000 Square Meters
MOQ
Negotiable
Price
Low Chemical Violet Plate CTP Printing Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: Low Chemistry Violet Plate, Negative Printing
Length Of Run (Impressions): Unbaked: 200,000 Impressions; Baked: 500,000 Impressions(dependent Upon Image Resolution, Press, Press Chemical, Ink And Paper Conditions)
Resolution: 150lpi (2-98%), Under1800dpi, 25um Line Can Be Produced.
Substrate: Electro Chemically Grained And Anodized Aluminum
Maximum Short Grain Width: Maximum Width 1320 Mm
Exposure Energy: 50-60uj/squre Centimeters
Spectral Sensitivity: 405 Nm
Brush Speed: 100 Rpm
High Light:

Violet Ctcp Printing Plates

,

Eco Friendly Ctcp Printing Plates

,

1320mm Width Ctcp Printing Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-V
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description

Eco-Friendly Long-Run Violet Offset Printing Plate









Introduction:




EcooGraphix Low-chemical Violet CTP Plate ECOO-V can be used for newspaper printing. It is an environmentally friendly product. Compared with a normal Violet CTP plate, ECOO-V keeps original photosensitive features and printing compatibility.








Specification:





Model
ECOO-V

Plate Type
Low Chemistry violet plate, negative printing

Application
Newspaper Printing

Substrate
Electro chemically Grained and Anodized Aluminum

Gauge
0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1320 mm

Developer
Developing gum

Length of Run
Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press, press chemical, ink and paper conditions)

Plate setters Capability
All the main brands of violet CTP in the market, have laser power of no less than 30 MW

Aluminum
Standard 1050 Alloy

Exposure Energy
50-60 μj/cm² (based on plate setter and developing condition)

Developing Time
20 ±3 sec

Developing Temperature
28 ±2 ºC

Spectral Sensitivity
405 nm

Resolution
150lpi(2-98%), under 1800dpi, 25μm line can be produced.

Preheat
95-121 ºC

Brush Speed
100 rpm

Shelf Life
12 months under recommended storage conditions

Storage and Handling
Store plates flat in their packaging, away from excessive cold, heat, or high humidity.
Recommended condition is: temperature 15-28ºC and RH between 30-70%;
Handle with care, the maximum height is 1.2m'
Open the box under the yellow light. Sealed the box with remained plate to avoid moisture.
Model ECOO-V
Plate Type Low chemistry violet plate, negative printing
Application Newspaper printing
Substrate Electrochemically-grained and Anodized aluminum
Gauge 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1320 mm
Developer Developing gum
Length of Run Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink, and paper conditions)
Plate setters Capability All the main brands of violet CTP in the market, have laser power of no less than 30 MW
Aluminum Standard 1050 Alloy
Exposure energy 50-60 μj/cm²(based on plate setter and developing condition)
Developing time 20 ±3 sec
Developing Temperature 28 ±2 ºC
Spectral Sensitivity 405 nm
Resolution 150lpi(2-98%), under 1800dpi, 25μm line can be produced.
Preheat 95-121 ºC
Brush Speed 100 rpm
Shelf life 12 months under recommended storage conditions
Storage and handling Store plates flat in their packaging, away from excessive cold, heat, or high humidity. The recommended condition is a temperature of 15-28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m'. Open the box under the yellow light. Sealed the box with remained plate to avoid moisture.





Features:




1. Eco-Friendly: applied with low PH finisher during washout treatment, reducing chemical consumption and liquid waste

2. Stable Developing Performance: compatible with most brands of violet plate developers and less sensitive to the PH value of finisher

3. Lower Investment and Maintenance Cost: can work with the simplified processor, which removes prewash, post-rinse, and gumming steps from conventional processor

4. Higher Run Length: The outside protective layer protects the sensitive layer from damage, making more impressions per plate.



Low Chemical Violet Plate CTP Printing Plate 0







☆ Plate Making:


Low Chemical Violet Plate CTP Printing Plate 1

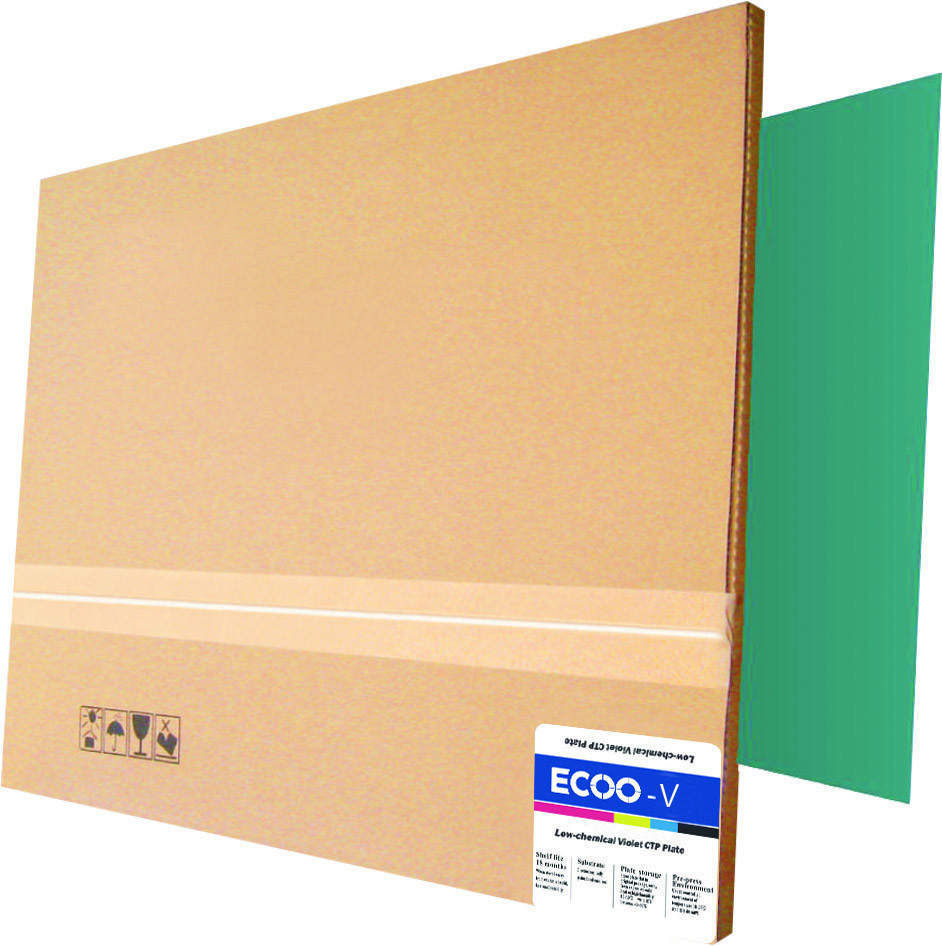

Producing And Packaging:




From production to delivery, we make every detail very carefully to guarantee good product quality and service to customers.


Low Chemical Violet Plate CTP Printing Plate 2



Low Chemical Violet Plate CTP Printing Plate 3



Low Chemical Violet Plate CTP Printing Plate 4



Low Chemical Violet Plate CTP Printing Plate 5



Low Chemical Violet Plate CTP Printing Plate 6



Low Chemical Violet Plate CTP Printing Plate 7



Low Chemical Violet Plate CTP Printing Plate 8

Low Chemical Violet Plate CTP Printing Plate 9










Certificates:





Low Chemical Violet Plate CTP Printing Plate 10



Low Chemical Violet Plate CTP Printing Plate 11








FAQ:


 Q1: Can I get the sample?

A: We are very glad to provide some samples for you to test. We usually provide 5-15 pieces of plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.



 Q2: What is the cost for the CTP plate sample freight?

A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.



 Q3: How long can the sample be ready?

A: It usually takes about 3 days to prepare the sample.



 Q4: Can I visit your factory?

A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.



 Q5: How many square meters of CTP plates can feed one 20' container?

A: About 20000-25000sqm.



 Q6: Can I take my brand and label on the packing?

A: Yes, we can provide the OEM with the customer's brand and label.
