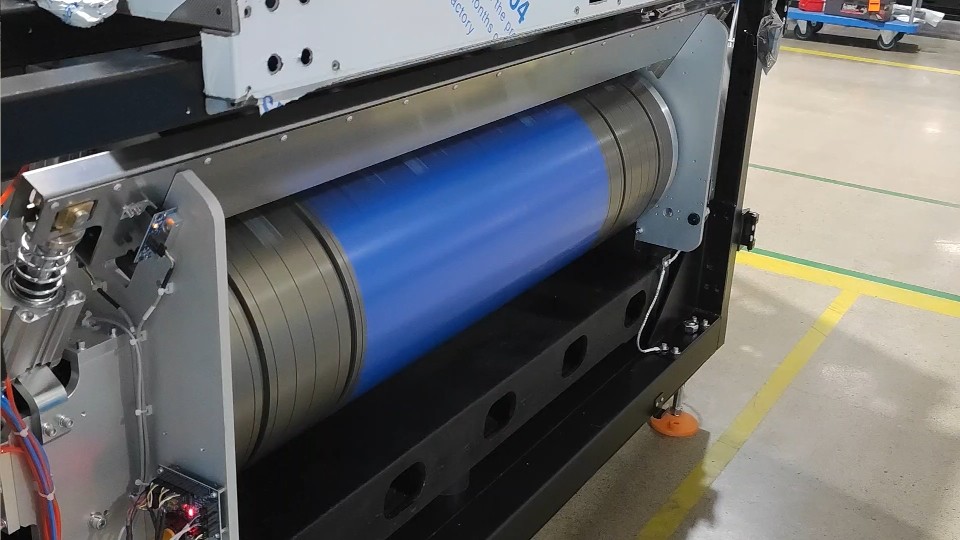

Positive Writing Thermal CTP Printing Plates Double Layers

1000 Square Meters
MOQ
Negotiable
Price
Positive Writing Thermal CTP Printing Plates Double Layers
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: CTP Printing Plate
Application: Commercial, Newspaper And Packaging Print
Exposure Energy: 120 - 150 Mj/ Square Centimeter
Length Of Run (Unbaked): 400, 000 Impressions
Length Of Run (UV Ink): 100, 000 Impressions
Processing Speed: 0.80 - 1.20 M/Min
Coating Color: Blue
Developer: Ecoo DV-T Series Developer
High Light:

Writing Thermal CTP Printing Plates

,

Double Layers CTP Printing Plates

,

Positive Writing CTP Printing Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TSR
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 2,000,000 Sqm Per Year
Product Description



 Double Layers Positive Writing Thermal CTP Aluminum Plate











▽ -------- ▽ -------- ▽ --------- Application --------- ▽ -------- ▽ -------- ▽


EcooGraphix Thermal Solvent Resistance CTP plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with perfect performance.





▽ -------- ▽ -------- ▽ --------- Specification --------- ▽ -------- ▽ -------- ▽


Model
ECOO-TSR

Plate Type
Positive Thermal Digital Plate


Application
Commercial, newspaper and packaging print

Substrate
Electro chemically grained and Anodized lithographic aluminum


Gauge
0.15, 0.20, 0.24, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1280 mm


Coating
Blue

Length of Run
Unbaked: 400,000 impressions
UV Ink: 100,000 impressions


Plate setters
All thermal CTP machine

Aluminum
Standard 1050 Alloy


Exposure energy
120 - 150 mj/ cm²

Developing time
25-30 sec


Spectral Sensitivity
780 - 850 nm

Resolution
1-99% @ 400LPI


Developer
Ecoo DV-T Series Developer

Processing temperature
23ºC+/-2ºC


Processing Speed
0.80 - 1.20 m/min

Safelight
Daylight handling


Shelf life
12 months under recommended storage conditions

Packaging
Available in all standard formats, including bulk packaging options such as APL packaging


Storage and handing
Stored in a cool and dry environment, away from excessive cold, heat and humidity

Model ECOO-TSR
Plate Type Positive Thermal Digital Plate
Application Commercial, newspaper and packaging print
Substrate Electro chemically grained and Anodized lithographic aluminum
Gauge 0.15, 0.20, 0.24, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1280 mm
Coating Blue
Length of Run Unbaked: 400,000 impressions
UV Ink: 100,000 impressions
Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 120 - 150 mj/ cm²
Developing time 25-30 sec
Spectral Sensitivity 780 - 850 nm
Resolution 1-99% @ 400LPI
Developer Ecoo DV-T Series Developer
Processing temperature 23ºC+/-2ºC
Processing Speed 0.80 - 1.20 m/min
Safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity







▽ -------- ▽ -------- ▽ -------- Characteristic -------- ▽ -------- ▽ -------- ▽


Features

- Positive writing thermal plate

- Double layers system

- Made with high grade aluminum base

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 150,000 impressions

- UV Ink up to 80,000 impressions

- Ability to print both AM and FM screening


Benefits

- Extensive adaptability, saving from waste during possible swift of consumables' supplying

- Quick turn around time on press

- Compatible with common developers

- Premium quality of dot reproduction and super long run length






▽ ------ ▽ ------ ▽ ------ Producing And Packaging ------ ▽ ------ ▽ ------ ▽



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.





Positive Writing Thermal CTP Printing Plates Double Layers 0



Positive Writing Thermal CTP Printing Plates Double Layers 1



Positive Writing Thermal CTP Printing Plates Double Layers 2



Positive Writing Thermal CTP Printing Plates Double Layers 3



Positive Writing Thermal CTP Printing Plates Double Layers 4



Positive Writing Thermal CTP Printing Plates Double Layers 5










▽ -------- ▽ --------- ▽ --------- Certificates --------- ▽ --------- ▽ -------- ▽




Positive Writing Thermal CTP Printing Plates Double Layers 6



Positive Writing Thermal CTP Printing Plates Double Layers 7










▽ --------- ▽ --------- ▽ --------- FAQ --------- ▽ --------- ▽ --------- ▽




Q1: Can I get the sample ?


A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





Q2: What is the cost for the CTP plate sample freight ?


A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.





Q3: How long can the sample be ready ?


A: It usually takes about 3 days to prepare the sample.





Q4: Can I visit your factory ?


A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.





Q5: How many Square Meters CTP plates can feed one 20' container ?


A: About 20000-25000SQM.





Q6: Can I take my own brand and label on the packing ?


A: Yes, we can provide the OEM with the customer's brand and label.
