Application

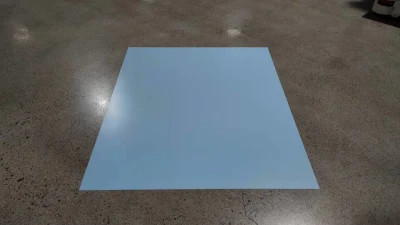

The EcooGraphix ECOO-G is an innovative, eco-friendly Development On Press (DOP) CTP plate. After imaging, it can be placed directly on the printing press, eliminating the need for chemical processing.
Recommended press procedure for ECOO-G:
Thoroughly clean ink residues from the blanket.
Start the press and engage the water roller for 30–40 seconds.
Activate the ink rollers for 20–30 seconds.
Feed paper and begin printing.
Note: Extending steps 2 and 3 helps reduce paper waste.
Specification
Model | ECOO-G |
Plate Type | Thermal-negative type |
Application | High-grade commercial and newspaper printing |
Substrate | Electrolyte graining and Anodized AL substrate |
Thickness | 0.15mm/ 0.30mm |
Maximum short grain width | Maximum width 1280 mm |
Spectrum scope | 800-850 nm |
Photosensitive wavelength | 830 nm |
Platesetter | Various dominant thermal platesetters in the market |
Coating color | Grey |
Low-energy imaging | 130-150 MJ/cm² |
The period of latent image stabilization | ≤ 7 days |
Recommended screen method | 1-99% @200 LPI AM or 20μm FM or mixture |
The paper number of start-up | < 50 sheets |
Safety light | 4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended. |
Processing | Without processing, directly on the press |
Run Length | 100,000 impressions; Actual run length depends on printing conditions |
Shelf life | 12 months under recommended condition |
Transportation | Packed in seal and stored using prevention from light, moisture, overheating, and high humidity |
Storage | Recommended condition: 18ºC-24ºC, 40%-50% RH. |
Applied parameters in the Imaging device
CTP model Data |
Kodak trendsetters |
LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
Laser power | 15-17W | 300-320mw | 19.5-21.5W | 80-90 % |
Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
Resolution | Customized | Customized | Customized | Customized |
Parameter that needs set up | Focus/ Zoom | Focus/ Zoom | Focus/ Zoom | Focus/ Zoom |
*Note: Higher exposure energy will make the image contrast clear and benefit the plate run length.
while over-high/low exposure energy will affect the image quality negatively.
ECOO-G Processless CTP plate Video: https://youtu.be/LLqNaY1ivcI
Characteristics
The ECOO-G plate features a double-layer structure:
The emulsion layer is non-water-soluble, ensuring it does not mix with the fountain solution.
The protective layer is water-soluble and dissolves quickly into the fountain solution, enabling smooth press performance.
