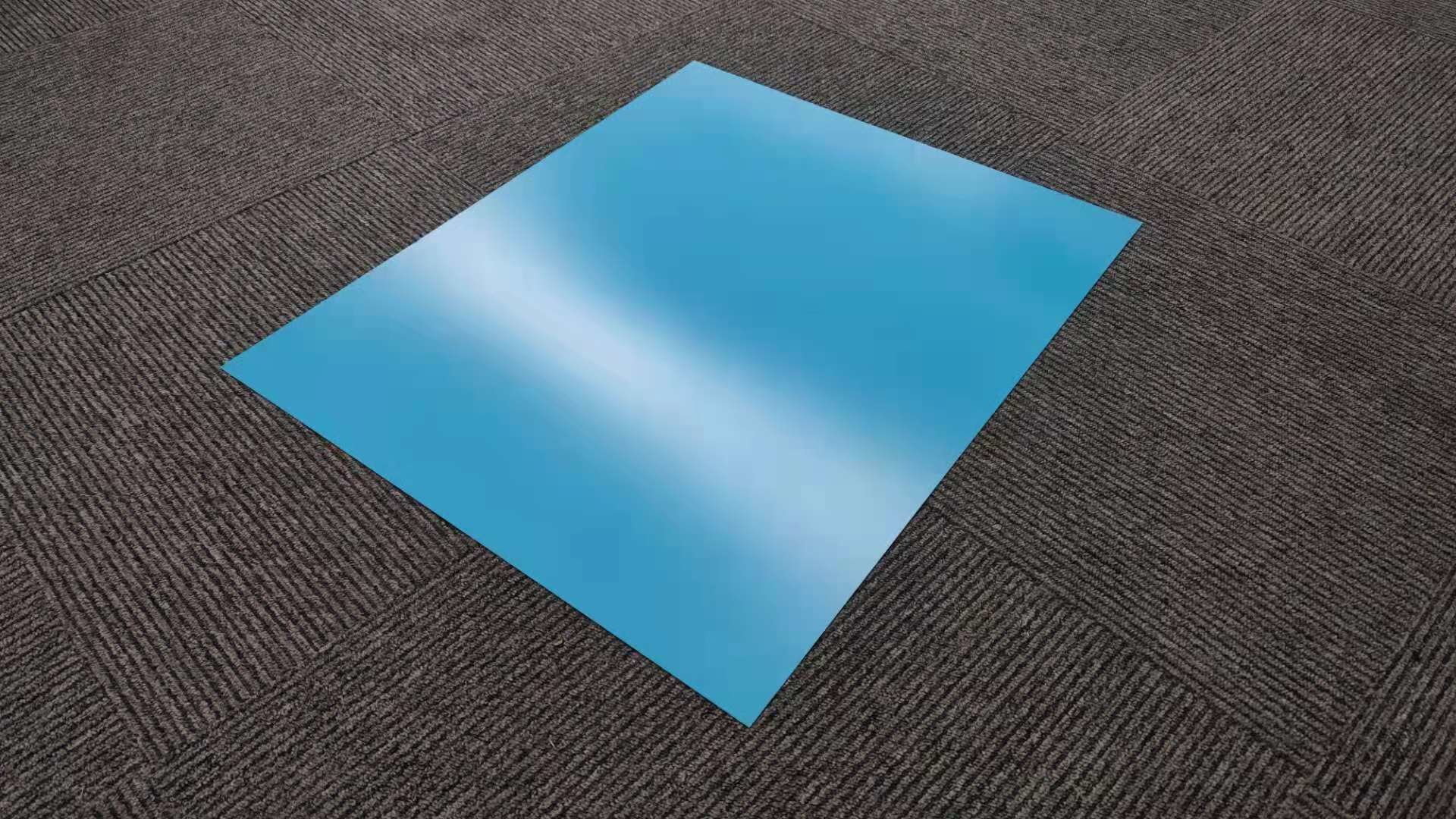

Offset Aluminum Violet Plate For Newspaper Printing

1000 Square Meters
MOQ
Negotiable
Price
Offset Aluminum Violet Plate For Newspaper Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Type: Low Chemistry Violet Plate, Negative Printing
Length Of Run (Unbaked): 200,000 Impressions
Length Of Run (Baked): 500,000 Impressions
Exposure Energy: 50-60 μj/sqm
Resolution: 150lpi(2-98%), Under1800dpi, 25μm Line Can Be Produced.
Application: Newspaper Printing
Developer: Developing Gum
Developing Time: 20 +/-3 Sec
High Light:

Aluminum Violet Ctp Plate

,

Offset Violet Ctp Plate

,

Newspaper Printing Violet Ctp Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-V
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 1,500,000 Sqm Per Year
Product Description



 EcooGraphix Low-Chemistry Violet Offset CTP Plate Aluminum Plate












 1. Application





EcooGraphix Low-chemical Violet CTP Plate ECOO-V can be used for newspaper printing. It is an environmental friendly product. Compared with normal Violet CTP plate, ECOO-V keeps original photosensitive features and printing compatibility.










 2. Specification





Model
ECOO-V

Plate Type
Low chemistry violet plate, negative printing

Application
Newspaper Printing

Substrate
Electro chemically grained and Anodized aluminum

Gauge
0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1320 mm

Developer
Developing gum

Length of Run
Unbaked: 200,000 impressions;
Baked: 500,000 impressions
(dependent upon image resolution, press, press chemical, ink and paper conditions)

Plate setters Capability
All the main brands violet CTP in market, laser power no less than 30 mw

Aluminum
Standard 1050 alloy

Exposure energy
50-60 μj/cm² (based on plate setter and developing condition)

Developing time
20 ±3 sec

Developing Temperature
28 ±2 ºC

Spectral Sensitivity
405 nm

Resolution
150lpi(2-98%), under 1800dpi, 25μm line can be produced.

Preheat
95-121 ºC

Brush Speed
100 rpm

Shelf life
12 months under recommended storage conditions

Storage and handing
Store plates flat in their packaging, away from excessive cold, heat or high humidity.
Recommended condition is: temperature 15-28ºC and RH between 30-70%;
Handle with care, the maximum height is 1.2m'
Open the box under yellow light. Sealed the box with remained plate to avoid moisture.



Model ECOO-V
Plate Type Low chemistry violet plate, negative printing
Application Newspaper Printing
Substrate Electro chemically grained and Anodized aluminum
Gauge 0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width Maximum width 1320 mm
Developer Developing gum
Length of Run Unbaked: 200,000 impressions;
Baked: 500,000 impressions(dependent upon image resolution, press,
press chemical, ink and paper conditions)
Plate setters Capability

All the main brands violet CTP in market,

laser power no less than 30 mw

Aluminum Standard 1050 alloy
Exposure energy 50-60 μj/cm²(based on plate setter and developing condition)
Developing time 20 ±3 sec
Developing Temperature 28 ±2 ºC
Spectral Sensitivity 405 nm
Resolution 150lpi(2-98%), under 1800dpi, 25μm line can be produced.
Preheat 95-121 ºC
Brush Speed 100 rpm
Shelf life 12 months under recommended storage conditions
Storage and handing Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 15-28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m'
Open the box under yellow light. Sealed the box with remained plate to avoid moisture.










 3. Features





♥  Simplifying the processing, only 3 steps including preheating, developing and drying.

♣  Redusing chemical consuption, saving water.

  Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer.

    It makes print wuality more stable.












 4. Plate Structure And Making



Offset Aluminum Violet Plate For Newspaper Printing 0

                                           Plate Structure







Offset Aluminum Violet Plate For Newspaper Printing 1

                                           Plate Making












 5. Customer's Feedback





Offset Aluminum Violet Plate For Newspaper Printing 2












 6. Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Offset Aluminum Violet Plate For Newspaper Printing 3



Offset Aluminum Violet Plate For Newspaper Printing 4



Offset Aluminum Violet Plate For Newspaper Printing 5



Offset Aluminum Violet Plate For Newspaper Printing 6



Offset Aluminum Violet Plate For Newspaper Printing 7



Offset Aluminum Violet Plate For Newspaper Printing 8

Offset Aluminum Violet Plate For Newspaper Printing 9












 7. Certificates





Offset Aluminum Violet Plate For Newspaper Printing 10



Offset Aluminum Violet Plate For Newspaper Printing 11












 8. FAQ







Q1: Can I get the sample ?


A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.





Q2: What is the cost for the CTP plate sample freight ?


A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.





Q3: How long can the sample be ready ?


A: It usually takes about 3 days to prepare the sample.





Q4: Can I visit your factory ?


A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.





Q5: How many square meters CTP plates can feed one 20' container ?


A: About 20000-25000sqm.





Q6: Can I take my own brand and label on the packing ?


A: Yes, we can provide the OEM with the customer's brand and label.
