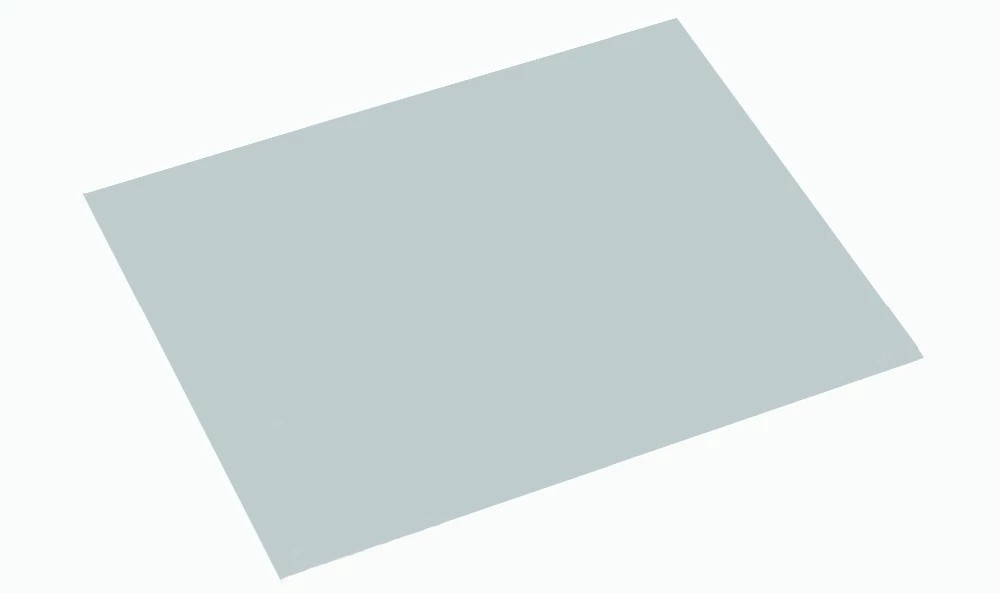

410nm Chemistry Free DOP CTP Offset Printing Plates

410nm Chemistry Free DOP CTP Offset Printing Plates
Features Gallery Product Description Request A Quote
Type: CTCP Plate
Applicable Laser: 410 Nm
Running Length: 100,000 Impressions
Sensitivity: 20 Mj/ Cm²
Shelf Life: 12 Months
Package: 100 Pcs Per Ctn For 0.15 Mm Gauge, 50 Pcs For 0.3mm
High Light:

DOP CTP Offset Printing Plates


Chemistry Free CTP Offset Printing Plates


410nm CTP Offset Printing Plates

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: ECOO-H
Payment & Shipping Terms
Product Description

High Sensitive Negative Processless CTCP UV Plate


DOP plate
environment friendly.
chemistry free

Brief introduction


ECOO-H Processless negative CTCP Plate is the latest product. The plate can be exposed on UV image-setter and applied on printing machine directly without processing or developing. With ECOO-H, you can be more competitive in reducing cost, and achieve higher gain efficiency and green printing. It is very unique. So far most orders comes from USA and Canada. Wish more printing houses like this plate and try our free sample.


Technical data


Model ECOO-H
Plate Type
Application High grade commercial and newspaper printing
Substrate Electrolyte graining and Anodized AL substrate
Thickness 0.15mm / 0.30mm
Maximum short grain width Maximum width 1280 mm
Photosensitive wave length 405 nm
Platesetter Various dominant UV platesetters in the market
Image color Gray
Low-energy imaging 20 mj/ cm²
The period of latent image stabilization 7 days
Recommended screen method 1-99 @200 Lpi AM / 20u FM and mixture
The paper number of start-up <50 sheets
Safety light 1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
Processing Without processing, directly on press
Run Length 100,000 impressions
Actual run length depends on printing conditions
Shelf life 12 months under recommended
Transportation Packed in seal and stored by means of preventing from light / moisture, over heat and high humidity
Storage Recommended condition: 18ºC~24ºC, 40%-50% RH.


Negative non-ablation photosensitive system
Compatible with the dominant devices in the market
Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter
Good dot reproduction, stable performance, wide processing latitude
Long stability of latent image, can be stored at least a week after plate-making
High quality aluminum substrate, professional coating formulation


410nm Chemistry Free DOP CTP Offset Printing Plates 0



410nm Chemistry Free DOP CTP Offset Printing Plates 1

410nm Chemistry Free DOP CTP Offset Printing Plates 2




1. How long is the lead time?
The lead time is normally 30-45 days. We can accelerate for emergency cases.

2. How long is shelf life?
Normally 12 months. We do not recommend over storage for this plate.

3. What is your moq for this plate? how to achieve your sample?
Our MOQ for end user is 1000 sqm and for dealer is 3000 sqm. Let us know your prefered sample size and quantity. then we will prepare free sample for you. The sample is free of charge. But the buyer has to arrange courier shipment on their own.

4. Do you have accompanying plate products to make an easy and overall purchase for some end users?
Yes, we have both single layer/double layer CTP/CTCP plate, PS plate, violet plate and processless CTP plate, developer, gum, plate cleaner, roll washer, fountian solution and premier quality of printing blanket.

5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.
