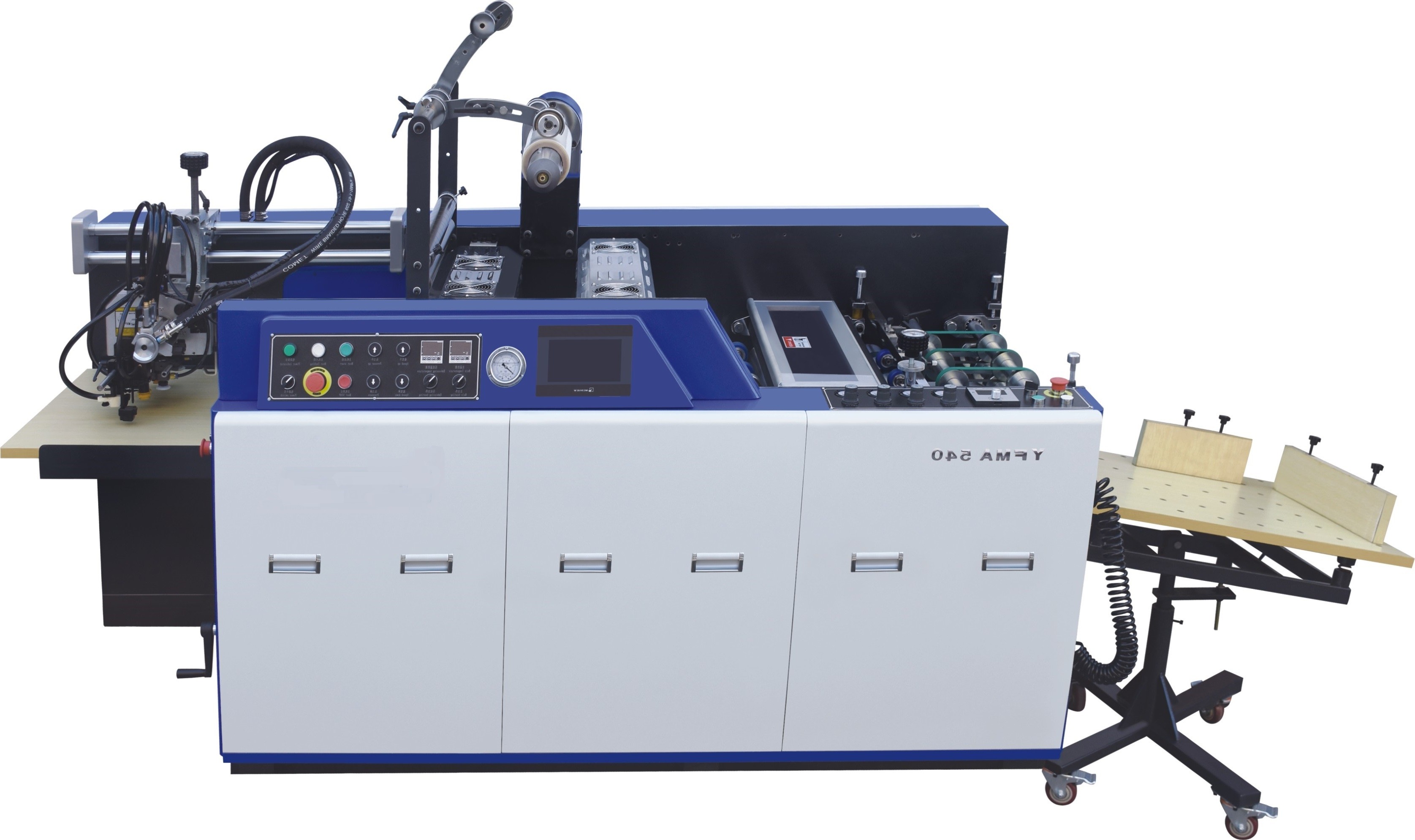

High Speed Fully Automatic Thermal Film Laminator
*1 Main Components
Series | Accessory Name | Brand | Note | |
1 | Pressure rubber roller | Jingyang | JingYang | Taiwan |
2 | feeder | RUN | Offset feeder | |
3 | Bearing | Harbin | ||
4 | Vacuum pump | Shanghai Mengxu | ||
5 | chain | Hangzhou | ||
6 | Pneumatic clutch | Taiwan | Taiwan | |
7 | Servo motor | Inovance | Shenzhen | |
8 | Server driver | Inovance | Shenzhen | |
9 | Oil hydraulic pump | Zhejiang | ||
10 | electromagnetic heating | Shenzhen | ||
11 | Touch screen | Weiluntong | ||
12 | Pneumatic parts | Airtac | Taiwan | |
13 | Button | OMRON | OMRON | Japan |
14 | Contactor.relay | Schneider | France | |
15 | Sensor | Panasonic | Japan | |
16 | Proximity switch | Panasonic | Japan | |
17 | Temperature controller | OMRON | OMRON | Japan |
18 | Photoelectric switch | Panasonic | Japan | |
19 | PLC | Delta | Taiwan | |
20 | Frequency converter | Delta | Taiwan |
*2 Specifictions
Film Laminating Machine
Model
ECOO YFMA-540
Max. Sheet(WxL)
540*760mm
Min. Sheet(WxL)
210*270mm
Machine Speed
Max. 30m/min
Paper Thickness
157~400g/m2
Voltage
380V
Laminating Temperature
80-110ºC
Power Required
17kw
Dimension(LxWxH)
3000*1450*1650mm
N.W.
2000kg
Film Laminating Machine | |
Model | ECOO YFMA-540 |
Max. Sheet(WxL) | 540*760mm |
Min. Sheet(WxL) | 210*270mm |
Machine Speed | Max. 30m/min |
Paper Thickness | 157~400g/m2 |
Voltage | 380V |
Laminating Temperature | 80-110ºC |
Power Required | 17kw |
Dimension(LxWxH) | 3000*1450*1650mm |
N.W. | 2000kg |
*3 Introductions
*4 Functions
YFMA-540 fully automatic laminating machine as a professional equipment used for plastic film laminating on the surface of paper printer matter.
1] Thermal laminating (pre-coated /thermal film)
2] Film: OPP, PET, PVC, METALIC, etc.
*5 Application
Widely applicable for laminating in packaging, paper box, books, magazines, calendars, carton, handbags, Gift box, Wine packaging paper improving the printing matter grades, and achieve the purpose of dust-proof, water-proof, oil proof. It's the best choice for printing and laminating enterprises of all scales.
*6 Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
*7 Certificates
*8 FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
Q7: What about the training content ?
A: All machines have been finished all adjustment and test in NEW STAR workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment later.
