830nm Positive Thermal CTP Printing Plate Single Layer

1000 sqm
830nm Positive Thermal CTP Printing Plate Single Layer
Features Gallery Product Description Request A Quote
Thickness: 0.15 Mm, 0.30 Mm, 0.40 Mm
Plate Processing Energy: 110-130 Mj/m²
Screem: 1-98@ 200 Lpi AM/FM And Mixture
Image Setter: Mainstream CTP Brands
Developer: Workable With Most Mainstream Developer
Running Length: 80000 Impresssion
Laser Wavelength: 830 Nm
Shelflife: 12 Months
Color: Blue
High Light:

Positive Thermal CTP Printing Plate


830nm Thermal CTP Printing Plate


Single Layer CTP Printing Plate

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: iso9001
Model Number: ECOO-ES
Payment & Shipping Terms
Packaging Details: 50 pcs in a carton, 50 carton on a pallet, standard exporting package
Delivery Time: 20-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000000 sqm per year
Product Description

Economic 80000 running length Positive Thermal CTP Printing plate


This thermal CTP Plate(Single Layer) is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length, and good price. But if you use UV ink and vanish, and fluently make long printing jobs, this plate is not suitable. It is better to try our ECOO-ED and ECOO-TSR.



Plate Type Positive Thermal CTP Plate
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Single-layer coating, IR sensitive
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix

Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword

Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.

Length of Run Unbaked: 80000 to 100,000 impressions
  Baked: Over 100000 impressions



Plate setters Kodak Trendsetter/Lotem/Magnus; Fuji Javelin T9000HS; Heidelberg Topsetter/Suprasetter; Screen PT-R; Creo Scitex , or EcooGraphix thermal CTP T series
Exposure energy 90 - 120 mj /cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm

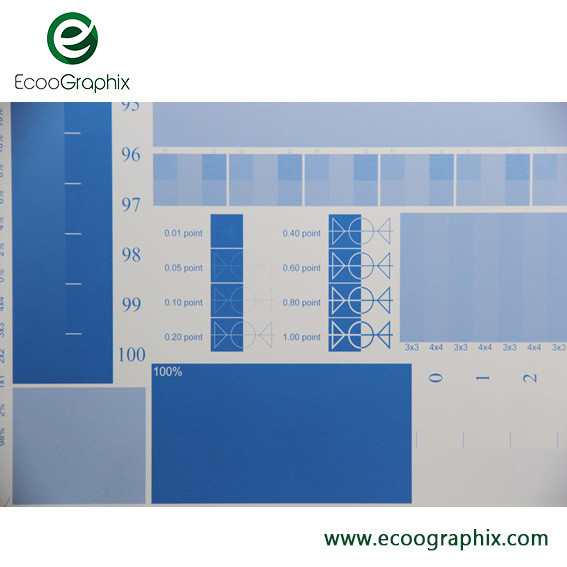

Resolution 1-99% at 300 LPI
FM capability 20 micron stochastic
Image color Blue

 830nm Positive Thermal CTP Printing Plate Single Layer 0
Develop and processing

Processor All Brands.
Developer Kodak Gold Star or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec

Recommended Image Data setting on different CTP

CTP model



LOTTEM 400(TH1.7) MAGNUS 400 Screen 8600S
Laser power 13-15W 270-280mw 17-19W 70-80 %
Drum speed 250-300rpm 850-900rpm 400-450rpm 800-900rpm
Resolution Customized Customized Customized Customized
Parameter that need set up









*Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.
Suitable for sheet-fed offset press without UV ink, vanish.
Run length: 60000-100000 impressions
Suitable for different types of traditional inks and fountain solutions, commercial printing, newspaper printing and package printing.

Transpotation and storage
Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity.
Recommended conditions: 18ºC-24ºC, 40%-50% RH
Avoid saliva, water stains, water mist and other aqueous solution contaminating the plate surface before plate-making.
If the plates can not be used up after unpacking right away, the rest should be put into the original package, then seal it to prevent from moisture.

830nm Positive Thermal CTP Printing Plate Single Layer 1
830nm Positive Thermal CTP Printing Plate Single Layer 2
Q&A for plate products
1. How long is the lead time?
The lead time is normally 30 days.
2. Do you offer free plate samples?
Yes, we offer free testing samples maximum 12 pcs for each size but with delivery fee collect.
3. How do you guarantee stable quality?
There are 3 inpecting procedures: 1, automatic on-line 24h scanning detector; 2, random sampling per 15 mins at the producing line; 3, manually full inspection before packing.
4. Do you have accompanying plate making products to enable one-stand easy purchase for some end users?
Yes. CTP machine, processors, developers, ink, blanket and some common fihishing machines are also within our category.
5. Payment term
Normally, 30% deposit, 70% before shipping.
