Machine brief introduction and features
Ecoo 900 automatic thermal paper roll production machine is used for slitting and rewinding all kinds of thermal paper roll, including fax paper roll, ATM roll, ECG roll, medical record paper roll, pos roll, etc.
PARAMETERS
| Model | ECOO- 900 |
| Web Width | 900mm |
| Web Diameter | 1000mm |
| Max. Rewinding Diameter | 160mm |
| Min. Slit Width | 25mm |
| Max. Speed | 150m/min |
| Unwinding Shaft | 3” Air Expanding Shaft |
| Rewinding Shaft | 0.5”, 1” are available (or as your request) |
| Voltage | 3 phase, 380V, 50Hz |
| Torque | 50N.M |
| Power | 20kw |
| Weight | 2100kg |
| Overall Dimensions (L*W*H) | 5212mmx2025mmx1680mm |
| SPECIFICATIONS |
| Siemens PLC and touch control screen, all the parameters are displayed on the monitor, and it will automatically work. |
| Master motor is Siemens inverter motor, Inovance AC drive control. |
| Motor-driven chain lifts jumbo roll up or down automatically. |
| Dynamic or static balancing transmission roller. |
| Redline marking system, printing red line on finished roll tail. |
| Round blades for slitting, automatic waste removal by air blower through tube. |
| Automatic tucker, quickly triggers rewinding. |
| 2 sets load cell sensor and fully automatic tension controller to keep constant tension. |
| Auto meter counter, when it reaches the preset length, the machine stops automatically. |
| The overlapping problem could be avoided with lay-on roller. |
| Emergency switch. |
| Automatic core loader, automatic cross-cutting and glue spray unit, roll spacer, hammer unit, shrink film packing machine. |
About us
We Ecoographix is a Chinese brand who has been in this industry for 7 years and offers full range of prepress and postpress machines and consumables .
Below is our category:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.
www.ecoographix.com

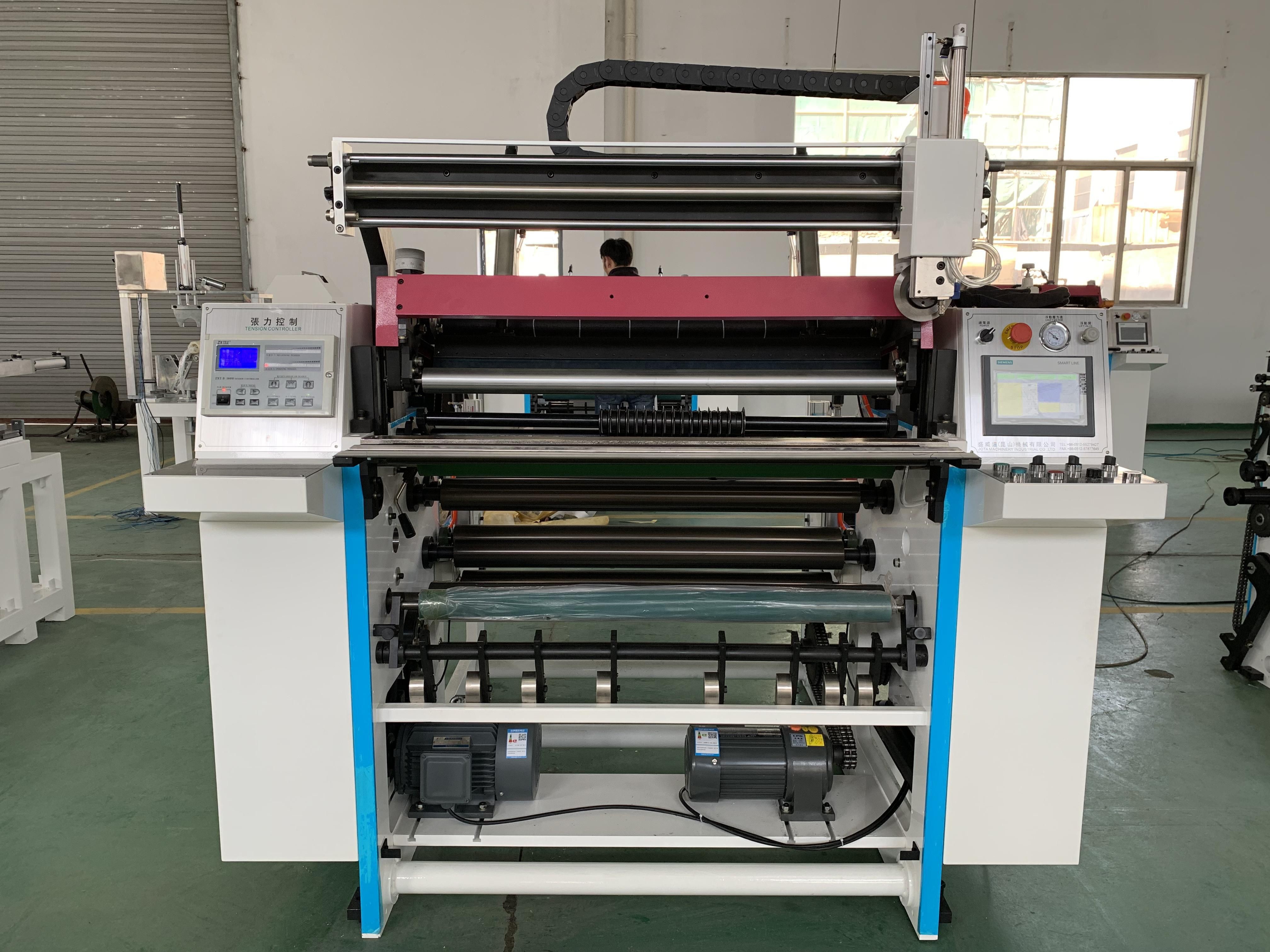

Close look of this model
Factory
