Lifetime Warranty Processless Thermal CTP Printing Plate with Double Layer Coating for Offset Printing

1SQM
MOQ
Negotiable
Price
Lifetime Warranty Processless Thermal CTP Printing Plate with Double Layer Coating for Offset Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Plate Thickness: 0.15, 0.30mm
Spectral Sensitivity: 830nm
Photosensitive Wavelength: 405nm
Low-energy Imaging: 20 Mj/cm²
Maximum Width: 1280 Mm
Run Length: 100,000 Impressions
Highlight:

Chemical Free Thermal CTP Plate

,

0.30mm Thermal CTP Plate

,

Newspaper CTP Offset Printing Plates
Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO,SGS
Model Number: Ecoo-H
Document: EcooGraphix Manual Thermal ...es.pdf
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 50,000SQM
Product Description
Lifetime Warranty Thermal CTP Printing Plate Machine
Stable Quality, Cost Effective, Environment Friendly
Application
EcooGraphix Ecoo-G is a new, environmentally friendly, Development On Press CTP plate. It can be run directly on a printing press after imaging, without a need for chemical processing.
Characteristics
ECOO-G is double layer, and the emulsion layer will not dissolve into water, so it will not integrate into fountain solution; while the protection layer is well water-soluble, and it will be easily dissolved into the fountain solution.
Specification
ModelECOO-G
Plate TypeNon-ablation UV CTP-negative type
ApplicationHigh grade commercial and newspaper printing
SubstrateElectrolyte graining and Anodized AL substrate
Thickness0.15mm / 0.30mm
Maximum short grain widthMaximum width 1280 mm
Photosensitive wave length405 nm
PlatesetterVarious dominant UV platesetters in the market
Image colorGray
Low-energy imaging20 mj/cm²
The period of latent image stabilization≤7 days
Recommended screen method1-99 @200 Lpi AM / 20u FM and mixture
The paper number of start-up<50 sheets
Safety light1 hour under fluorescent lamp, no direct irradiation with natural light, 4 hours under yellow light
ProcessingWithout processing, directly on press
Run Length100,000 impressions (Actual run length depends on printing conditions)
Shelf life12 months under recommended conditions
TransportationPacked in seal and stored by means of preventing from light/moisture, over heat and high humidity
StorageRecommended condition: 18℃~24℃, 40%-50% RH
Key Features
  • Negative non-ablation photosensitive system
  • Compatible with the dominant devices in the market
  • Can be printed directly on the machine without any processing steps after scanning by 405nm Conventional CTP/CTCP/UV-CTP platesetter
  • Good dot reproduction, stable performance, wide processing latitude
  • Long stability of latent image, can be stored at least a week after plate-making
  • High quality aluminum substrate, professional coating formulation
Application Details
  • Suitable for sheet-fed offset press or high speed rotary offset press
  • Run length: 100,000 impressions
  • Suitable for different types of traditional inks and fountain solutions, including alcohol's substitutes as fountain solutions
  • Unsuitable to improve run length by baking plates
Transportation and Storage
  • Packed in seal and stored by means of preventing from light/moisture, over heat and high humidity
  • Recommended conditions: 18℃~24℃, 40%~50% RH
Technical Features
FeaturesECOO-GKodak Sonora XP
Sensitive wavelength (nm)800-850800-850
Coating colorGreyLight green
Sensitivity (mj/cm²)150150
Exposure in safe lightWhite light 1 hour; yellow light 24 hoursWhite light 1 hour; yellow light 24 hours
After image contrastCan be spotted by eyes, but auto punching machine cannot recognize itCan be spotted by eyes, auto punching machine can recognize it
Imaging deviceNormal thermal CTP deviceNormal thermal CTP device
Resolution1-99% @ 200lpi (dependent on CTP capability)1-99% @ 200lpi (dependent on CTP capability)
Run-length100,000100,000
Storage12 month (under recommend environment)12 month (under recommend environment)
ECOO-G has a wide range of exposure energy, the range is 140-200mj/cm² (similar range to Sonora XP plate), and the dot gain percentage is not much different within this range.
Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.
Recommended Application to Press Procedures of ECOO-G:
  1. Clean all the inks on the blanket
  2. Start the press machine, apply the water roller, run 30-40 seconds
  3. Apply the ink rollers 20-30 seconds
  4. Apply the paper and start print
Remark: If operate step 2 and 3 longer, paper will be wasted less.

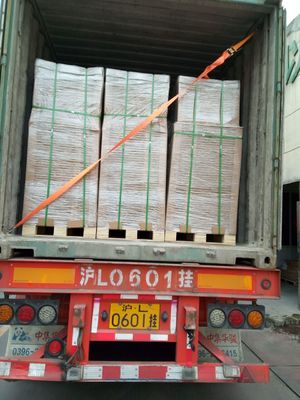

Plate Producing and Packing
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Lifetime Warranty Processless Thermal CTP Printing Plate with Double Layer Coating for Offset Printing 0Lifetime Warranty Processless Thermal CTP Printing Plate with Double Layer Coating for Offset Printing 1Lifetime Warranty Processless Thermal CTP Printing Plate with Double Layer Coating for Offset Printing 2
Our Partners and Customer Feedback
Lifetime Warranty Processless Thermal CTP Printing Plate with Double Layer Coating for Offset Printing 3
Frequently Asked Questions
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city, which is about 1.5 hour by train from Shanghai.
