Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line

1 set
Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line
Features Gallery Product Description Request A Quote
Coverage: Autoloader, Thermal CTP Machine, Bridge, Workflow, Processor, Stacker, Servor
CTP Machine: Automatic Thermal CTP With 64 Diodes
Speed: 28 Pph, 1030*800mm, 2400 Dpi
Computer: Dell With High Setting
Plate Feeding: Automatic Plate Feeding System
Warranty: Lifetime Warranty For The CTP Machine, And 1 Year For Other Supporting Devices
High Light:

Single Cassette Prepress Producing Line


2400 Dpi Prepress Producing Line


Plate Feeding Thermal CTP Machine

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO
Model Number: T800FA FULL LINE
Payment & Shipping Terms
Packaging Details: Standard wooden case
Delivery Time: 25-30 DAYS
Payment Terms: L/C, T/T
Supply Ability: 600 SET PER YEAR
Product Description

Automatic Prepress Producing Line Prepress Best Resolution

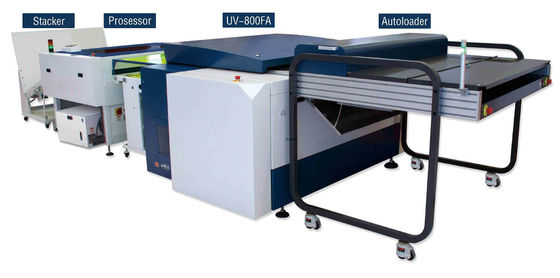

This full prepress producing line includes an autoloader (plate feeding machine), Thermal CTP machine (with quick speed setting), Bridge (conveyor between CTP to Processor), processor, servor (cimputer to install the software and control the system), workflow, stacker (a device to collect the plate after processing). So it is a complete prepress room devices to satisfy the 8 up printing requirements. We have installations in Canada, Chile, Turkey.  You can find details in below:


1. Autoloader, also know as plate feeding machine, single cassette



Model SCU 800
Cassette type Single cassette
Plate feeding speed ≤75 plate/hour
Plate size Max. 1160mm*940mm, Min. 510mm*400mm
Plate thickness 0.15mm-0.3mm
Interface RS485
Plate loading way Manually stack plate in cassette or on loading platform
Plate loading quantity 100 pcs
Net weight 190 kg
Dimension 1617mm*1300mm*1222mm



Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line 0

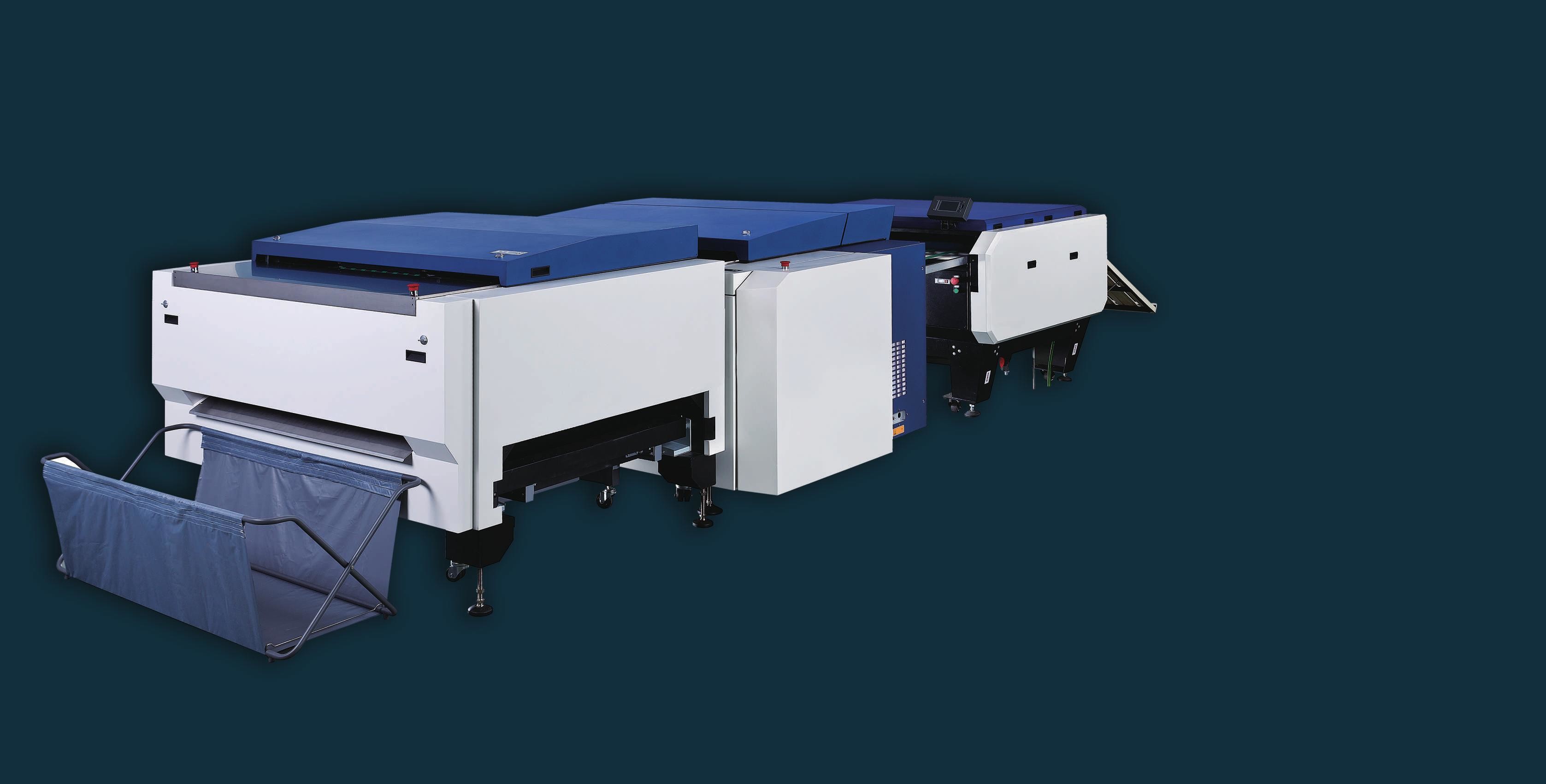

8 up Thermal CTP machine, 64 diodes, 28pph

Model T-800 FA
Exposing Method External Drum
Imaging System 64-channel (Discrete 830 nm laser diode)
Throughput 28 plates per hour (1030mmx800mm 2400dpi)
Plate Size Max.1130mmx920mm,Min.400mmx300mm
Media Type 830nm thermal plate
Plate Thickness 0.15mm to 0.30mm
Resolutions 2400dpi
Repeatability ±5µm (Continuous exposing for four times or above on the same plate with temperature of 23℃ and humidity of 60%)
Interface USB 2.0
Weight 1200 KG
Size (WxDxH) 2127mmx1615mmx1058mm(WxDxH)
Power Supply Single-phase:220AC,+6%,-10%,Power Consumption:4KW
Environment Recommended:20-25℃,Max.15-30℃,humidity:40-70%

Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line 1


Model B 1150
Description Conveyer between CTP and processor
Plate Size Max.1160x940mm, Min.510x440mm
Net Weight 560 KGS
Device Size 1683x1460x1280mm (WxDxH)

Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line 2


Model P-1150
Page Size The max width 1150mm, The min width 280mm
Plate Thickness 0.15mm to 0.40mm
Processing power Speed adjustable (10 to 60 seconds) 400-1000 mm/minutes
Temperature 10 to 45 ℃ can be adjusted ( automatic temperature control, cooling system)
Developing capacity 58 L
Drying temperature 20-65 ℃ can be adjusted
Electricity source 220 V (208V-240V) single-phase 50-60HZ
Work rate 5 KW
Weight 420 KG

Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line 3


Model S 1150
Description Collect the plate after processing from chemistry tank
Plate Size Max.1160x940mm
Net Weight 110 KGS
Device Size 1570x1350x1060mm (WxDxH)


Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line 4



ElecRoc is an easy-to-use, scalable workflow solution designed to meet all the demands of pre-press professionals. It integrates the latest core technologies from Founder Electronics. ElecRoc provides all the functionality required for job management, integrated JDF/PDF creation, preflight, trapping, imposition, PDF color management, 3D preview, EcoInk, Hi-Fi printing, PDF compare, cooperative task management, load balancing, zone screen, CIP4 ink control, advanced screening, color/screen proofing, remote proofing, and output device support. ElecRoc combines automation with process control of the entire workflow in real time. The typical workflow is as following:

Plate Feeding 2400 Dpi Single Cassette Prepress Producing Line 5

Servor (Computer)

Model Dell T130
Description Server to run Founder Elecroc and to connect with T 800Q series
Harddisk 1 TB
Monitor 21”


1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers),positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
