Shaftless Thermal Paper Slitter Rewinder

1 set
Shaftless Thermal Paper Slitter Rewinder
Features Gallery Product Description Request A Quote
Max. Unwinding Width: 1400mm
Max. Unwind Diameter: 1200mm
Max. Rewinding Diameter: 310mm
Min. Slitting Width: 25mm
Max Speed: 210m/min
Weight: 4000 Kgs
High Light:

Shaftless Thermal Paper Slitter Rewinder


210m/Min Thermal Paper Slitter Rewinder


6kw Paper Slitting Rewinding Machine

Basic Infomation
Place of Origin: CHINA
Certification: ISO, CE
Model Number: 1400C
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 30-40days
Supply Ability: 800 set/year
Product Description

Ecoo T 1400c Shaftless Thermal Paper Slitter Rewinder


Multiple Knite thermal paper slitter rewinder, suitable for thermal paper, label and polymer film, wild format
Technical Configurations:

Model Type Ecoo-1400C
Max. Unwinding Width 1400mm
Max. Unwinding Diameter 1200mm
Max. Rewinding Diameter 310mm
Min. Slitting Width 25mm
Max. Machine Speed 210 m/min
Main Power 3.7Kw
Total Power 6kw
Unwinding Shaft Hydraulic Shaftless Unwinder to fix 3'' 6'' core
Rewinding Shaft 0.5'', 1'' or as your request
Weight 4000 kgs
Overall Dimension 3100*2100*1900mm


Related images

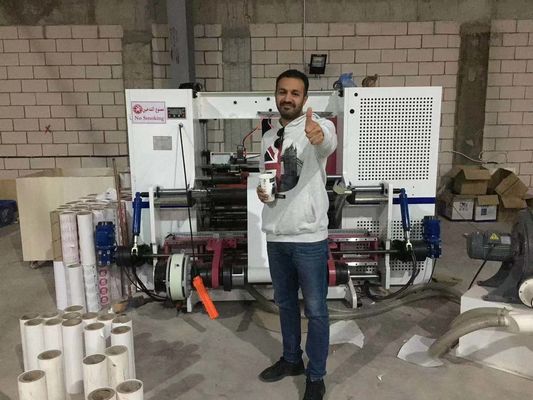

Shaftless Thermal Paper Slitter Rewinder 0

Application Material
All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trademarks, films and so on.


Unwinding Section

Hydraulic Shaftless Unwinder to fix 3'' 6'' core which is easier to loading material

Electromagnetic Brake from Taiwan

Fully automatic tension controller

One set of Photocell to tracking the precision

Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely

Rewinding section

0.5",1" or as your request

Surface Rewinding technology, it adopts vertical method to press the rewinding roll

Electromagnetic Clutch from Taiwan

Surface Rewinding technology

Automatic cutting & gluing unit

Controlling Section

Siemens PLC & HMI from Germany

All the parameters are displayed on the monitor

Low voltage electrical appliances all from Schneider

Trimmed Waste
It adopts air blower to blow waste material off, the air blower power is 0.75kw.
Air blower pipe is more wear-resisting



Safety guard for the slitting device.

Emergency Switches on the 4 corners of machine.

Wrapping Line

1. How long is the lead time?
The lead time is normally 30 days. We can accelerate for emergency cases.

2. How long is the warranty period?
Ecoographix guarantees 1 year of warranty for laser head and spare parts.

3. Is there any certification for your machine?
Yes, all our machines have been certified by SGS and CE.

4. Do you have accompanying consumption products to make an easy purchase for some end users?
Yes, we have qualified postpress machine at most favorable price. In addition,CTP machine, plate, blanket, ink, developer, processors are also in our business range.

5. What is your normal Payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.

6. What are your main products?
Generally, we manage two types of products: prepress equipment and consumables, post-press equipment and consumables. Our category is as below:
1. Prepress machines and consumables, including CTP machine, flexo CTP machine, ink, developer, processor, CTP/CTCP plate and blanket.
2. Postpress equipment, including die cutting machine, automatic punching machine, book binding machine, carton erecting machine, paper cone cup machine, automatic folder gluer.

7. Can you offer some successful installation for reference?
Yes, we achieve great success in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa, etc, with the great assisstance of our dealers. If you have any concern about the quality or service, you can contact them by your own.

8. What about the Installation and after-sales technician support?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
