Digital CTCP Positive Aluminum Plate Double Layer

1000sqm
MOQ
Negotiable
Price
Digital CTCP Positive Aluminum Plate Double Layer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: CTP Plate Making Machine
Material: Stainless Steel
Image Color: Light Blue
Resolution: 1% To 99% @ 200lpi Or 20 Micron Stochastic
Trademark: EcooGraphix
Highlight:

pepress offset printing ctp platesetter

,

thermal ctp plate making machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE, ISO
Model Number: ECOO-CTCP-D
Payment & Shipping Terms
Packaging Details: Standard Exporting Plywood Boxes
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000sqm per year
Product Description

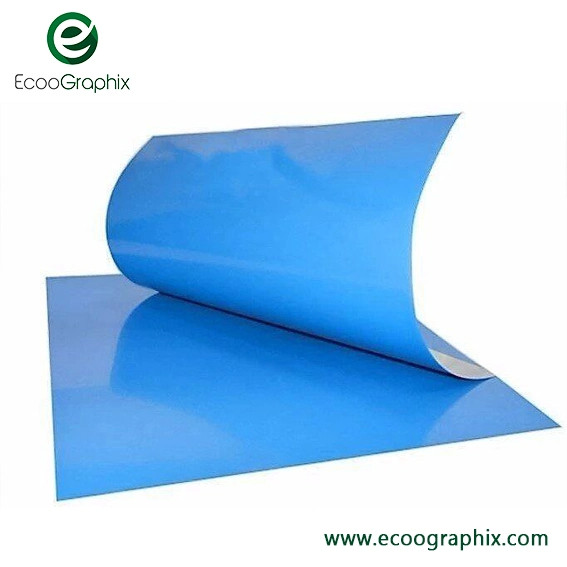

Digital CTP Double Layer Positive Thermal Printing Plate









Application





EcooGraphix Thermal Positive Double Layer CTP plate can be used for high grade commercial and newspaper printing. It can also be used for the UV ink printing with perfect performance.












Specification





Model
ECOO-CTCP-D

Plate Type
Positive Thermal Digital Plate


Application
Commercial, newspaper and package print
ing

Substrate
Electro chemically grained and Anodized lithographic aluminum


Gauge
0.15, 0.20, 0.25, 0.30, 0.40(mm)

Maximum short grain width
Maximum width 1280 mm


Coating

Two-layer system, IR sensitive, positive acting


Length of Run
Unbaked: 200,000 impressions
UV Ink: 50,000 impressions


Plate setters
All thermal CTCP machine

Aluminum
Standard 1050 Alloy


Exposure energy
110 - 130 mj/cm²

Developing time
25 - 30 sec


Spectral Sensitivity
780 - 850 nm

Resolution
1% to 99% @ 200lpi or 20 micron stochastic


Developer
ECOO DV-T Series Developer

Processing temperature
23ºC +/-2ºC


Processing Speed
0.80 - 1.20 m/min

Safelight
Daylight handling


Shelf life
12 months under recommended storage conditions

Packaging
Available in all standard formats, including bulk packaging options such as APL packaging


Storage and handling
Stored in a cool and dry environment, away from excessive cold, heat and humidity

Model ECOO-CTCP-D
Plate Type No preheat, positive working, UV sensitive digital plate with excellent chemical and press durability; no need baking for UV ink printing
Application Commercial, newspaper and packaging print applications
Aluminum Electrochemically grained and anodized aluminum substrate
Coating Two-layer system , positive acting
Gauge 0.15-0.40mm
Length of run 200,000 impressions unbaked; 70,000 impressions for UV ink applications; 1,000,000 plus impressions baked (depend on image resolution, press, press chemical, ink and paper conditions)
Plate setters EcooGraphix, Amsky, Luscher, Basysprint, Cron,
Exposure energy 45-65 mj/cm2 (depend on imager type, configuration and resolution)
Spectral Sensitivity 405 nm
Resolution 1% to 99% @ 200lpi or 20 micron stochastic (depend on capability of imaging device)
Image color Light blue
Processor All the kind brands
Developer Dynamic supplement 80-120ml/m2 Static supplement 100-120ml/h
Processing temperature 23±1℃
Developing time 25±5s
Processing Speed 0.80-1.20 m/min
Safelight Handle under yellow safelight
Shelf life 18 months, with original sealed package, stored in a cool and dry environment, away from sunlight
Packaging Available in all standard formats, including bulk packaging options, such as APL packaging
Storage and handling Stored in a cool and dry environment, away from excessive cold, heat.









Characteristic





Digital CTCP Positive Aluminum Plate Double Layer 0



Benefits

- Extensive adaptability, saving from waste during possible swift of consumables' supplying

- Quick turn around time on press

- Compatible with common developers

- Premium quality of dot reproduction and super long run length

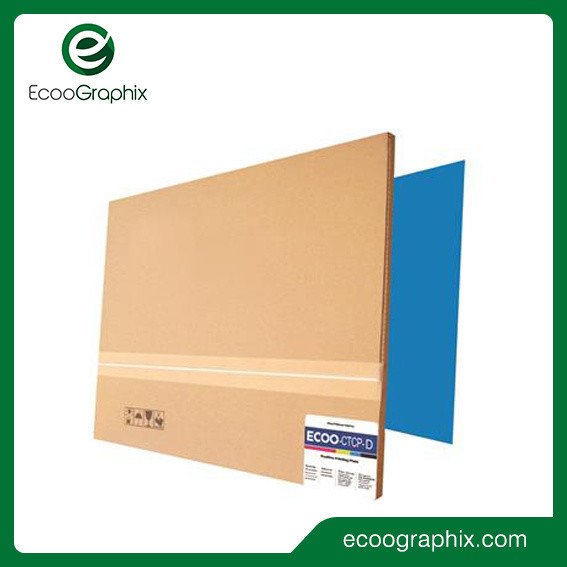

Producing And Packaging





From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Digital CTCP Positive Aluminum Plate Double Layer 1



Digital CTCP Positive Aluminum Plate Double Layer 2



Digital CTCP Positive Aluminum Plate Double Layer 3





Digital CTCP Positive Aluminum Plate Double Layer 4



Digital CTCP Positive Aluminum Plate Double Layer 5

Digital CTCP Positive Aluminum Plate Double Layer 6







Certificates





Digital CTCP Positive Aluminum Plate Double Layer 7



Digital CTCP Positive Aluminum Plate Double Layer 8








FAQ



Q1: Can I get the sample ?


A: We are very glad to provide some sample for you to test. We usually provide 5-15 pieces plates for free, but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight ?


A: The air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the pick-up service from your local agent.

Q3: How long can the sample be ready ?


A: It usually takes about 3 days to prepare the sample.

Q4: Can I visit your factory ?


A: You are warmly welcome to visit our factory! Our company is in Hangzhou city, which is about 1.5 hours by train from Shanghai.

Q5: How many square meters CTP plates can feed one 20' container ?


A: About 20000-25000sqm.

Q6: Can I take my own brand and label on the packing ?


A: Yes, we can provide the OEM with the customer's brand and label.
