0.30mm Aluminum Thermal CTP Offset Printing Plates

0.30mm Aluminum Thermal CTP Offset Printing Plates
Features Gallery Product Description Request A Quote
Normal Sizes: 1030x800x0.30mm;x745x605x0.3mm
Spectral Sensitivity: 830nm
Thickness: 0.15-0.40mm
Plate Type: Positive Thermal CTP Printing Plate
Plate Color: Blue
Application: Offset Advertising Or Newspaper Printing
High Light:

0.3mm aluminium offset printing plates


offset printing ctp thermal plate

Basic Infomation
Place of Origin: CHINA
Certification: ISO,SGS
Model Number: Ecoo-ED
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: Within 30days
Payment Terms: L/C, T/T
Supply Ability: 500,000SQM
Product Description

0.30mm Aluminum Thermal CTP Offset Printing Plate for Advertising Newspaper

High sensitivity,stable performance

1. Application

EcooGraphix Thermal CTP Plate(Double Layer ) ECOO-ED is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good ink balance and high press run length.



2. Characteristic

1) High quality aluminum, composite grain and high press runs.

2) Capable of bright room operation.

3) High resolution and precise half tone dot reproduction.

4) High development tolerance level and convenient operation.



3. Specification

Plate Type Positive Thermal CTP Plate
Application High grade commercial and newspaper offset printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Single-layer coating, IR sensitive
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1325 mm
Plate intermix

Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword

Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak PP3 positive plates, Agfa Energy Elite, etc.

Length of Run Unbaked: 80000 to 100,000 impressions
  Baked: Over 100000 impressions



Plate setters Kodak Trendsetter/Lotem/Magnus; Fuji Javelin T9000HS; Heidelberg Topsetter/Suprasetter; Screen PT-R; Creo Scitex , or EcooGraphix thermal CTP T series
Exposure energy 90 - 120 mj /cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm
Resolution 1-99% at 300 LPI
FM capability 20 micron stochastic
Image color Blue
Processor All Brands.
Developer Kodak Gold Star or Ecoo developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 – 1.20 m/min
Storage and handling Daylight handling
Safe Light
Shelf Life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handling stored in a cool and dry environment, away from excessive cold, heat and humidity.


Recommended Image Data


CTP model




LOTTEM 400(TH1.7) MAGNUS 400 Screen 8600S
Laser power 13-15W 270-280mw 17-19W 70-80 %
Drum speed 250-300rpm 850-900rpm 400-450rpm 800-900rpm
Resolution Customized Customized Customized Customized
Parameter that need set up










* Note: Higher exposure energy will make the image contrast more clear, and benefit to the plate run length; while over high/low exposure energy will affect the image quality negatively.


0.30mm Aluminum Thermal CTP Offset Printing Plates 0

0.30mm Aluminum Thermal CTP Offset Printing Plates 1

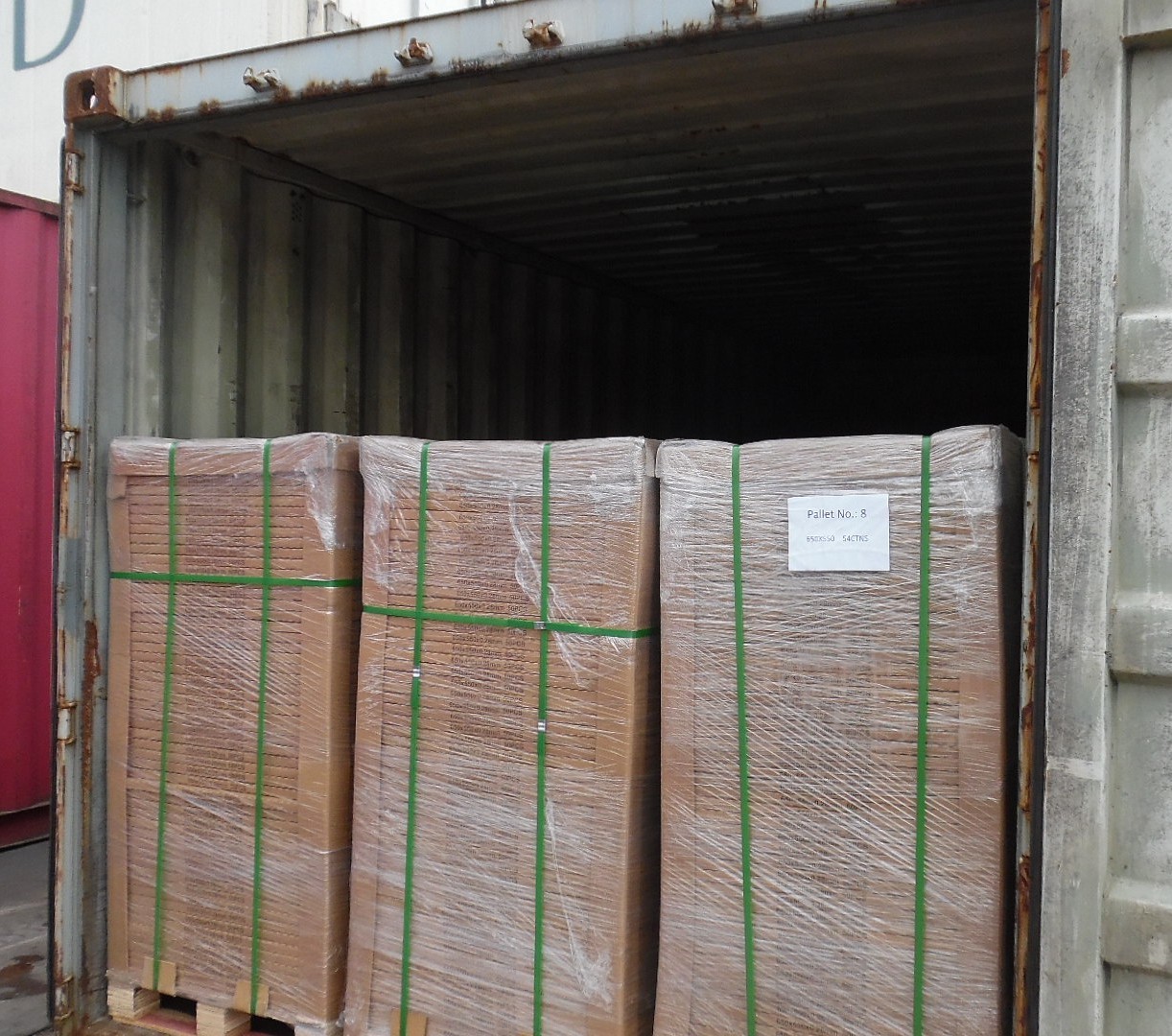

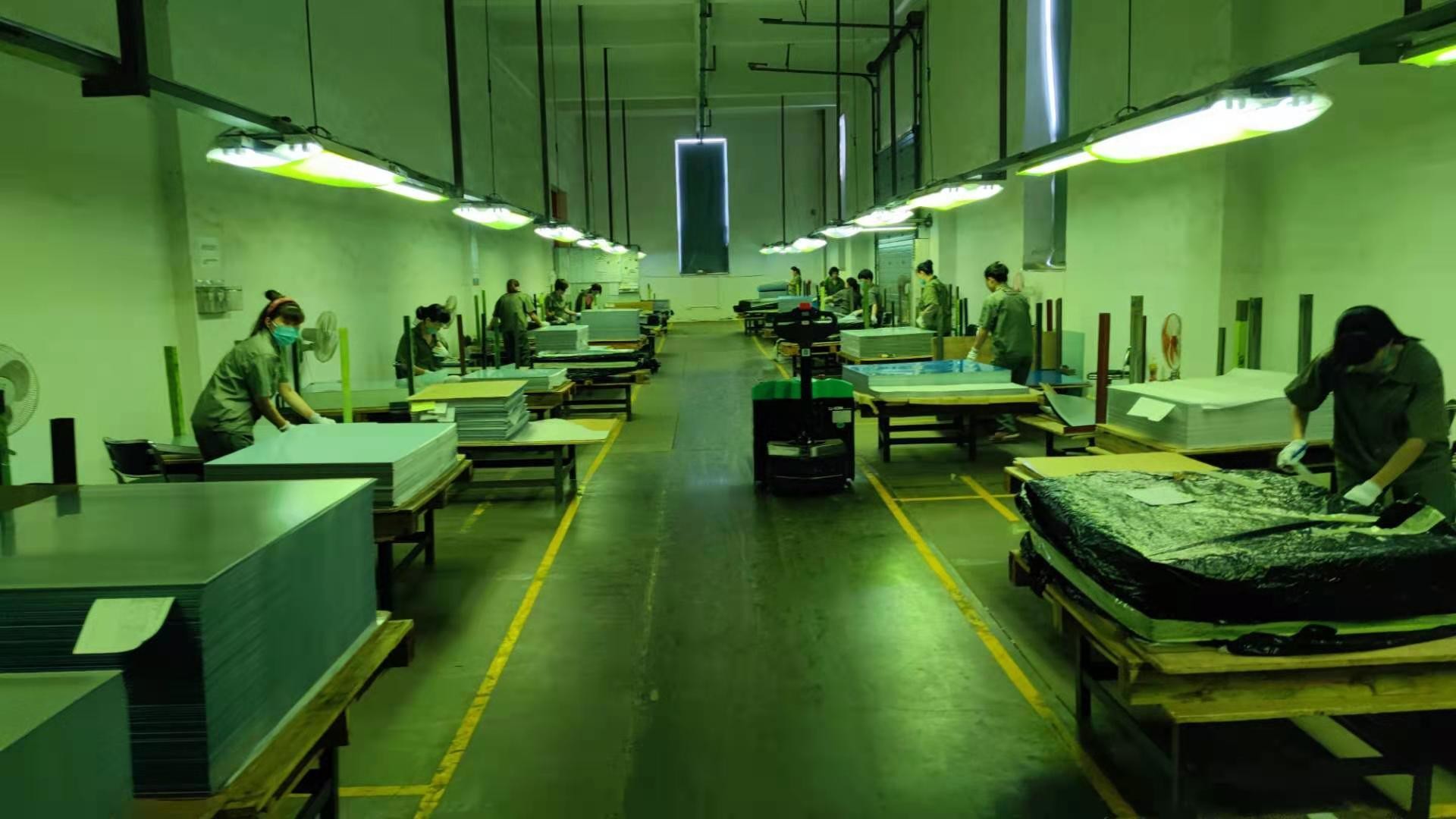

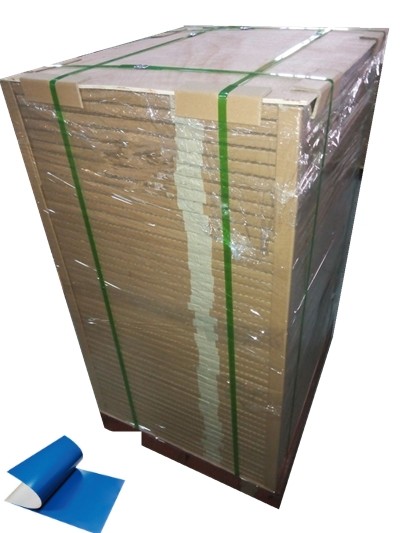

4. Plate Producing and Packing

From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .

0.30mm Aluminum Thermal CTP Offset Printing Plates 2

0.30mm Aluminum Thermal CTP Offset Printing Plates 3


5.Our Partner and Customers

0.30mm Aluminum Thermal CTP Offset Printing Plates 4


0.30mm Aluminum Thermal CTP Offset Printing Plates 5

6. About our company


EcooGraphix is a leading and professional Supplier for Prepress Solution ,  Printing Materials and  Post Packing Equipment.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.

Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.

You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.


Q1: Can I get the sample?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?

A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?

A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?

A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
