70Mj/Cm2 Aluminum Single Layer Ctcp Printing Plates

10000 sqm
70Mj/Cm2 Aluminum Single Layer Ctcp Printing Plates
Features Gallery Product Description Request A Quote
Material: Aluminum
Type: CTCP Plate
Style: Positive
Transport Package: Export Standard Packaging
Specification: Gauge: 0.15mm; 0.30mm
Long Impression: 100,000Unbaked; 1,000,000Baked
Exposure Energy: 50 - 70 Mj/Cm2
Spectral Sensitivity: 410nm
Resolution: 2% - 99% @400 Lpi
Coating: Blue
High Light:

Single Layer Ctcp Printing Plates


Aluminum Ctcp Printing Plates


Positive CTCP Plate

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE
Model Number: ECOO-CTCP-ES
Payment & Shipping Terms

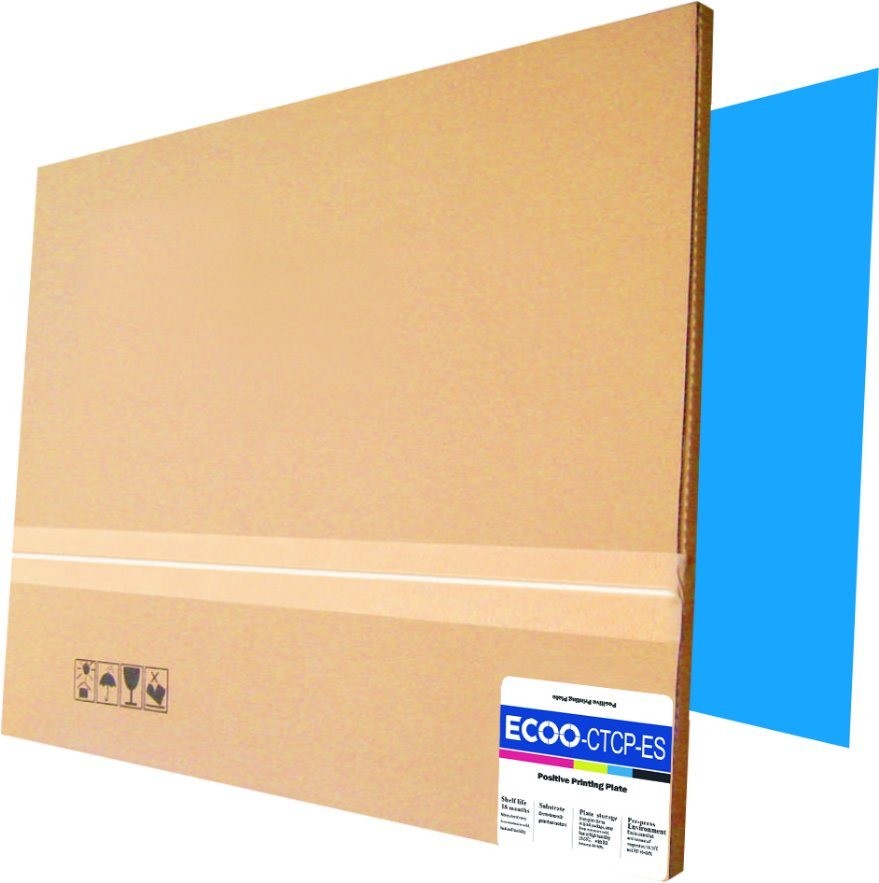

Packaging Details: Export Standard Packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000000000sqm per year
Product Description

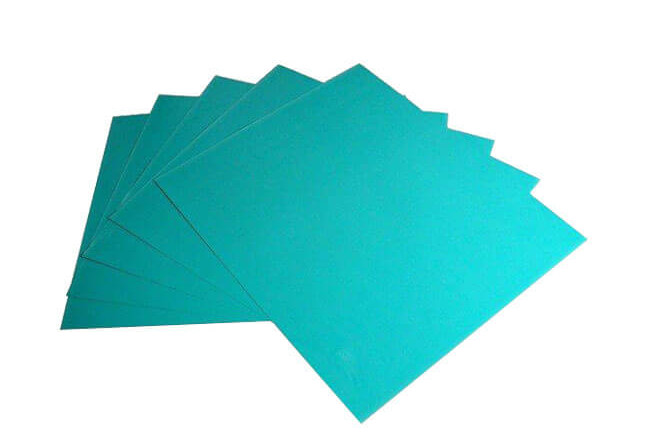

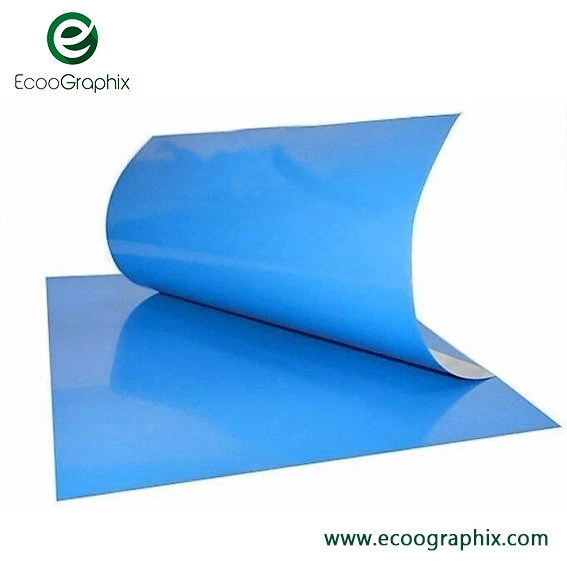

Single Layer Ctcp Plate for Offset UV Ink Printing
EcooGraphix CTCP Plate can be used for long runs high grade commercial and newspaper printing. Unique production technology and high quality raw materials make the plate gain high photosensitive speed, good half-tone dot reproduction and stable performance.
1)High quality Aluminum and photosensitive coating.
2) Multi layer composite grain structure.
3)Precise half-tone dot reproduction.
4)High development tolerance level and convenient operation.

Plate TypePositive CTCP Plate
ApplicationHigh grade commercial and newspaper printing
SubstrateElectro chemically Grained and Anodized lithographic Aluminum
CoatingSingle-layer system ,IR sensitive, positive acting
Gauge0.15, 0.30 (mm)
Maximum short grain widthMaximum width 1280mm
Length of run

Unbaked: 80,000 to 100,000 impressions
Baked: Over 100,000 impressions

Plate settersMajor brands of CTCP platesetters
Exposure energy50-70 mj/cm²
Spectral Sensitivity 400-430 nm - UV Laser
Resolution 2-99% at 200 LPI
Photosensitive Wave Length405nm
Image colorBlue
ProcessorMajor brands of processors
Developer EcooGraphix or other major brand developer
Processing temperature23℃ +/- 2℃
Developing time25-30 sec
Processing Speed 0.80-1.20 m/min
SafelightHandle under yellow safelight (UV free)
Shelf life12 months under recommended storage conditions

Available in all standard formats, including bulk
packaging options, such as APL packaging

Storage and handling

Stored in a cool and dry environment,
away from excessive cold, heat and humidity



1.What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ), and Post Press Packing equipment ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates ,inks , printing blankets ,Plate dot densimeter ) .
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the Pre-press and Post Press equipment and consumables all in one and no worry about the after-sales service from our company.
2.Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3.What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4.What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5.Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6.What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
If you have any interests for EcooGraphix products or cooperation, please feel free to contact us.
