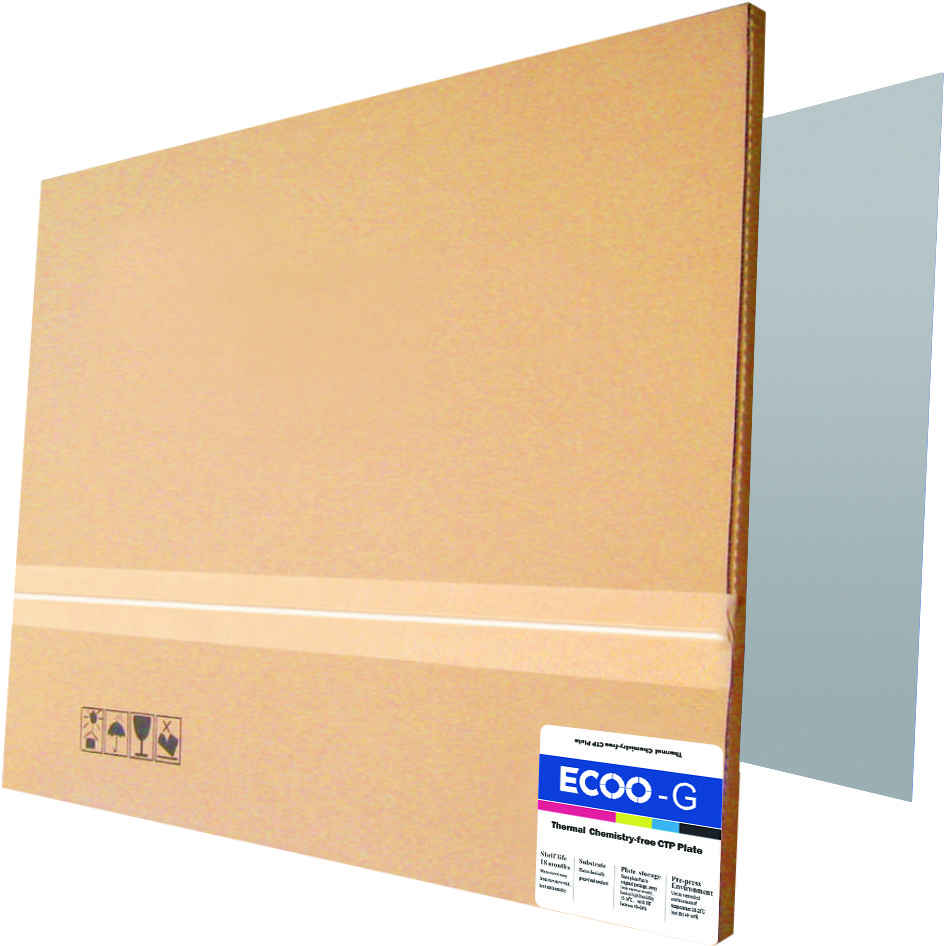

Name: 0.30mm Gauge CTP Printing Plates Negative Processless
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-G
Price: 34.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminum

Type: CTP Plate

Style: Negative

Transport Package: Export Standard Packaging

Specification: Gauge: 0.15mm; 0.30mm

Long Impression: 400,000Unbaked； 1,000,000Baked

Exposure Energy: 130 - 150 Mj/Cm2

Spectral Sensitivity: 830nm

Resolution: 1% - 99% @400 Lpi

Coating: Light Gray

Highlight:

Processless Ctp Printing Plate

Negative Ctp Printing Plate

830nm CTP Offset Printing Plates

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: CE

Model Number: ECOO-G

Payment & Shipping Terms

Packaging Details: Export Standard Packaging

Delivery Time: 30 DAYS

Payment Terms: T/T

Supply Ability: 100000000000sqm per year

Gallery

0.30mm Gauge CTP Printing Plates Negative Processless

Product Description

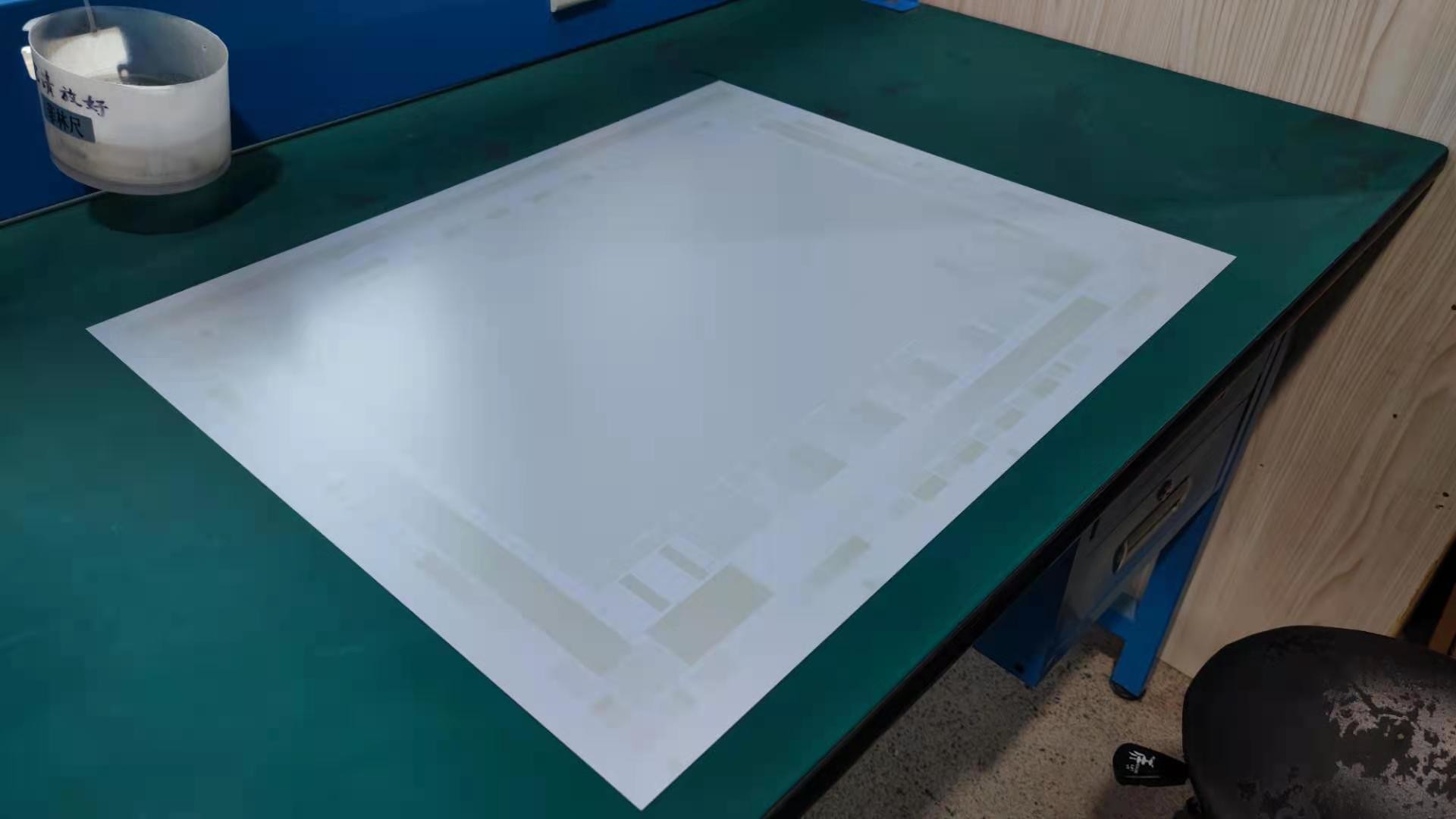

Negative Processless CTP Printing Plates

ECOO-G thermal plate (developed on press) environmental-friendly processless printing plate.
-Run on press machine directly after CTP exposing, no need for chemistry processing
-Saves the cost of labor, water treatment, and developer tank

Our ECOO-G Plate is the same as Sonora XP and Agfa Azura!

1. INTRODUCTION OF ECOO-G
-Run length: 100,000 impressions
-Suitable for sheet-fed offset press or high-speed rotary offset press
-Suitable for different types of traditional inks and fountain solutions, including alcohol substitutes as fountain solutions
-Unsuitable to improve run length by baking plates

2. CHARACTERISTICS OF ECOO-G

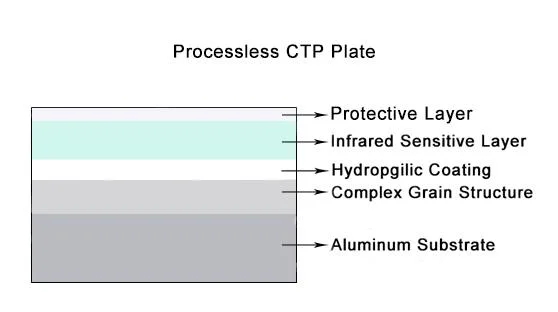

-Negative non-ablation photosensitive system

-Compatible with the dominant devices in the market
-Can be printed directly on the machine without any processing steps after scanning by thermal CTP platesetter

-Good dot reproduction, stable performance, wide processing latitude

-Long stability of the latent image, which can be stored at least a week after plate-making

-High-quality aluminum substrate, professional coating formulation

3. RECOMMENDED APPLICATION TO PRESS PROCEDURES OF ECOO-G

1. Clean all the inks on the blanket;
2. Start the press machine, apply the water roller, run 30-40 seconds;

3. Apply the ink rollers 20-30 seconds;

4. Apply the paper and start print.

Remark: If steps 2 and 3 are extended, the paper will be wasted less.

Model	ECOO-G
Plate Type	thermal-negative type
Application	High-grade commercial and newspaper printing
Substrate	Electrolyte graining and Anodized AL substrate
Thickness	0.15mm / 0.30mm
Maximum short grain width	Maximum width 1280 mm
Spectrum scope	800-850 nm
Photosensitive wavelength	830 nm
Platesetter	Various dominant thermal platesetters in the market
Coating color	Grey
Low-energy imaging	130-150 mj/ m²
The period of latent image stabilization	≤7 days
Recommended screen method	1-99% @200 LPI AM or 20μm FM or mixture
The paper number of start-up	<50 sheets
Safety light	4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.
Processing	Without processing, directly on press
Run Length	100,000 impressions Actual run length depends on printing conditions

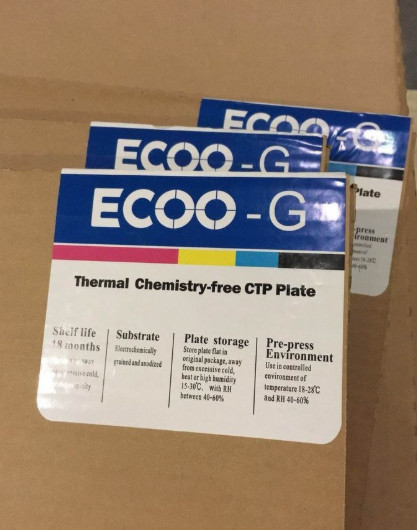

Shelf life	12 months under recommended condition
Transportation	Packed in seal and stored by means of prevention from light, moisture, overheat,ing and high humidity
Storage	Recommended condition: 18℃-24℃, 40%-50% RH.

Comparing With The Plate Of Kodak Sonora XP

Features	ECOO-G	Kodak Sonora XP
Sensitive wavelength(nm)	800-850	800-850
Coating color	Light green	Light green
Sensitivity (mj/cm2 )	150	150
Exposure in safe light	White light 1 hour; yellow light 24 hours	White light 1 hour; yellow light 24 hours
After image contrast	Can be spotted by eyes, but auto punching machine cannot recognize it	Can be spotted by eyes, but auto punching machine cannot recognize it
Imaging device	Normal thermal CTP device 1-99% @ 200lpi	Normal thermal CTP device 1-99% @ 200lpi
Resolution	1-99% @ 200lpi (dependent on CTP capability)	1-99% @ 200lpi (dependent on CTP capability)
Run-length	100,000	100,000
Storage	12 months (under recommended environment)	12 months (under recommended environment)

Applied Parameters in Imaging Device

Data	Kodak trendsetters	LOTTE 400(TH1.7)	MAGNUS 400	Screen 8600S
Laser power	15- 17W	300-320mw	19.5-21.5W	80-90 %
Drum speed	250-300rpm	850-900rpm	400-450rpm	800-900rpm
Resolution	Customized	Customized	Customized	Customized
Parameter that	Focus/	Focus/	Focus/	Focus/
need set up	Zoom	Zoom	Zoom	Zoom
