1.20m/Min Aluminum Positive CTP Offset Printing Plates

1000 sqm
1.20m/Min Aluminum Positive CTP Offset Printing Plates
Features Gallery Product Description Request A Quote
Material: Aluminum
Type: CTP Plate
Style: Positive
Transport Package: Export Standard Packaging
Specification: Gauge: 0.15mm; 0.30mm
Long Impression: 400,000Unbaked; 1,000,000Baked
Exposure Energy: 120 - 150 Mj/Cm2
Spectral Sensitivity: 780-850nm
Resolution: 1% - 99% @400 Lpi
Coating: Blue
High Light:

Positive CTP Offset Printing Plates


Aluminum CTP Offset Printing Plates


Solvent Resistance CTP Plates

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: CE, ISO
Model Number: ECOO-TSR
Payment & Shipping Terms
Packaging Details: Export Standard Packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000000 sqm per year
Product Description

EcooGraphix Thermal Solvent Resistance CTP plate


EcooGraphix Thermal Solvent Resistance CTP plate can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with perfect performance.




- Positive writing thermal plate

- Double layers system

- Made with high grade aluminum base

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 150,000 impressions

- UV Ink up to 80,000 impressions

- Ability to print both AM and FM screening



- Extensive adaptability, saving from waste during possible swift of consumables’ supplying

-Quick turn around time on press

-compatible with common developers

-premium quality of dot reproduction and super long run length


Plate Type Positive Thermal Digital Plate
Application Commercial, newspaper and packaging print
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Gauge 0.15, 0.30mm
Maximum short grain width Maximum width 1280 mm
Coating Blue
Length of Run

Unbaked: 400,000 impressions

UV Ink :100,000 impressions

Plate setters All thermal CTP machine
Aluminum Standard 1050 Alloy
Exposure energy 120 – 150 mj/ m²
Developing time 25-30 sec
Spectral Sensitivity 780 – 850 nm
Resolution 1-99% @ 400LPI
Developer Ecoo DV-T Series Developer
Processing temperature 23℃+/-2℃
Processing Speed 0.80 – 1.20 m/min
safelight Daylight handling
Shelf life 12 months under recommended storage conditions
Packaging Available in all standard formats, including bulk packaging options such as APL packaging
Storage and handing Stored in a cool and dry environment, away from excessive cold, heat and humidity

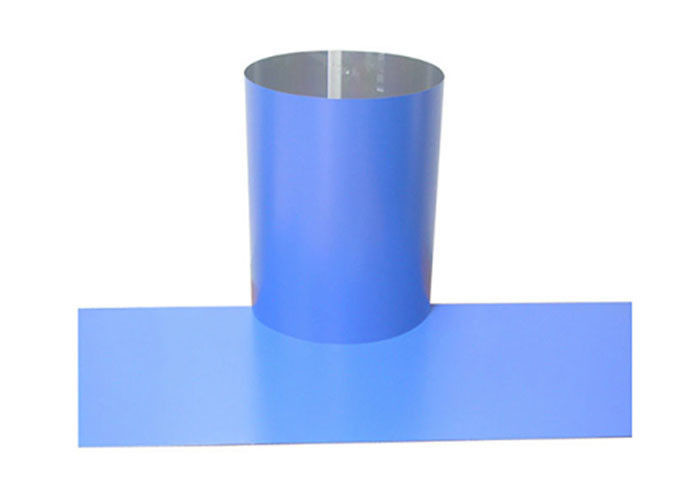

1.20m/Min Aluminum Positive CTP Offset Printing Plates 0


4.Our clients:​​

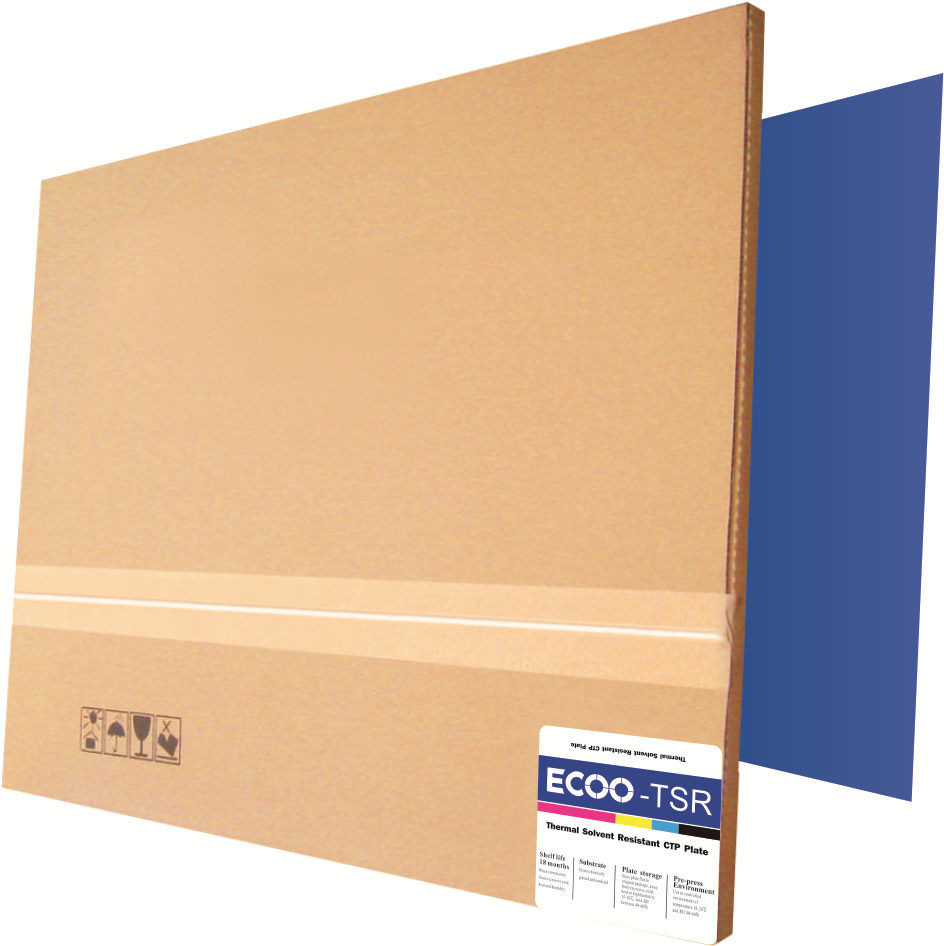

1.20m/Min Aluminum Positive CTP Offset Printing Plates 1

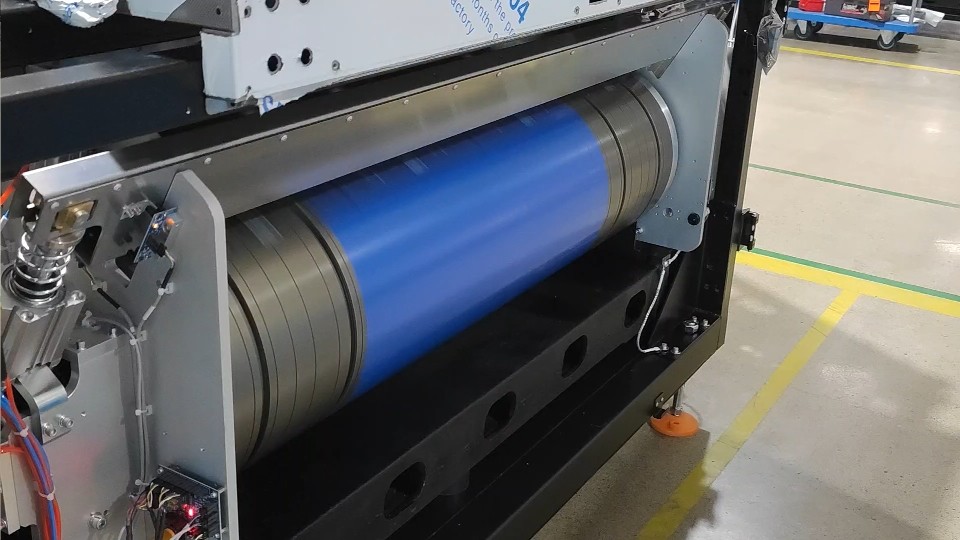

1.20m/Min Aluminum Positive CTP Offset Printing Plates 2



1.What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ), and Post Press Packing equipment ( Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates ,inks , printing blankets ,Plate dot densimeter ) .
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the Pre-press and Post Press equipment and consumables all in one and no worry about the after-sales service from our company.
2.Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3.What is your warranty for the CTPs ?
Two years' Laser Head and main spare parts for the CTPs, One year for the Processor.
4.What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
5.Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6.What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.


If you have any interests for EcooGraphix products or cooperation, please feel free to contact us.
Rina Lou
HangZhou EcooGraphix Digital Technology Co.,LTD
International Sales

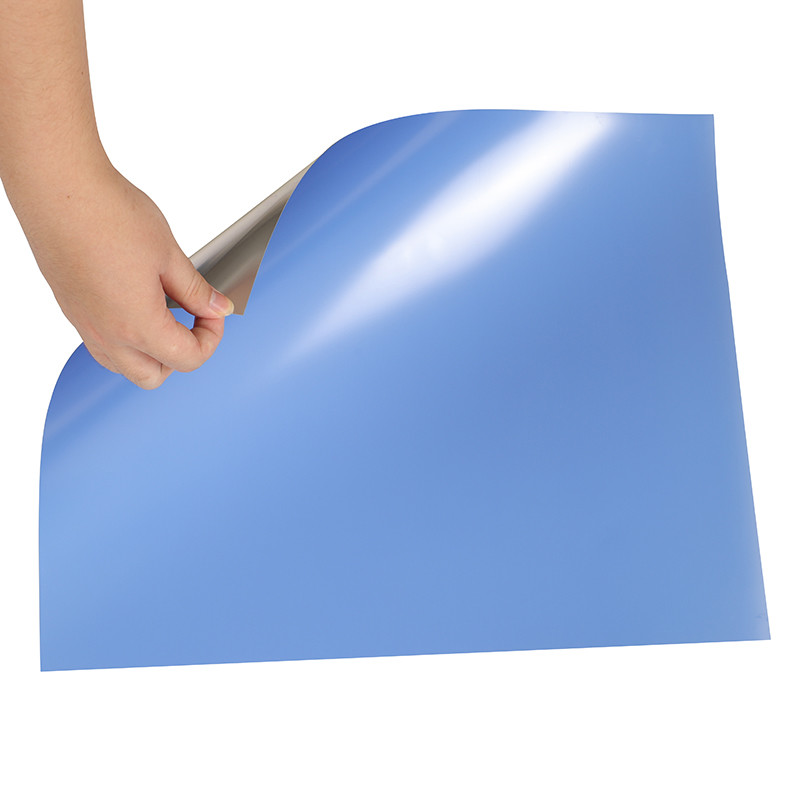

1.20m/Min Aluminum Positive CTP Offset Printing Plates 3
