Long Runlength Offset UV Ink Printing Thermal CTP Plate

1SQM
MOQ
Negotiable
Price

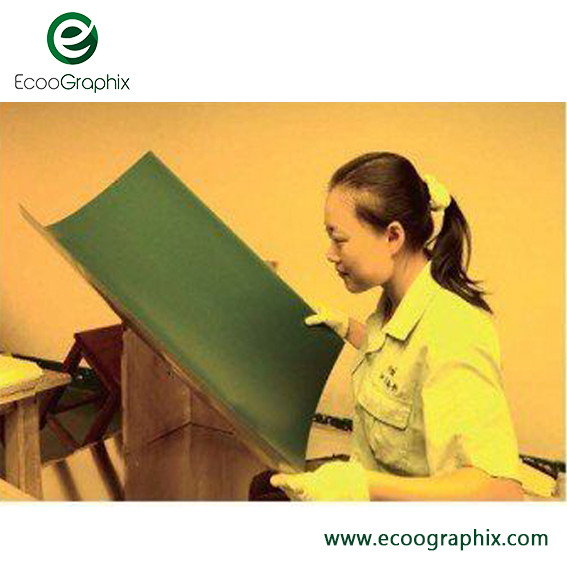

Long Runlength Offset UV Ink Printing Thermal CTP Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Normal Sizes: 1030x800x0.30mm;510x400x0.15mm
Plate Color: Blue
Thickness: 0.15-0.40mm
Plate Type: Double Layer Positive Thermal CTP Plate
Spectral Sensitivity: 830nm
Application: UV Ink Commercial Or Newspaper Printing
High Light:

long runlength ctp thermal plate

,

uv ink printing ctp plate

Basic Infomation
Place of Origin: CHINA
Brand Name: ECOOGRAPHIX
Certification: ISO
Model Number: Ecoo-ED
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: Within 30days
Payment Terms: L/C, T/T
Supply Ability: 500,000SQM
Product Description

Double Coating Thermal CTP Plate Long Runlength Offset UV Ink Printing Plate

Long Runlength,UV ink compatible


1. Application

EcooGraphix Double Layer Therrmal CTP Plate ECOO-ED can be used for long runs high grade commercial and newspaper printing. It can also be used for the UV ink printing with good performance.



2. Characteristic

Features

- Positive writing thermal plate

- Double layers system

- Made with high grade aluminum from Europe

- Wide adaptability for different plate setter brands

- Non-ablative coating

- Run lengths up to 100,000 impressions

- UV Ink up to 50,000 impressions

- Ability to print both AM and FM screening



Advantages

- Resist UV-ink; workable with both normal ink and UV ink

- Mature product, good stability and wide processing latitude

- Long run length with non-ablative coating

- Being adaptive to most of platesetters, processors and solutions.



3. Specification



General Information
Plate Model ECOO-ED
Plate Type Thermal UV-CTP Plate(Double Layer)
Application High grade commercial and newspaper printing
Substrate Electro chemically Grained and Anodized lithographic Aluminum
Aluminum alloy Standard 1050 Alloy
Coating Two-layer system, IR sensitive, positive acting
Gauge 0.15,0.20, 0.25,0.30, 0.40 (mm)
Maximum short grain width Maximum width 1280 mm
Plate intermix Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates,
Kodak PP3 positive plates, Agfa Energy Elite, etc.
Length of Run

Ordinary Ink: 100,000 to 200,000 impressions

UV Ink : 50,000 to 100,000 impressions

Exposing
CTP Plate Making Machine Plate setters Kodak: Trendsetter/Lotem/Magnus; Fuji : Javelin T9000HS
Heidelberg : Top setter/Supra setter; Luscher : Xpose Plate setter
Screen : PT-R,Creo : Scitex
EcooGraphix Thermal CTP Tseries
Exposure energy 110 - 130 mJ/cm²
Spectral Sensitivity 800-850 nm – Peaks 830nm
Resolution 1-99% at 200 LPI
FM capability 20 micron stochastic
Image color Blue Green to Pale Green
Developing
Processor All the kind Brands.
Developer Kodak Gold Star or our own developer
Processing temperature 23°C +/- 2°C
Developing time 25 - 30 sec
Processing Speed 0.80 – 1.20 m/min
Storage and handling
Safelight Daylight handling
Shelf Life 12 months under recommended storage conditions
Packaging

Available in all standard formats, including bulk packaging options

such as APL packaging

Storage and handling

Stored in a cool and dry environment, away from excessive cold,

heat and humidity.









Long Runlength Offset UV Ink Printing Thermal CTP Plate 0



4. Plate Producing and Packing

From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers .

Long Runlength Offset UV Ink Printing Thermal CTP Plate 1

Long Runlength Offset UV Ink Printing Thermal CTP Plate 2



5. Our Partner and Customers

Long Runlength Offset UV Ink Printing Thermal CTP Plate 3



Long Runlength Offset UV Ink Printing Thermal CTP Plate 4


6. About our company



EcooGraphix is a leading and professional Supplier for Prepress Solution ,  Printing Materials and  Post Packing Equipment.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.


Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.

You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.




Q1: Can I get the sample?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?

A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?

A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?

A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
