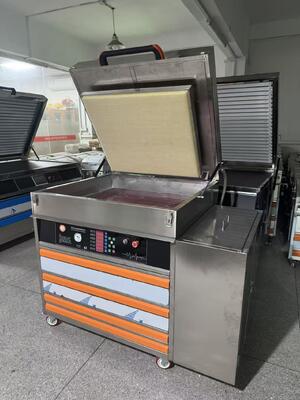

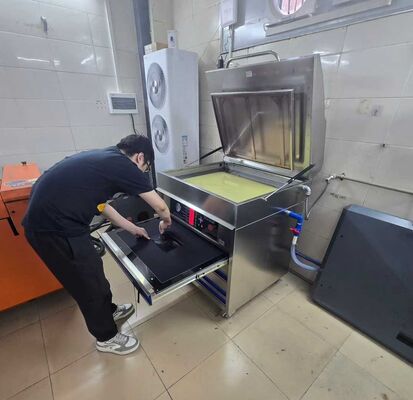

Water Washable Flexo Polymer Printing Plate Processor AIO with 800-1550mm Max Plate Size and 220V Power Supply

Water Washable Flexo Polymer Printing Plate Processor AIO

Ecoo-FP800 is the flexographic plate washing and drying integrated machine (also known as a water-washing flexographic plate making integrated AIO machine) is a highly efficient and professional piece of equipment that integrates multiple flexographic plate making processes such as exposure, washing (plate washing), drying, and de-tacking into one unit.

It is mainly used for the production of environmentally friendly washable flexographic resin plates for flexographic printing (such as packaging printing on cartons, labels, plastic films, non-woven fabrics, etc.)

Characteristics

• All-in-one integration: Completes plate exposure, washing away unexposed polymer resin, hot air drying, and surface de-sticking in one machine, saving space and labor.
• Precise control: Utilizes microcomputer or touch panel control, allowing precise setting of washing time, drying temperature, and circulating hot air time.
• High efficiency and stability: Equipped with a powerful vacuum extraction and uniform light source system, ensuring accurate image reproduction, clear dots, and rapid, clean plate washing.
• Fully automatic plate washing mechanism: automatic forward and reverse plate washing mode. Washout water circulation with filter ; auto constant temperature heating system for the water tank.

Specifications:

1. Maximum plate making size: 800X1200 mm
2. Plate thickness: 1-3mm
3. Light : UVA lamp, wavelength 350-450nm
4. Input power: 6.5KW; Power supply: 220V , 50HZ/60HZ
5. Machine volume: 185X155X135cm (Width X Length X Height)
6. Machine weight: 650KG

Machine Technology:

1. The excellent overall design ensures the development effect, clear outlets, stable product performance and strong reliability.
2. The development temperature and development time are precisely controlled to meet the washing requirements of various plates and potions, and the application range is wide.
3. The water-saving effect is remarkable. The precise control of the washing time and the scientific design of the spraying method can save 80% of water.
4. Significant energy saving in drying, uniform layout temperature (30% energy saving for peers)
5. Intelligent replenishment system of developer solution to ensure the development effect and reduce waste.
6. The scientific design of the power, filtration and piping layout of the development cycle can effectively inhibit crystallization.
7. Low liquid level alarm, drying and over-temperature self-protection function, safe and reliable.
8. Touch screen man-machine interface, intuitive and easy to understand, makes the operation more convenient.
9. The accessories such as rubber roller and brush are easy to fold in half, and have the function of position memory, easy maintenance.

FAQ:

1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.
You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs ?
Three years' Laser Head and main spare parts for the CTP machine, One year for the CTP Processor.

4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
